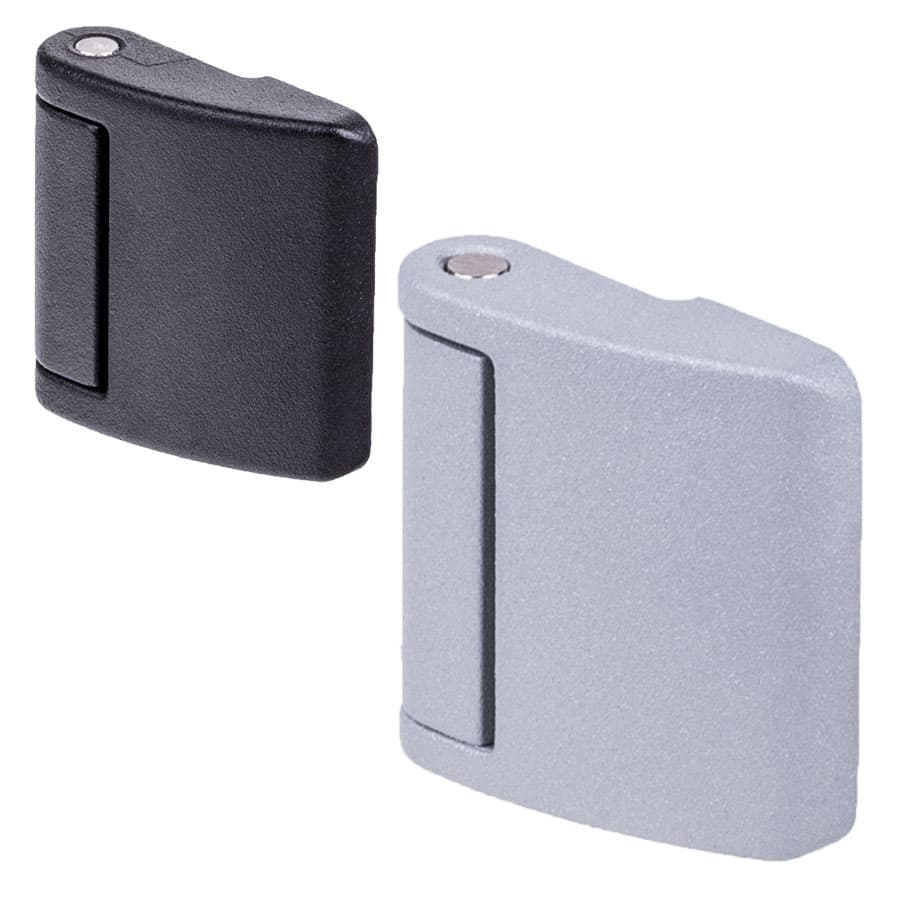

Hinge M138 Zinc die casting, plastic coated black, 40x42mm
Manufacturer part no. 67700221
$13.04≈ 11.32 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €11.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.26 |
| Total delivered | €31.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
| Dimensions | 40x42mm |
Other characteristics
| Length | 40 mm |
| Max axial force | 1 000 N |
| Max radial force at opening angle 90 | 4 000 N |
| Total height | 14 mm |
| Width | 42 mm |
| Color | Black |
| Inner thread size | M 5 mm |
| Material | Zinc die-cast |
| Surface | Plastic coated, matt finish |
Description

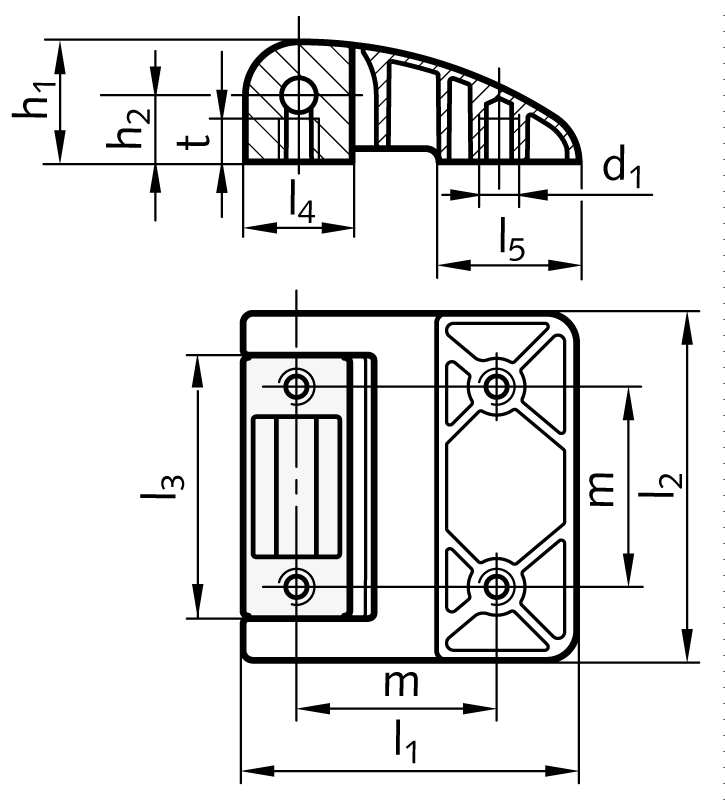

Material: Zinc die-cast, plastic-coated, matt textured finish, black RAL 9005 or silver RAL 9006. Pin: Stainless steel 1.4305. Non-detachable hinge for tamper proof mounting from the rear. Well-designed, with stylish appearance. The dimensions l1 / l2 and bore distances m comply with the current hinges M237 / M237.1 and can replace these. * Pin diameter. 1) Max. axial force. 2) Max. Radial force at opening angle 90°. These are non-binding guide values without any liability.
