MÄDLERMÄDLER· Fastening Elements

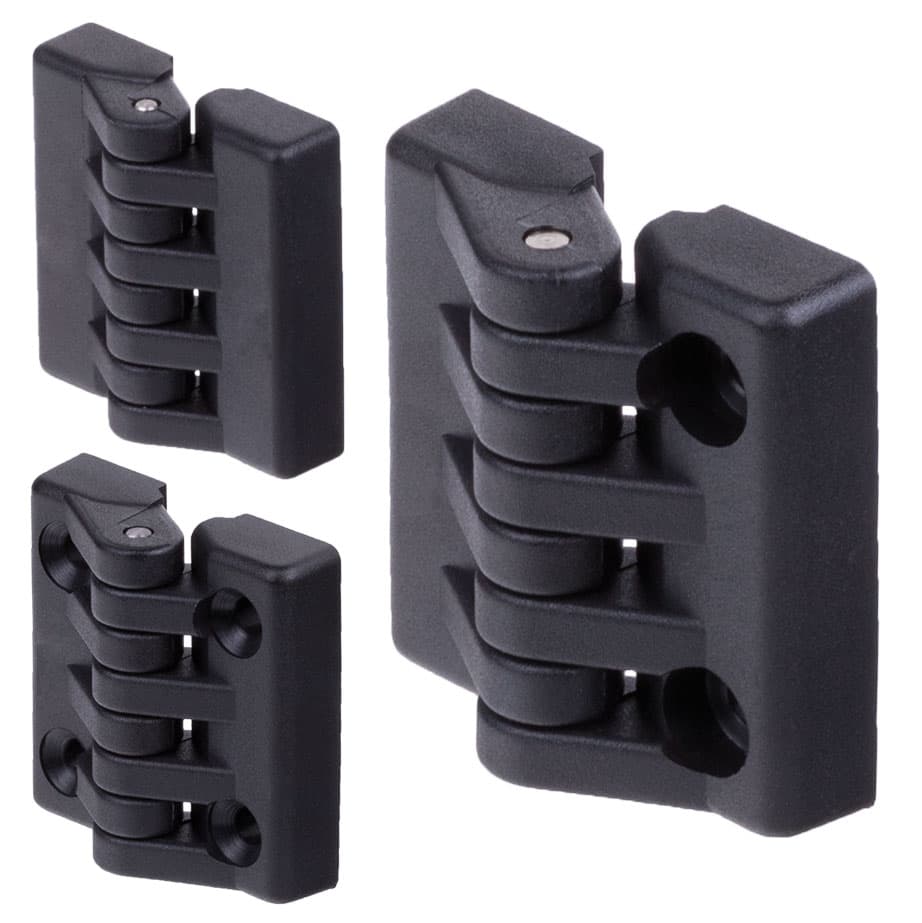

Hinge M151 plastic, type A, 48x49mm
Manufacturer part no. 67700242
$15.11≈ 13.12 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €13.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.62 |
| Total delivered | €33.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 39 g |
| Dimensions | 48x49mm |
Other characteristics
| Length | 48 mm |
| Max axial force | 400 N |
| Max radial force at opening angle 90 | 170 N |
| Tightening torque for thread d1 | 5 Nm |
| Total height | 19 mm |
| Width | 49 mm |
| Material | Plastic (PA) / Brass |
| Shape | A |
| Surface | Blank |
| Thread size | M 5 mm |
Description

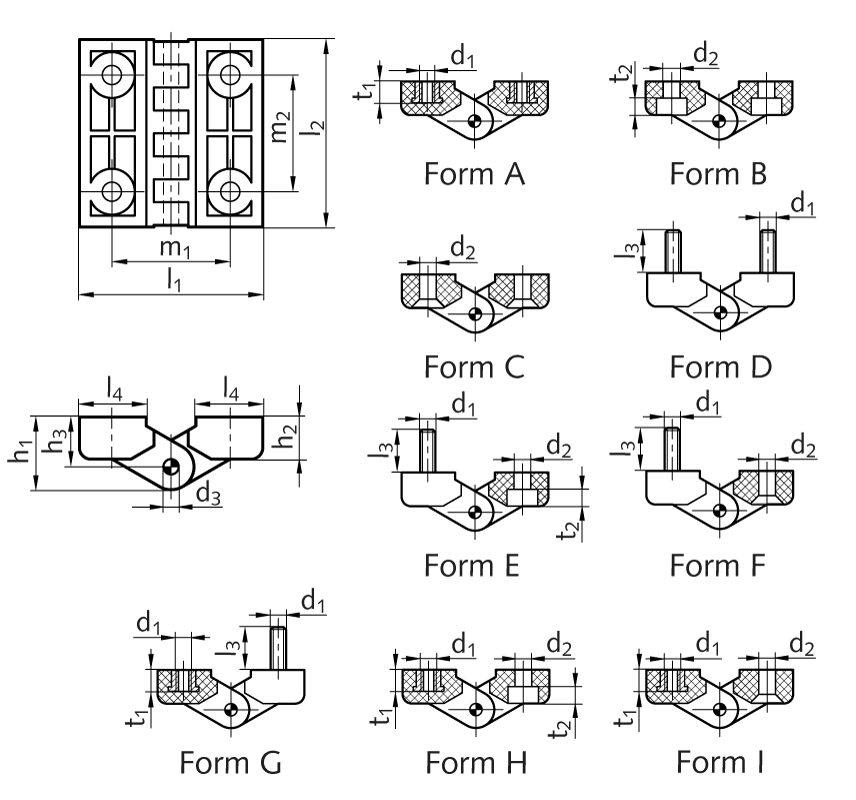

Material: Body: plastic (polyamide), black matt. Pin: Stainless steel 1.4305. Threaded bolt: Nickel-plated brass. Threaded bushings: Nickel-plated brass. Non-detachable hinges. 3 types for choice: with threaded blind holes or cylindrical, stepped bores for socket head cap screws or countersunk bores or threaded bolts or in combinations. Temperature resistant up to +80 °C. 1) Fastening torque for thread d1. 2) Fastening torque for fitting screw in d2. 3) Max. axial force. 4) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
