MÄDLERMÄDLER· Fastening Elements

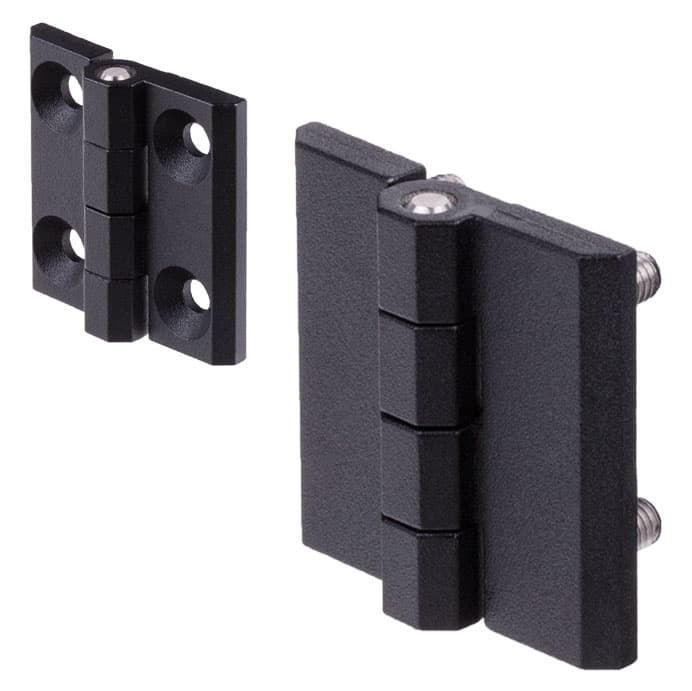

Hinge M237 Zinc die casting, type A, 40x40mm
Manufacturer part no. 67700302
$9.08≈ 7.89 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €7.89 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.58 |
| Total delivered | €27.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 46 g |
| Dimensions | 40x40mm |
Other characteristics
| Bore diameter | 5.3 mm |
| Max axial force | 1 060 N |
| Max radial force at opening angle 90 | 2 000 N |
| Total height | 9 mm |
| Width | 40 mm |
| Material | Zinc die-cast |
| Shape | A |
| Surface | Plastic coated, matt finish |
Description

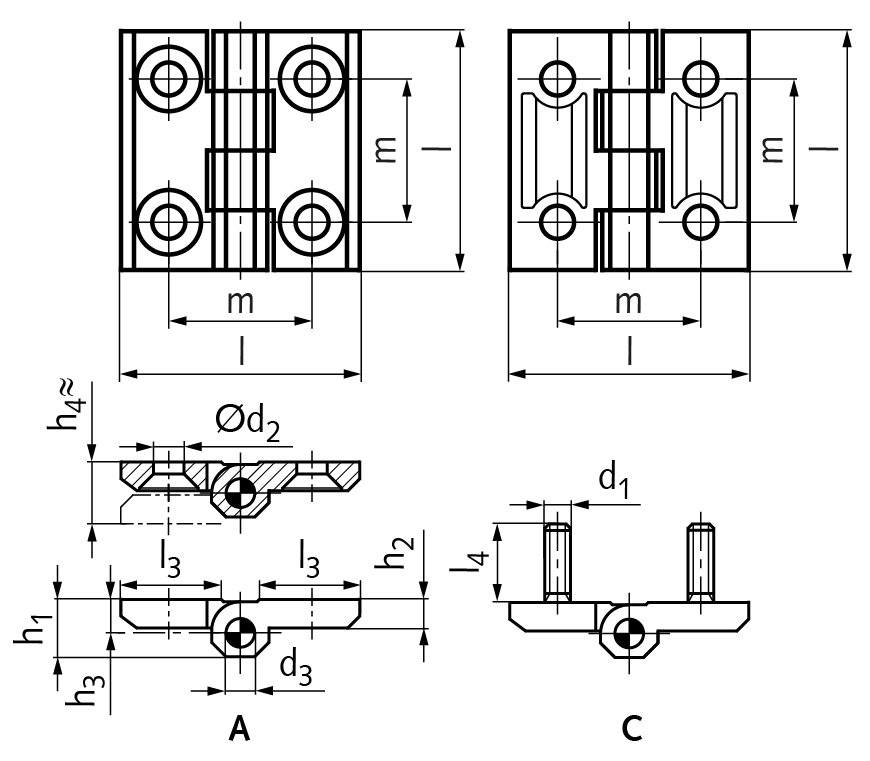

Material: Zinc die cast, plastic coated black RAL 9005, textured finish. Pin: 1.4305. Non-detachable hinges. The swivel range depends on the pivoting direction; 180° or 90° (type C 180° or 70°). Type A: with bores for countersunk screws DIN 7991. Type C: with threaded bolts. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
