MÄDLERMÄDLER· Fastening Elements

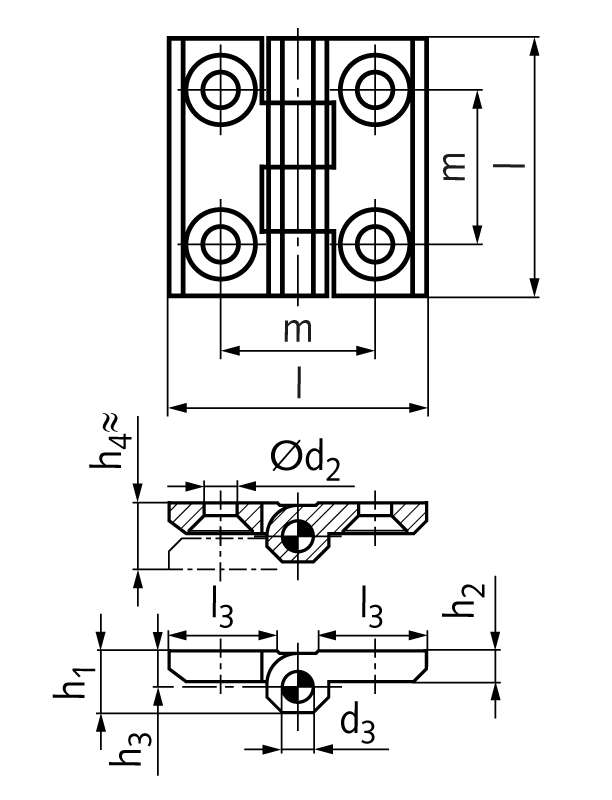

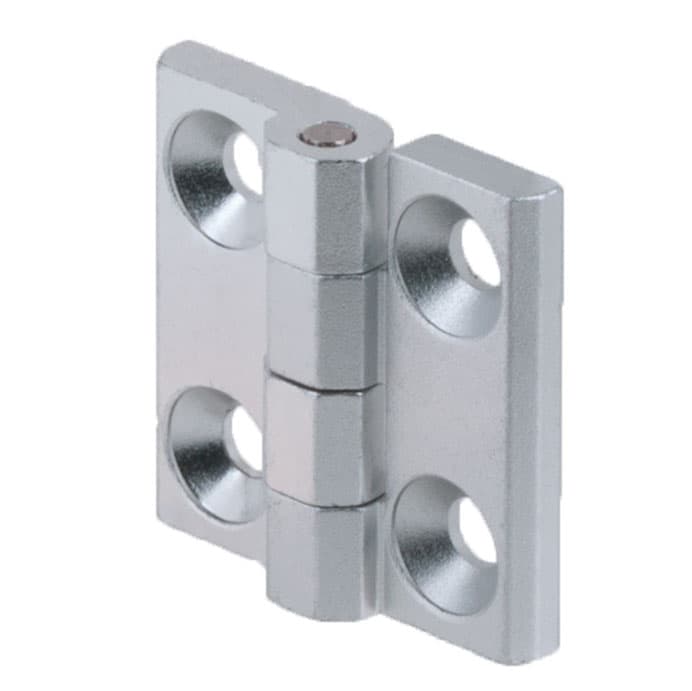

Hinge M237 Aluminium, type A, 30x30mm
Manufacturer part no. 67700321
$16.01≈ 13.90 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €13.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.78 |
| Total delivered | €34.68 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11 g |
| Dimensions | 30x30mm |
Other characteristics
| Bore diameter | 4.3 mm |
| Max axial force | 500 N |
| Max radial force at opening angle 90 | 750 N |
| Total height | 7.5 mm |
| Width | 30 mm |
| Material | Aluminum |
| Shape | A |
| Surface | Anodised |
Description
Material: Aluminium, anodized in natural colour. Pin: Stainless steel 1.4571. Non-detachable hinges. The swivel range depends on the pivoting direction; 180° or 90°. With bores for countersunk screws DIN 7991. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
