MÄDLERMÄDLER· Fastening Elements

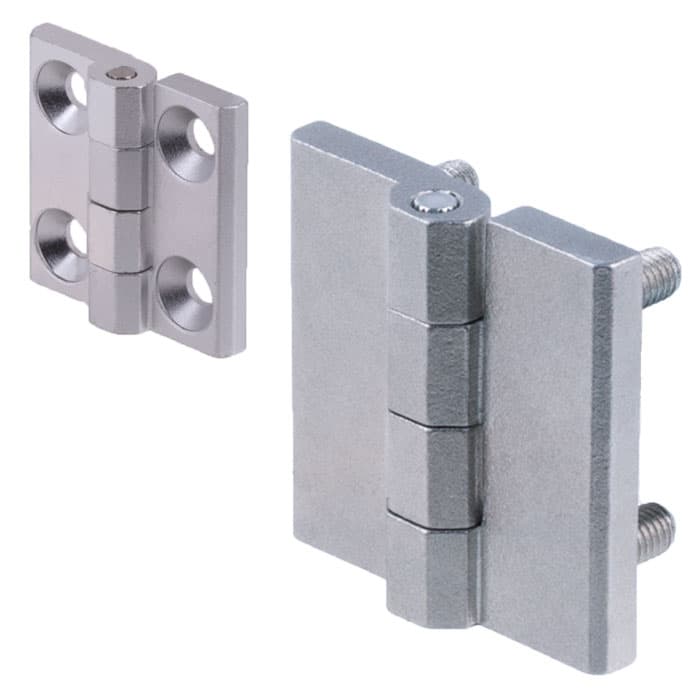

Hinge M237 stainless steel 1.4408, type A, 30x30mm
Manufacturer part no. 67700341
$22.52≈ 19.56 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €19.56 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.91 |
| Total delivered | €41.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 23 g |
| Dimensions | 30x30mm |
Other characteristics
| Bore diameter | 4.3 mm |
| Max axial force | 750 N |
| Max radial force at opening angle 90 | 750 N |
| Total height | 7.5 mm |
| Width | 30 mm |
| Material | Stainless steel (316) |
| Shape | A |
| Surface | Matt finish |
Description
Material: Stainless steel 1.4308 (CF-8) matt blasted or Stainless steel 1.4408 (AISI 316). matt blasted. Pin: Stainless steel 1.4571 (AISI 316 Ti). Non-detachable hinges. The swivel range depends on the pivoting direction; 180° or 90° (type C 180° or 70°). Type A: with bores for countersunk screws DIN 7991. Type C: with threaded bolts. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
