MÄDLERMÄDLER· Fastening Elements

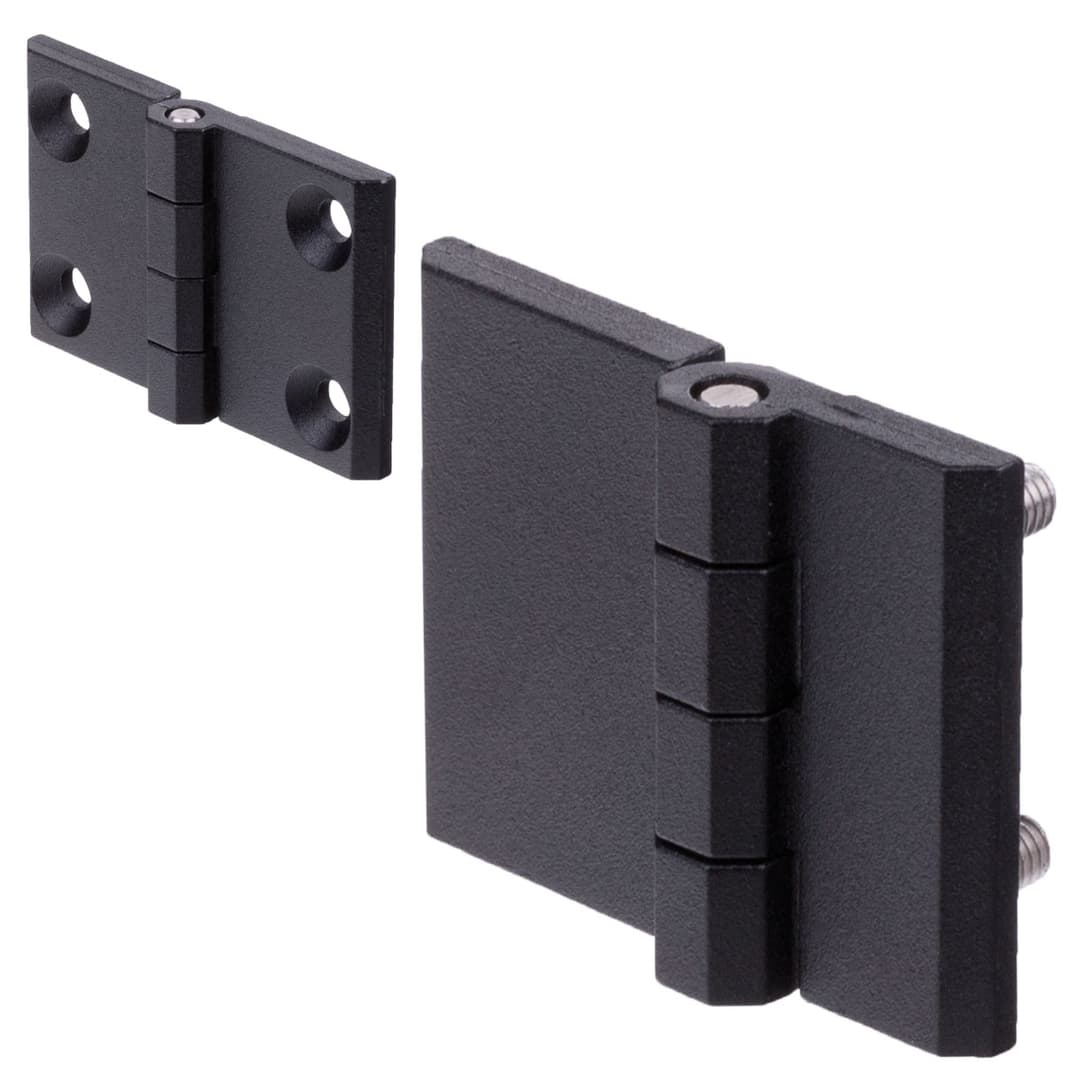

Hinge M237 zinc die casting, type 1A, 90x60mm
Manufacturer part no. 67700352
$23.86≈ 20.72 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €20.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.14 |
| Total delivered | €42.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 1 A |
Mechanical
| Weight | 200 g |
| Dimensions | 90x60mm |
Other characteristics
| Bore diameter | 8.4 mm |
| Length | 90 mm |
| Max axial force | 1 500 N |
| Max radial force at opening angle 90 | 1 500 N |
| Shape | 1 A |
| Total height | 15 mm |
| Width | 60 mm |
| Material | Zinc die-cast / Stainless steel |
| Surface | Matt finish |
Description

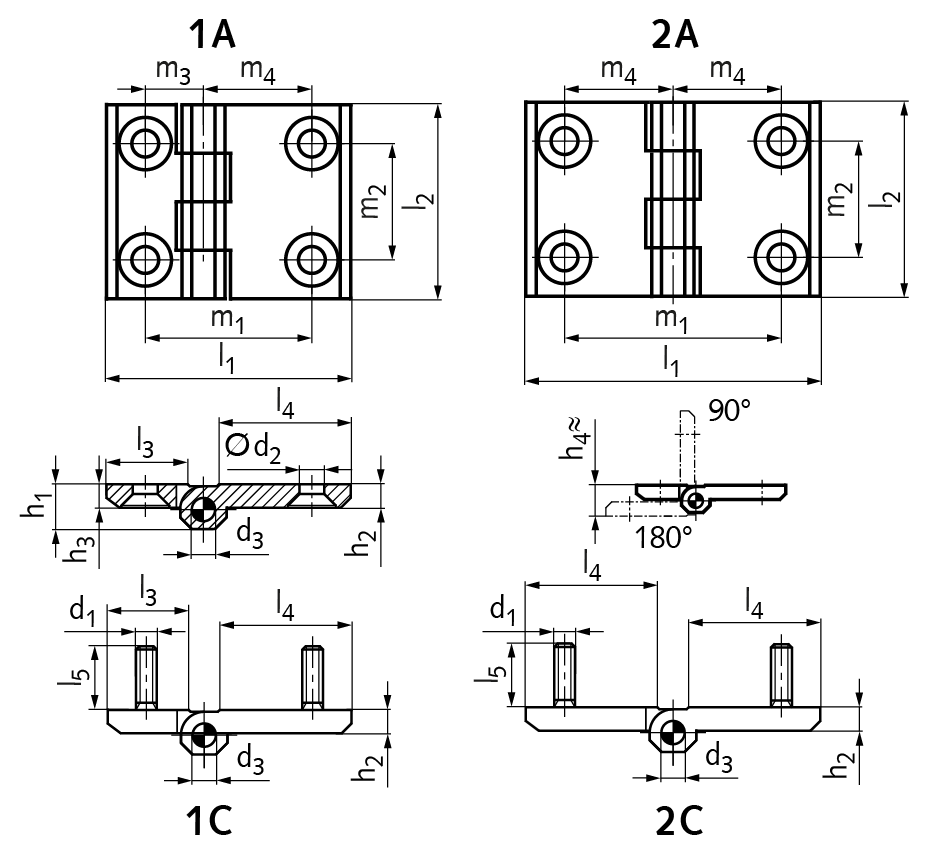

Material: Zinc die cast, plastic coated, black, textured finish. Pin: Stainless steel 1.4305. Threaded bolts (type C): Stainless steel 1.4401 This non-detachable hinges are extended on one side (1) or two sides (2). With countersunk holes for screws DIN 7991 (Type A) or threaded bolts (Type C). Type 1A: extended on one side, with sunkholes. Type 1C: extended on one side, with threaded bolts. Type 2A: extended on both sides, with sonkholes. Type 2C: extended on both sides, with threaded bolts. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
