MÄDLERMÄDLER· Fastening Elements

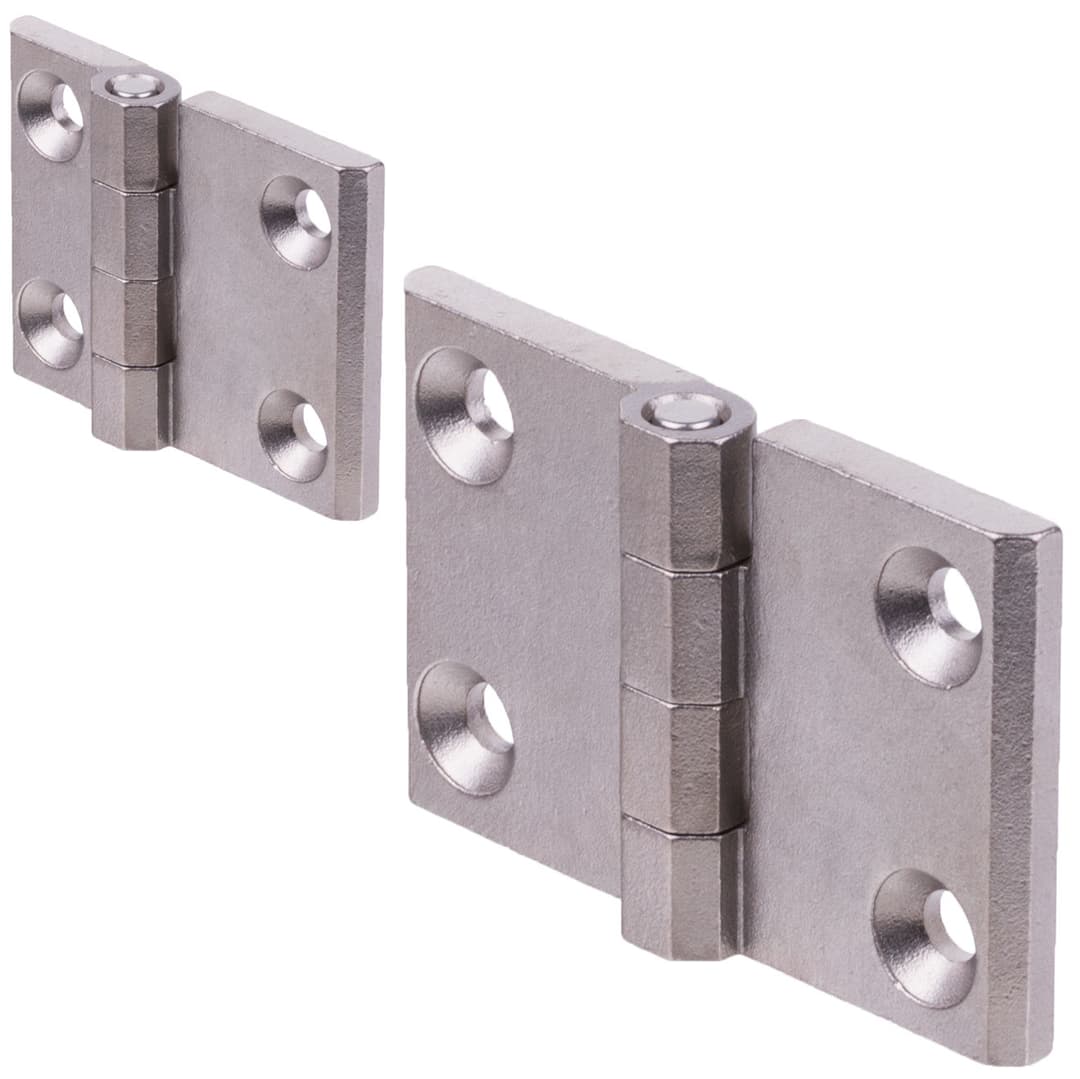

Hinge M237 stainless steel 1.4308, type 2A, 76x50mm
Manufacturer part no. 67700365
$33.15≈ 28.79 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €28.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.76 |
| Total delivered | €52.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 2 A |
Mechanical
| Weight | 154 g |
| Dimensions | 76x50mm |
Other characteristics
| Bore diameter | 6.3 mm |
| Length | 76 mm |
| Max axial force | 1 200 N |
| Max radial force at opening angle 90 | 2 000 N |
| Shape | 2 A |
| Total height | 11.5 mm |
| Width | 50 mm |
| Material | Stainless steel |
| Surface | Matt finish |
Description

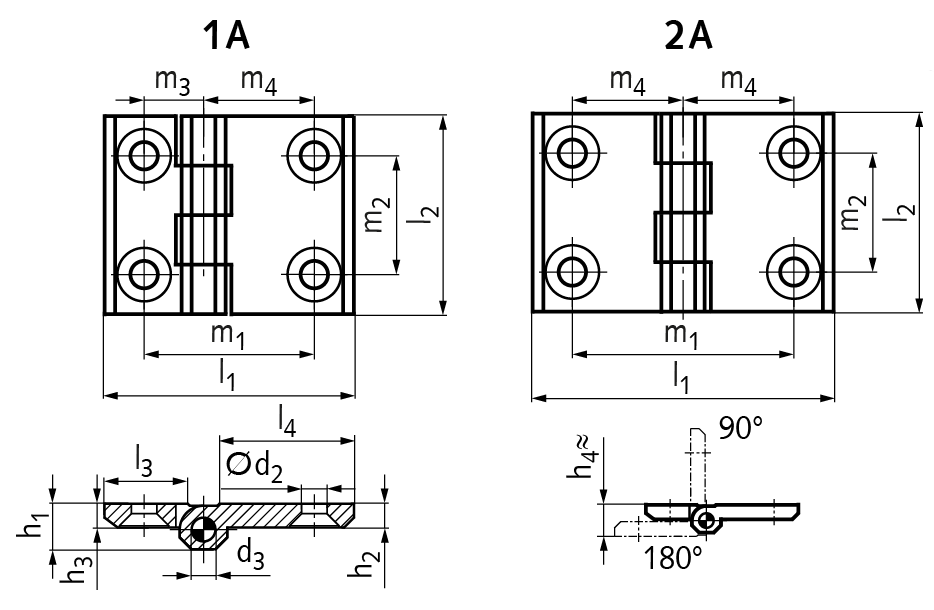

Material: Stainless steel 1.4308 (CF-8), matt blasted. Pin: Stainless steel 1.4571 (AISI 316 Ti). This non-detachable hinges are extended on one side (1) or two sides (2). With countersunk holes for screws DIN 7991. Type 1A: extended on one side, with sunkholes. Type 2A: extended on both sides, with sonkholes. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
