MÄDLERMÄDLER· Fastening Elements

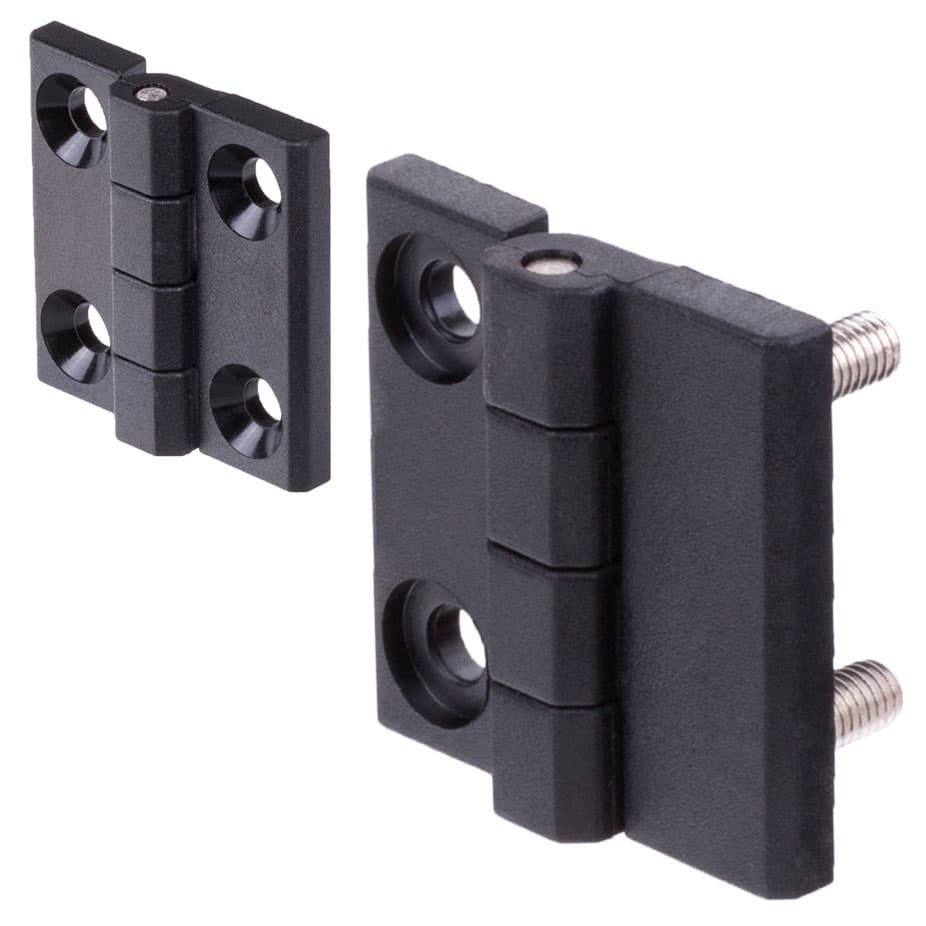

Hinge M237 plastic, type C, 50x50mm
Manufacturer part no. 67700390
$14.81≈ 12.86 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €12.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.57 |
| Total delivered | €33.43 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 50 g |
| Dimensions | 50x50mm |
Other characteristics
| Max axial force | 2 340 N |
| Max radial force at opening angle 90 | 2 100 N |
| Tightening torque for thread d1 | 5 Nm |
| Total height | 11.5 mm |
| Width | 50 mm |
| Material | Plastic / Steel |
| Shape | C |
| Surface | Matt finish |
| Thread size | M 6 mm |
Description

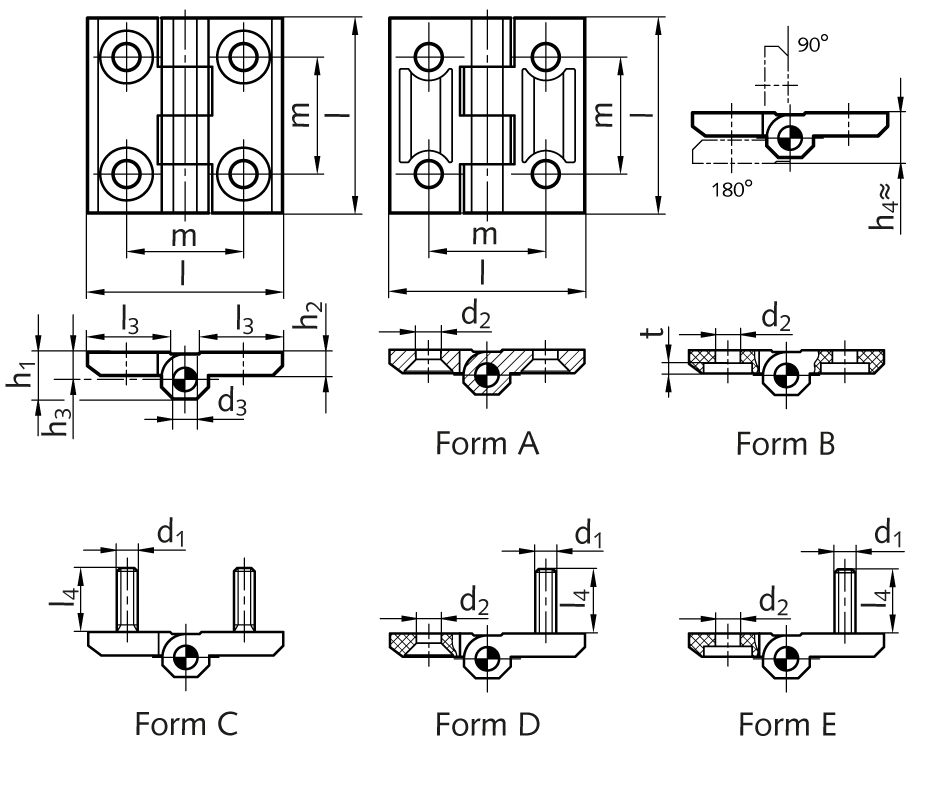

Material: Plastic Polyamid (PA), glass fibre reinforced, black matt. Pin: Stainless steel 1.4305. Threaded bolts: Steel zinc plated. Non-detachable, high quality plastic hinges. Type A: with 2 x 2 bores for countersunk screws. Type B: with 2 x 2 bores for cylindrical screw heads. Type C: with 2 x 2 threaded bolts. Temperature resistant up to +140 °C. 1) Fastening torque for thread d1. 2) Fastening torque for fitting screw in d2. 3) Max. axial force. 4) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
