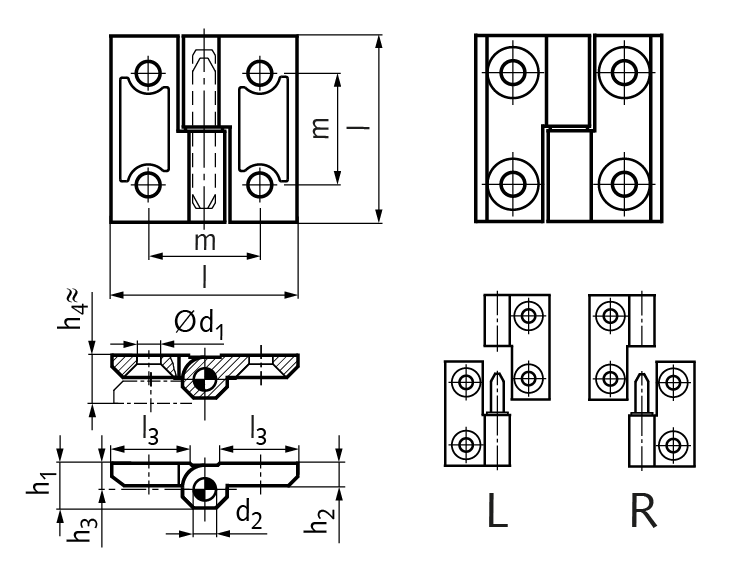

Hinge M337 zinc die casting, detachable, type L, 40x40mm
Manufacturer part no. 67700411
$13.52≈ 11.74 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €11.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.35 |
| Total delivered | €32.09 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 40 g |
| Dimensions | 40x40mm |
Other characteristics
| Bore diameter | 5.3 mm |
| Max axial force | 1 500 mm |
| Max radial force at opening angle 90 | 1 600 N |
| Total height | 9 mm |
| Width | 40 mm |
| Material | Zinc die-cast / Stainless steel |
| Shape | L |
| Surface | Plastic coated, matt finish |
Description
Material: Zinc die cast, plastic coated black RAL 9005, matt texture finish. Pin: Stainless steel 1.4305. Detachable hinges with sliding disc from plastic. Before mounting, the pin should be lightly greased. With bores for countersunk screws DIN 7991. Type L: for installation at the left side. Type R: for installation at the right side. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
