MÄDLERMÄDLER· Fastening Elements

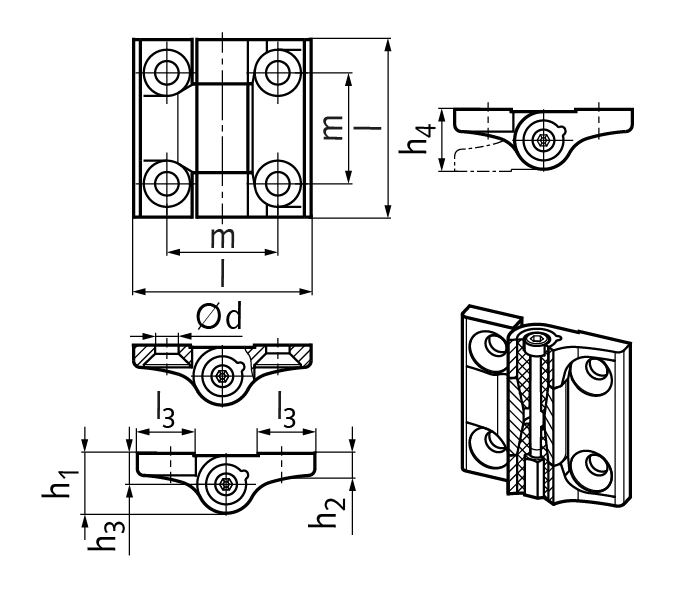

Hinge M437 zinc die casting, silver plastic coating, adjustable friction, 40x40mm
Manufacturer part no. 67700461
$16.14≈ 14.02 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €14.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.80 |
| Total delivered | €34.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 52 g |
| Dimensions | 40x40mm |
Other characteristics
| Bore diameter | 5.3 mm |
| Frictional torque | 2 Nm |
| Max axial force | 1 200 mm |
| Max radial force at opening angle 90 | 1 600 N |
| Tightening torque | 0.5 Nm |
| Total height | 13.5 mm |
| Width | 40 |
| Wrench size | 2.5 mm |
| Color | Silver |
| Material | Zinc die-cast / Plastic |
| Surface | Plastic coated, matt finish |
Description
Material: Zinc die cast, plastic coated, matt texture finish, black RAL 9005 or silver RAL 9006. Friction cone: Polyacetal POM. Adjusting screw / threaded bushing: Steel zinc-plated. The agility of the non-detachable hinge can be adjusted by a setscrew. Two cones with large friction face create an adjustable torque. This hinge is free of axial clearance and offers a long service life with almost consistently stiffness. Bores for countersunk screws DIN 7991. Temperature resistant up to +80 °C. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
