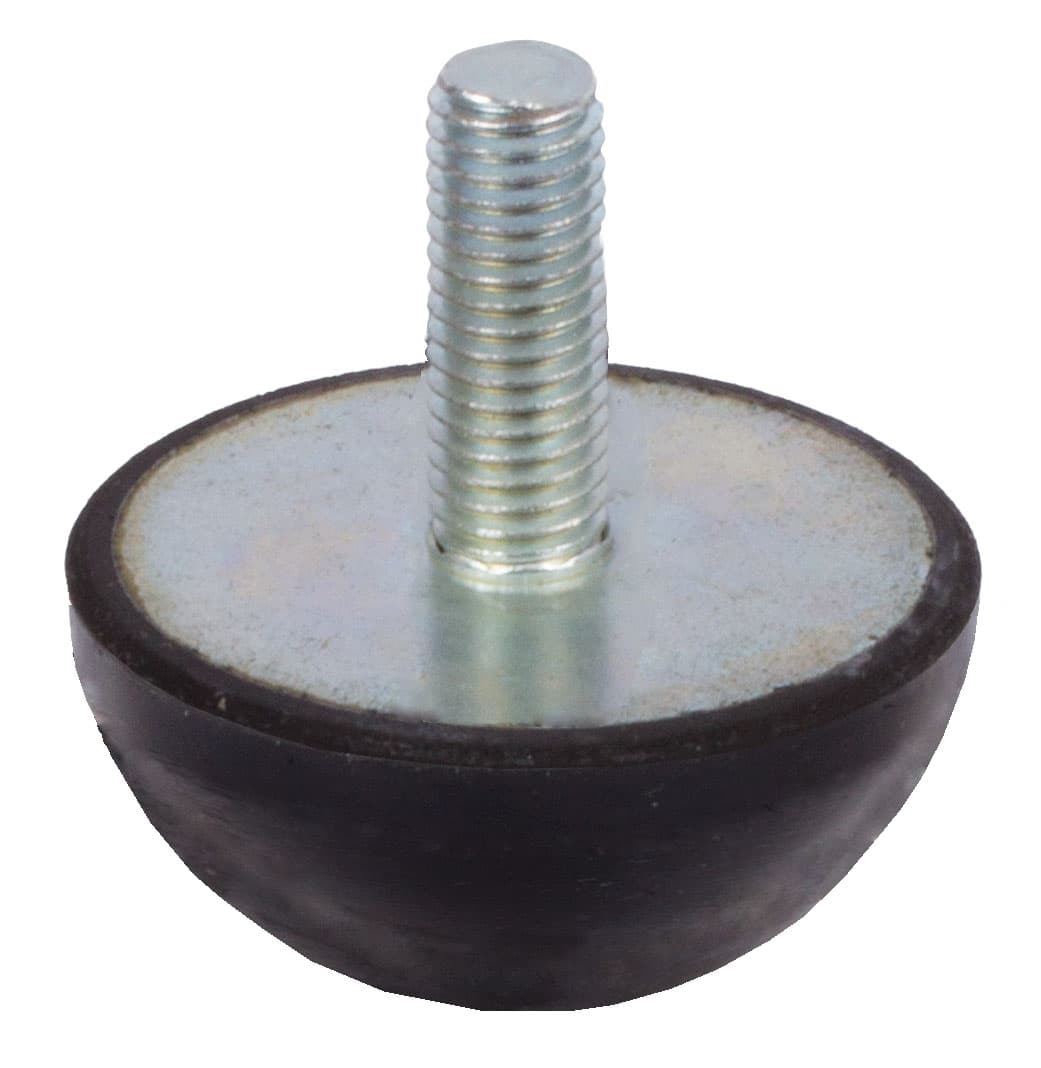

Rubber metal buffer KPR type A ø 40mm thread M8x23
Manufacturer part no. 68501040
$6.07≈ 5.27 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €5.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.05 |
| Total delivered | €24.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
Other characteristics
| Height | 20 mm |
| Outer diameter | 40 mm |
| Thread length | 23 mm |
| Material | Natural rubber / Steel |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Metal parts: Steel, zinc-plated. Elastomer: Natural rubber hardness 55º Shore A. Simple, reasonably priced standard components used for elastic mounting. The grade of rubber used has perfect physical properties. The shape of a hemisphere results in a very progressive force-stroke characteristic. Type A: with threaded stud.
