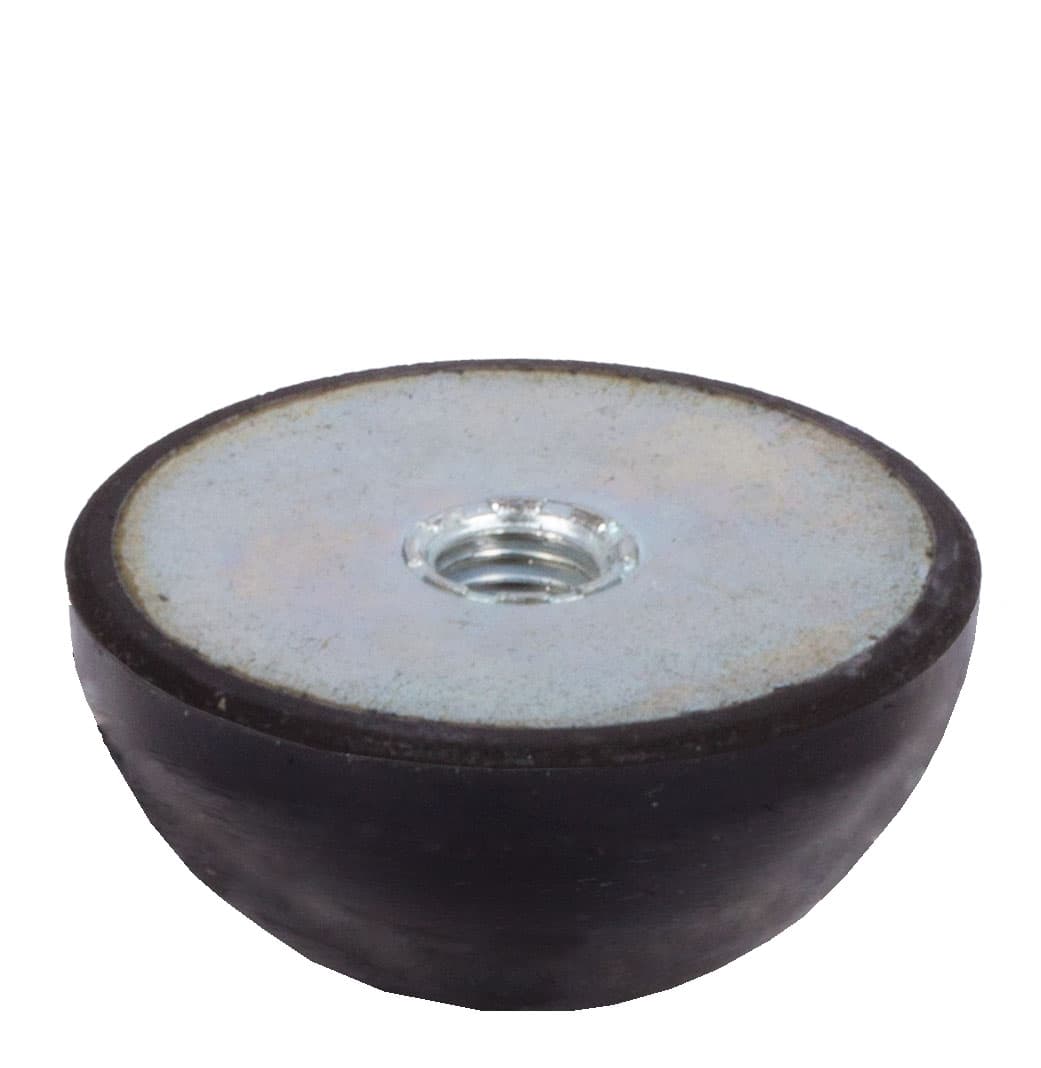

Rubber metal buffer KPR type I ø 20mm inner thread M6
Manufacturer part no. 68501120
$2.56≈ 2.22 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €2.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.44 |
| Total delivered | €20.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

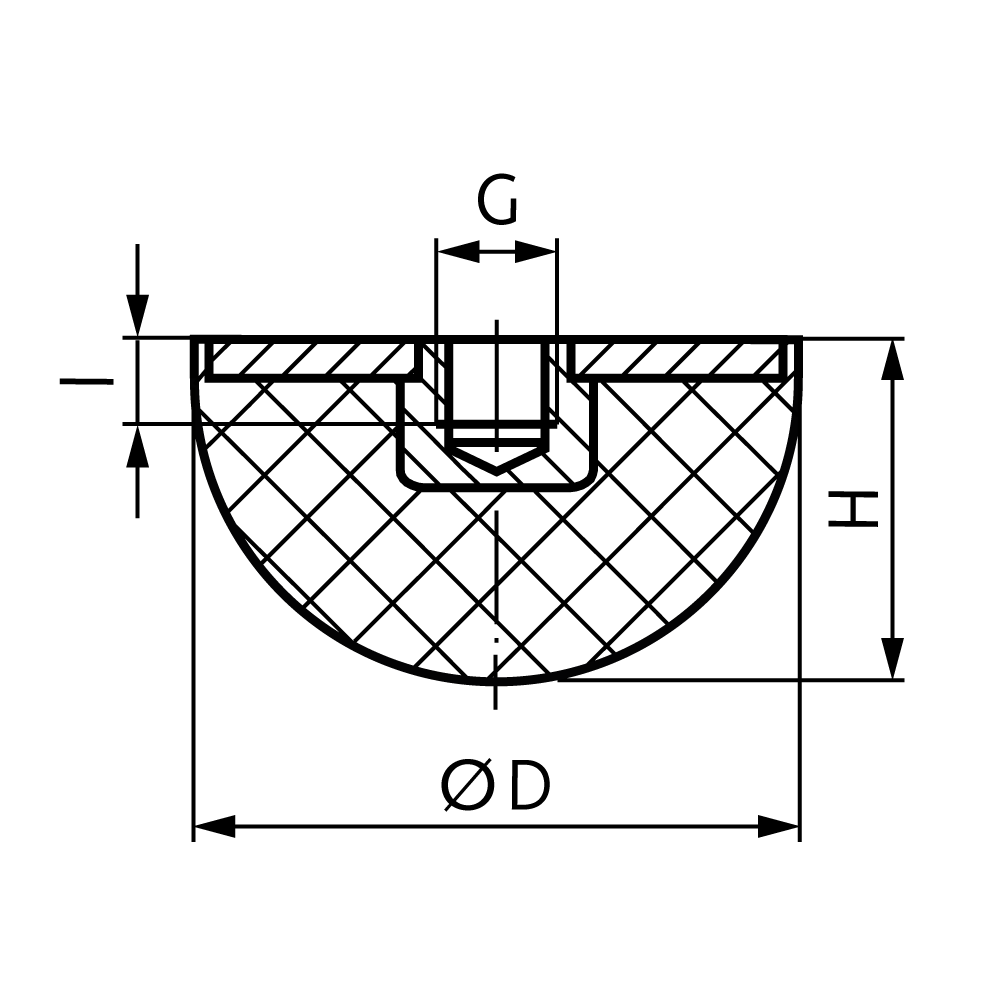

Specifications (automatically extracted)
Mechanical
| Weight | 8 g |
Other characteristics
| Height | 10 mm |
| Outer diameter | 20 mm |
| Thread length | 6 mm |
| Material | Natural rubber / Steel |
| Surface | Zinc-plated |
| Thread size | M 6 mm |
Description
Material: Metal parts: Steel, zinc-plated. Elastomer: Natural rubber hardness 55º Shore A. Simple, reasonably priced standard components used for elastic mounting. The grade of rubber used has perfect physical properties. The shape of a hemisphere results in a very progressive force-stroke characteristic. Type I: with internal thread.
