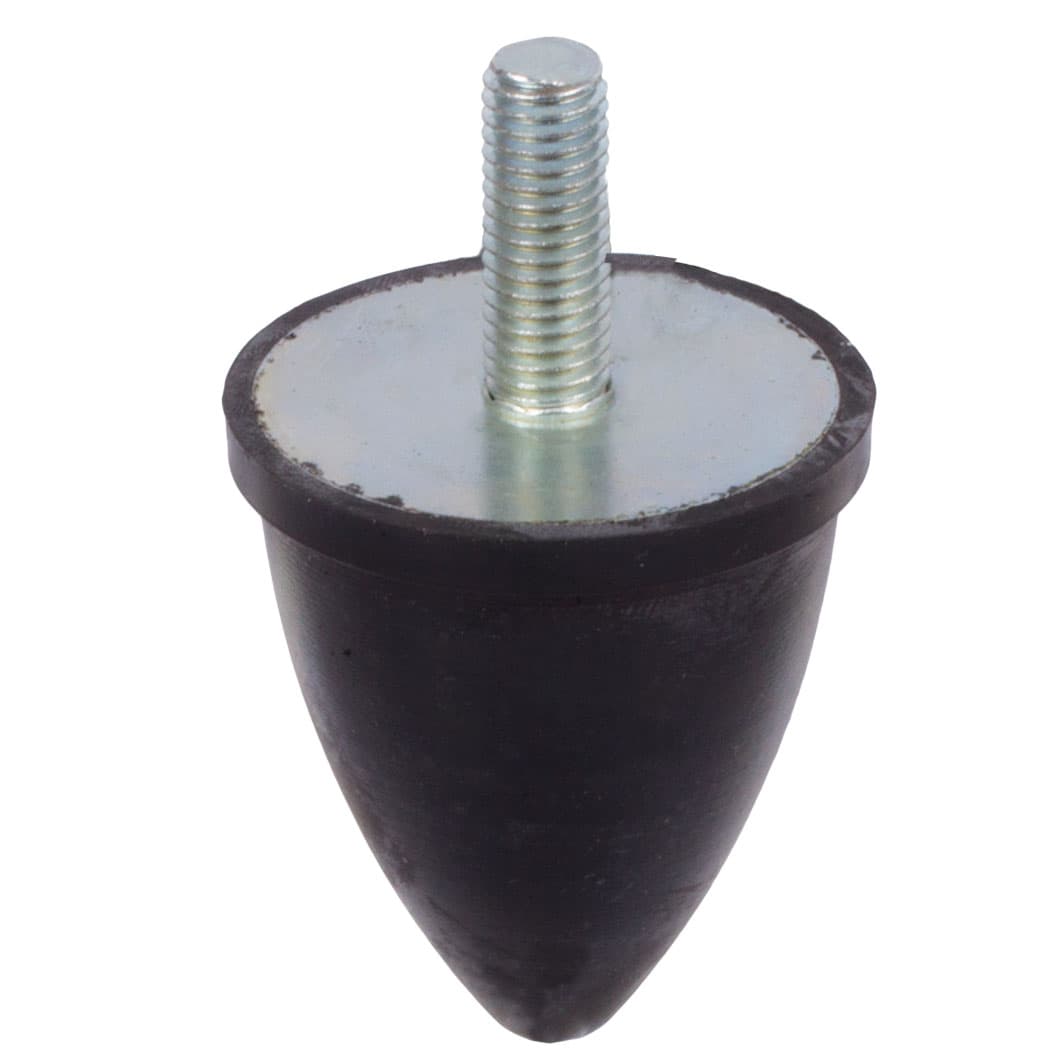

Rubber-metal buffer KP diameter 35mm height 40mm thread M8x20
Manufacturer part no. 68504100
$5.38≈ 4.67 €
In stock — 29 unitslead time 14 d
Estimated landed cost
| Item | €4.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.93 |
| Total delivered | €23.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 45 g |
Other characteristics
| Height | 40 mm |
| Outer diameter | 35 mm |
| Pressure load | 150 N |
| Spring rate medium | 27 N/mm |
| Thread length | 20 mm |
| Material | Natural rubber / Steel |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Metal parts: Steel, zinc-plated. Elastomer: Natural rubber hardness 55° Shore. Rubber-Metal buffers are simple, reasonably priced standard components used for elastic mounting. When shearing load occurs their load-bearing capacity is considerably lower than with pressure load. This has to be considered when horizontal mass forces or belt traction occur. The grade of rubber used has perfect physical properties. Type A: with threaded stud. * Fperm. is the permissible static permanent load, which may be overlaid by a dynamic, alternating load. With shearing load please take care that no tension load in the rubber occurs at all during mounting. To achieve a sufficient fatigue strength provide some compressive pre-stressing. The stated permissible loads are only approximate, guideline values for the static load for "medium" rubber hardness. With particularly high, dynamic, alternating loads or high frequencies, the load figures have to be reduced accordingly. Temperature resistant up to 80°C.
