MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

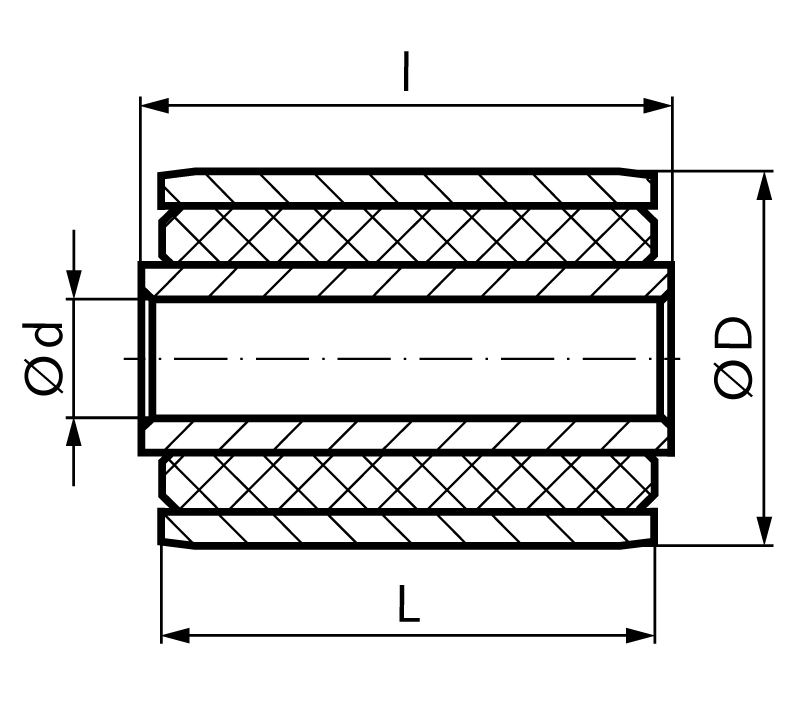

steel rubber bush PHO-V inner diameter 10mm outer diameter 18mm length of inner bush 20mm length of outer bush 18mm vulcanized version
Manufacturer part no. 685101818V
$9.05≈ 7.86 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €7.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.57 |
| Total delivered | €27.43 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 17 g |
Other characteristics
| Admissible axial load static | 80 N |
| Admissible radial load static | 300 N |
| Admissible torque static | 6.15 Nm |
| Admissible turn angle static | 15 ° |
| Spring rate | 0.41 Nm/Grad |
| Spring rate axial | 480 N/mm |
| Spring rate radial | 3 400 N/mm |
| Inner diameter | 10+0.15 mm |
| Length of inner bushing | 20+/-0.1 mm |
| Length of outer bushing | 18+/-0.3 mm |
| Material | Steel / Natural rubber |
| Outer diameter | 18+0.1 mm |
| Surface |
Description
Material: Metal Parts: Steel, zinc plated. Elastomer: Natural rubber, hardness 55º Shore A. Version: With medium-hard rubber, vulcanized at the inner bush and the outer bush. Good flexibility. Suitable for medium radial load and high axial load and high torsion. Load data +/-20%. Mounting hole tolerance: Depending on the actual size of the outer bush diameter, the borehole tolerance must be determinated, in accordance with the required fit. Temperature resistant up to 80ºC.
