MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

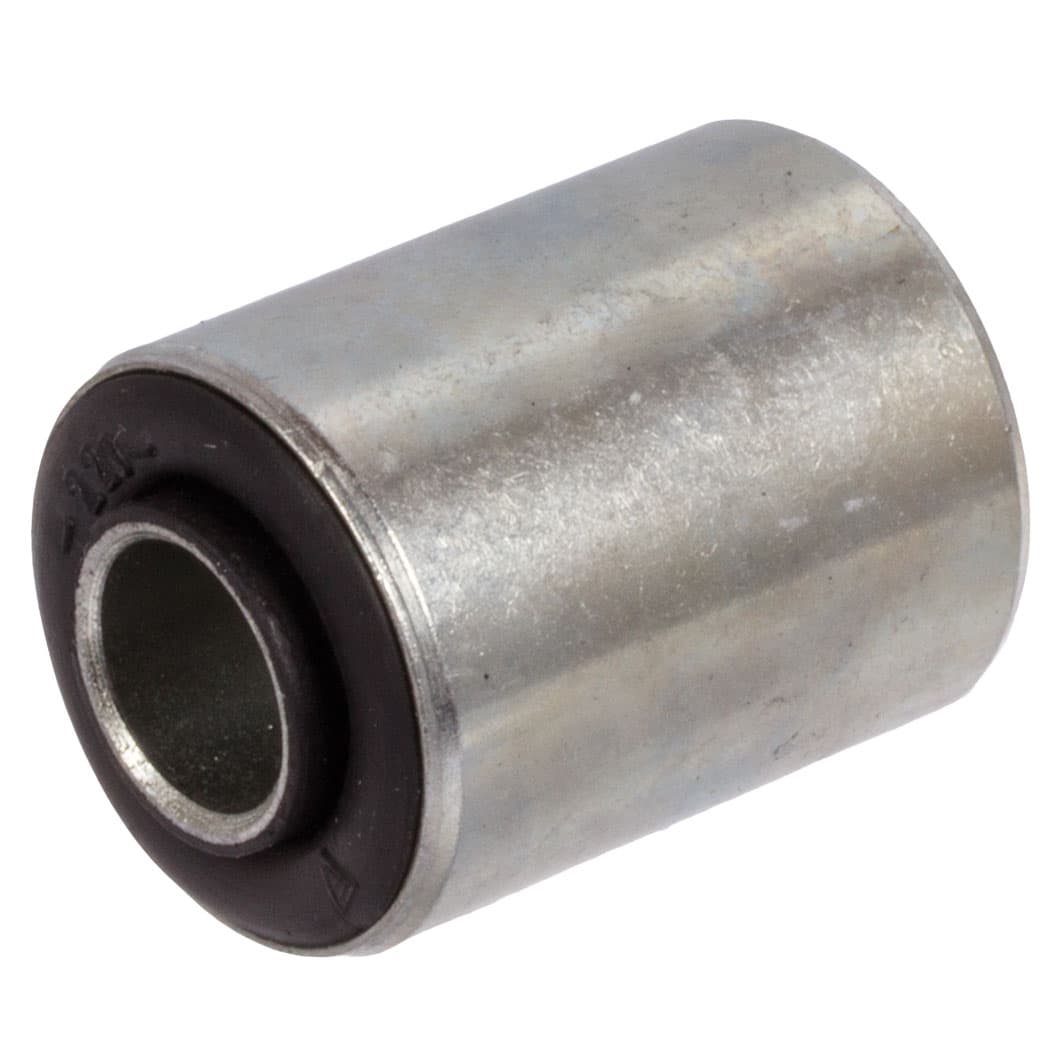

steel rubber bush PHO-P inner diameter 40mm outer diameter 75mm length of inner bush 70mm length of outer bush 57mm pressed-in version
Manufacturer part no. 685407557P
$31.78≈ 27.60 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €27.60 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.52 |
| Total delivered | €51.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 812 g |
Other characteristics
| Admissible axial load static | 4 510 N |
| Admissible radial load static | 5 900 N |
| Admissible torque static | 133 Nm |
| Admissible turn angle static | 14 ° |
| Spring rate | 9.5 Nm/Grad |
| Spring rate axial | 90 N/mm |
| Spring rate radial | 13 000 N/mm |

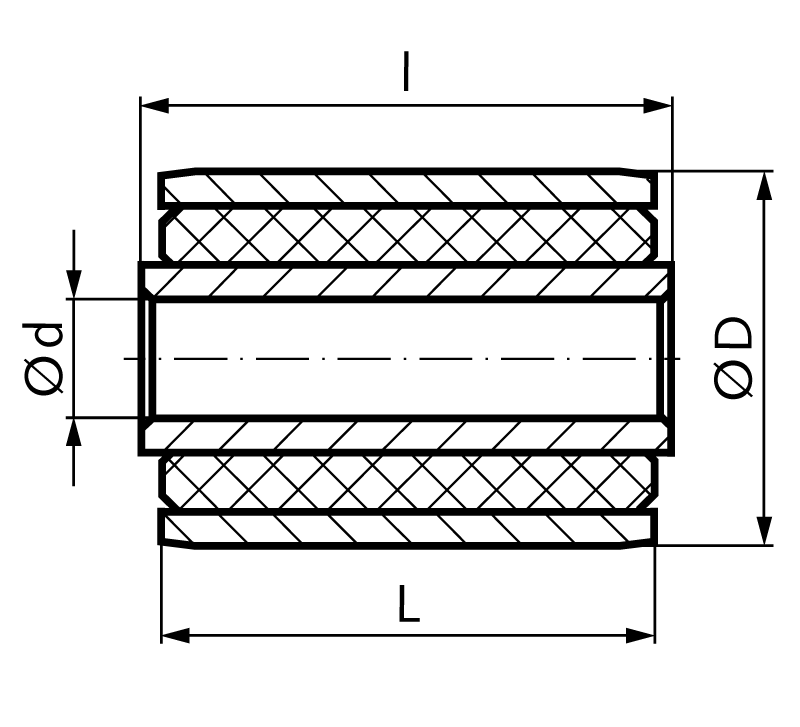

| Inner diameter | 40+0.4 mm |
| Length of inner bushing | 70+/-0.1 mm |
| Length of outer bushing | 57+/-0.3 mm |
| Material | Steel / Natural rubber |
| Outer diameter | 75+0.20 mm |
| Surface |
Description
Material: Metal Parts: Steel, zinc plated. Elastomer: Natural rubber, hardness 55-75º Shore A, depending on the size. Version: Hard rubber, pressed in between the inner bush and the outer bush. Suitable for high radial load, medium axial load and low torsion. Load data +/-20%. Mounting hole tolerance: Depending on the actual size of the outer bush diameter, the borehole tolerance must be determinated, in accordance with the required fit. Temperature resistant up to 80ºC.
