MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

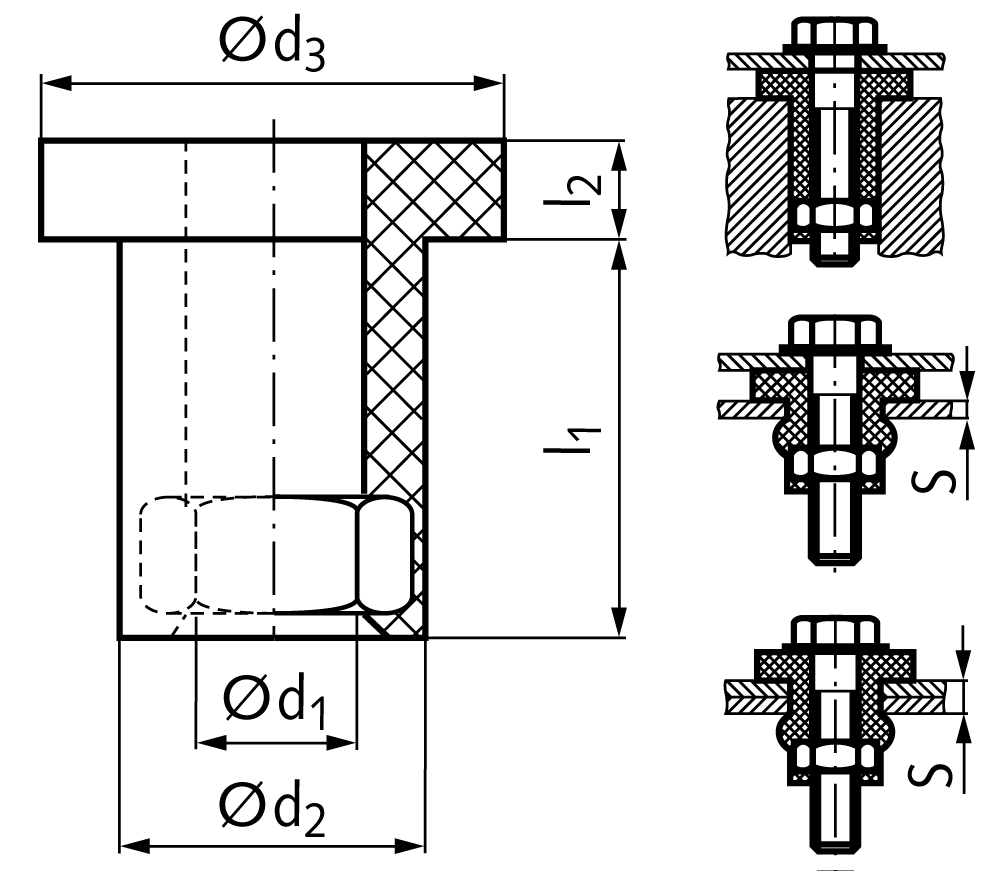

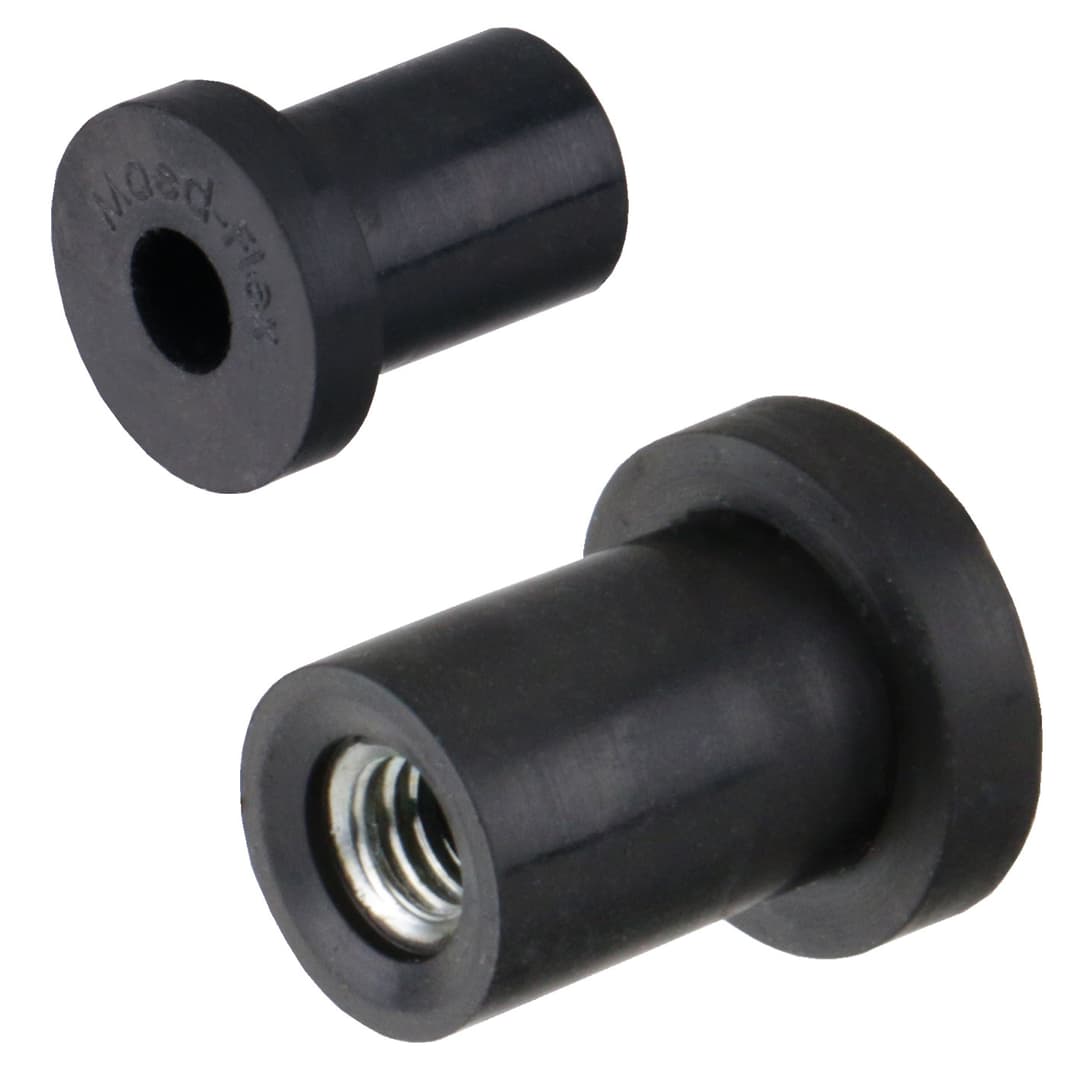

Rubber-Metal fastening element MAED-FLEX material Chloroprene CR 75 +/-5°ShA d2=7mm thread M3
Manufacturer part no. 68551003
$1.67≈ 1.45 €
In stock — 200 unitslead time 14 d
Estimated landed cost
| Item | €1.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.29 |
| Total delivered | €19.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1 g |
Other characteristics
| Flange diameter | 9 mm |
| Mounting in length | 9 mm |
| Outer diameter | 7 mm |
| Thickness of flange | 2.5 mm |
| Material | Neoprene / Steel |
| Needed bore of counterpart | 7.0 – 7.3 mm |
| Surface | Zinc-plated |
| Thread size | M 3 mm |
Description
Material: Elastomer: Chloroprene (CR), hardness 75+/-5º Shore A. Metal part (nut): Steel, zinc-plated. Standard components for elastic mounting. The grade of rubber used has perfect physical properties. Quick and easy to mount. Reduces noise and vibrations. Versatile usage with various mounting possibilities. Temperature range: -40°C up to +80ºC. Other sizes, Shore hardnesses or elastomer types on request.
