MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers
Rubber pad for machine feet square L=108mm
Manufacturer part no. 68598099
$5.02≈ 4.36 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €4.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.87 |
| Total delivered | €23.23 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

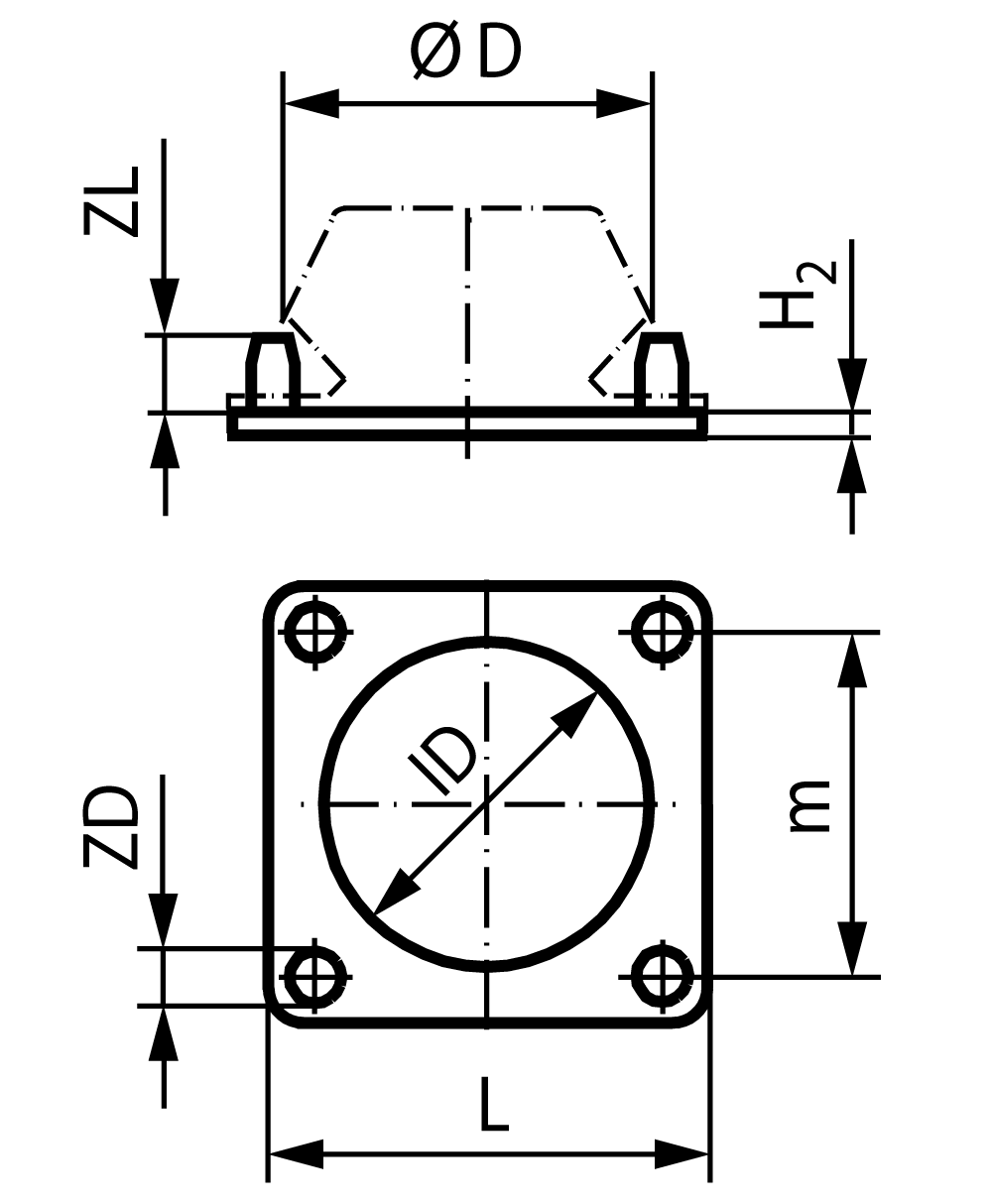

Specifications (automatically extracted)
Mechanical
| Weight | 36 g |
Other characteristics
| Diameter of machine mount | 101 mm |
| Inner diameter | 81 mm |
| Width | 108 mm |
| Material | NBR |
| Surface | Blank |
Description

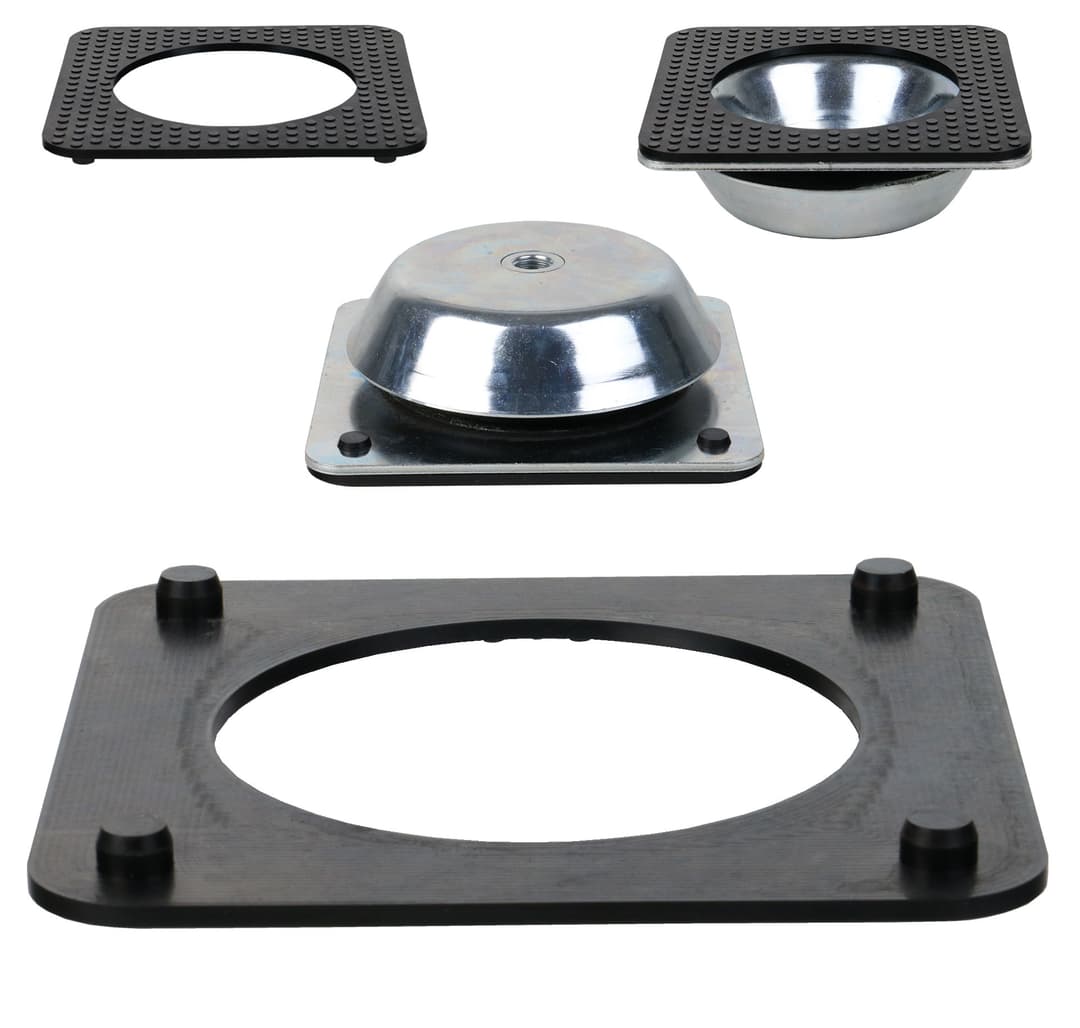

Material: Material: Rubber NBR, black, 70º +/-5º Shore A. These oil-resistant rubber pads can be cliped into the bores of the MÄDLER® machine mounts (failsafe or not failsafe). With small nubs on the bottom side. The rubber pads enable an anti-slip and vibration-damping placement of the machine mounts. Only for applications, where the machine mounts don´t need to be bolted in the ground.
