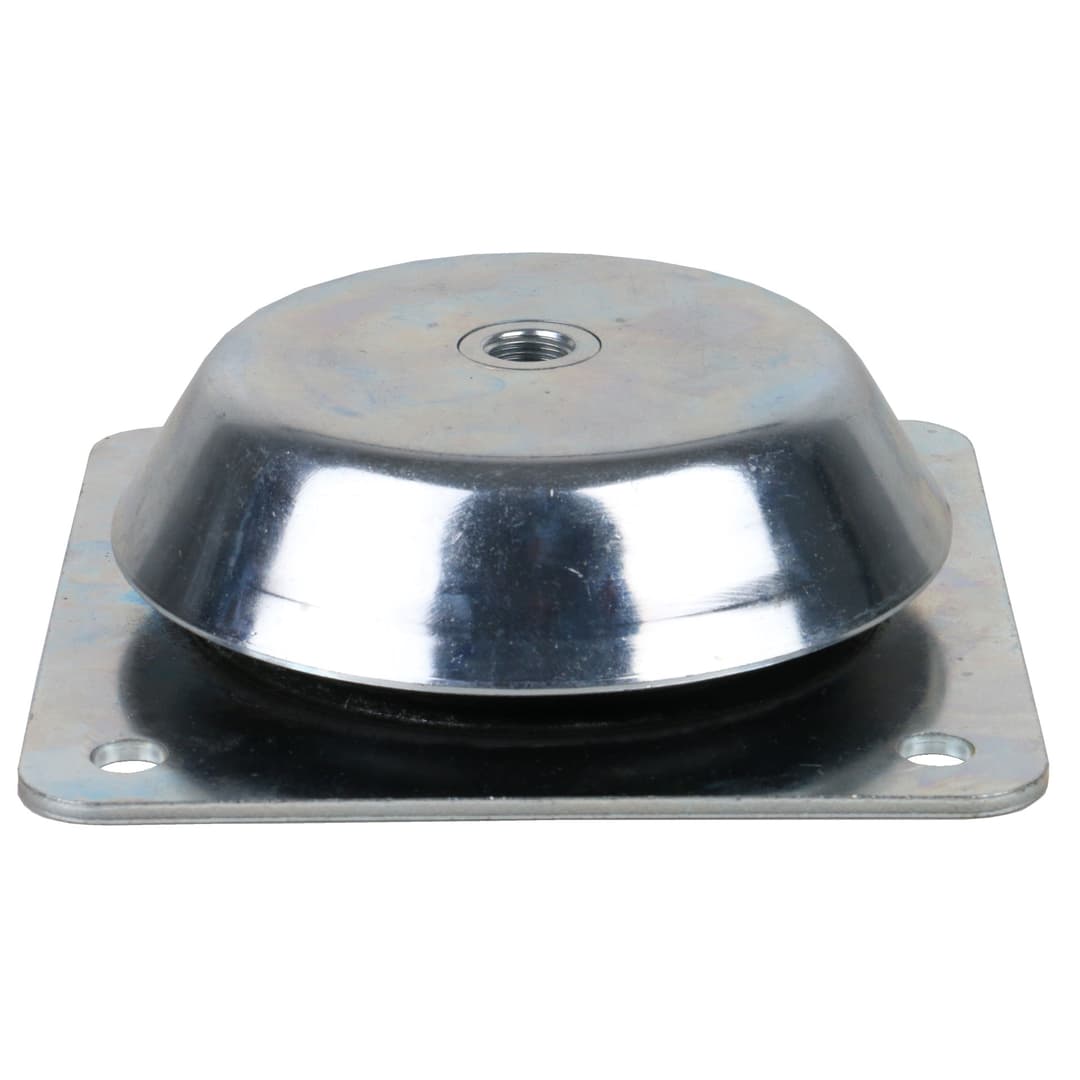

Machine mount failsafe diameter 192mm height 70mm thread M20 square flange
Manufacturer part no. 68599500
$137.02≈ 118.99 €
In stock — 12 unitslead time 14 d
Estimated landed cost
| Item | €118.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.80 |
| Total delivered | €160.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

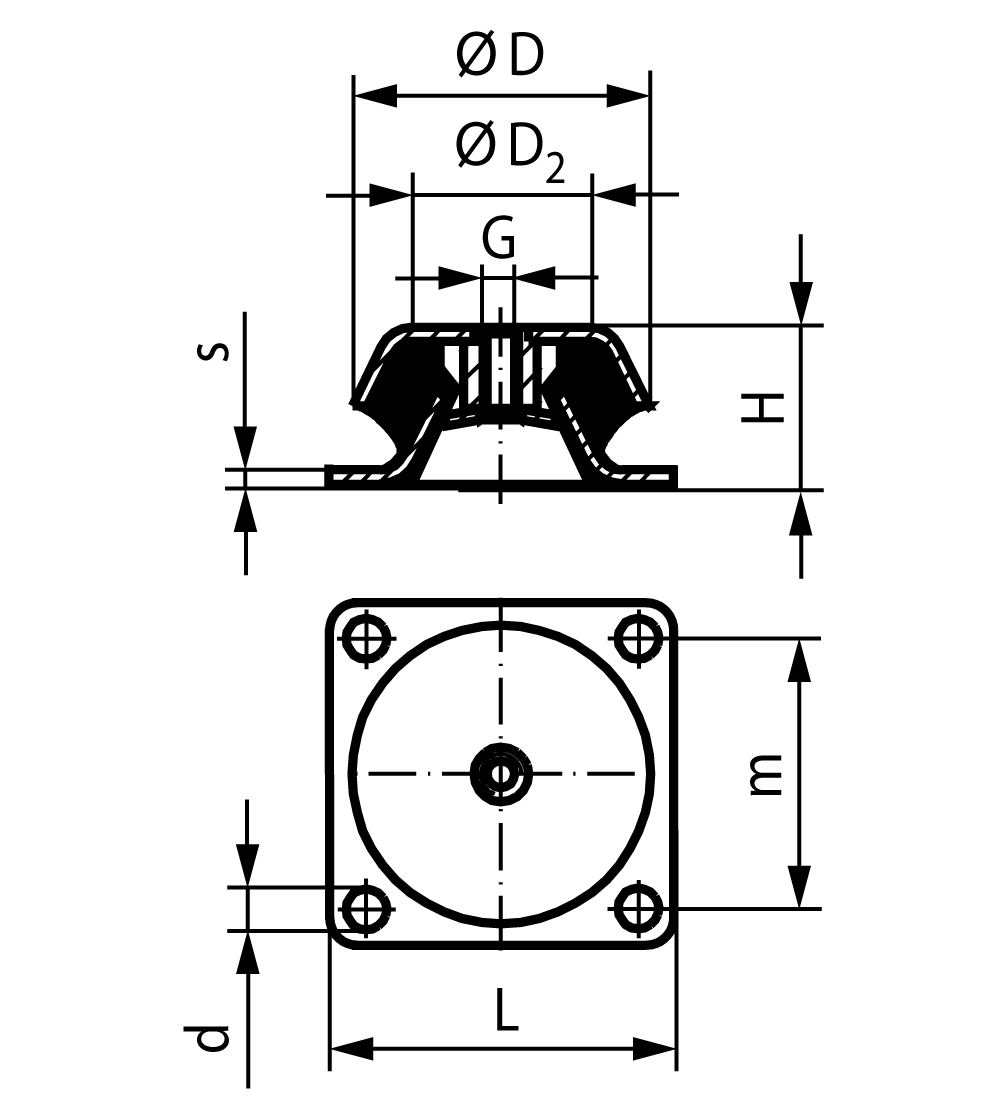

Specifications (automatically extracted)
Mechanical
| Weight | 4.45 kg |
Other characteristics
| Height | 70 mm |
| Length | 200 mm |
| Outer diameter | 192 mm |
| Pressure load | 18 200 N |
| Spring range 20 at fzul | 3.5 mm |
| Spring rate medium for pressure load | 5 200 N/mm |
| Inner thread size | M 20 mm |
| Material | Natural rubber / Steel |
| Surface | Zinc-plated |
Description
Material: Elastomer: Natural rubber 62° +/-5° Shore. Metal parts: Steel, strength 5.6, zinc-plated. Failsafe machine mounts can be universally used as elastic mounts for all kind of machines. Especially if tensile forces can be expected, these failsafe mounts are the perfect choice of damping element. The stated values are guideline values for the static load at durometer of 62º Shore A (medium), +/- 20%. 1) Spring Load. 2) Permissable permanent static load. No damping for tensile load.
