MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

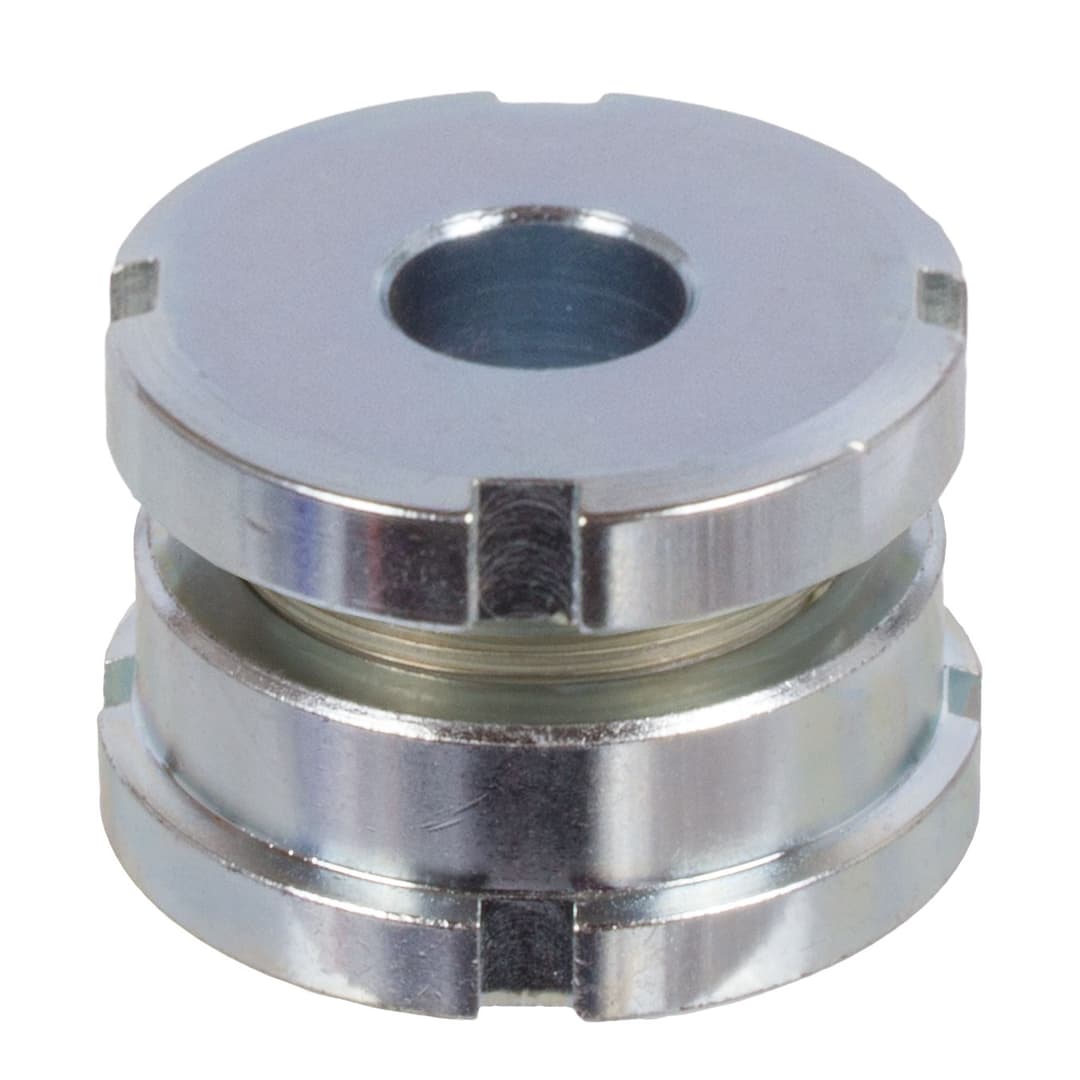

Precision levelling adjuster MN 686.3 15-6.6
Manufacturer part no. 68630500
$30.18≈ 26.21 €
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €26.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.24 |
| Total delivered | €49.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

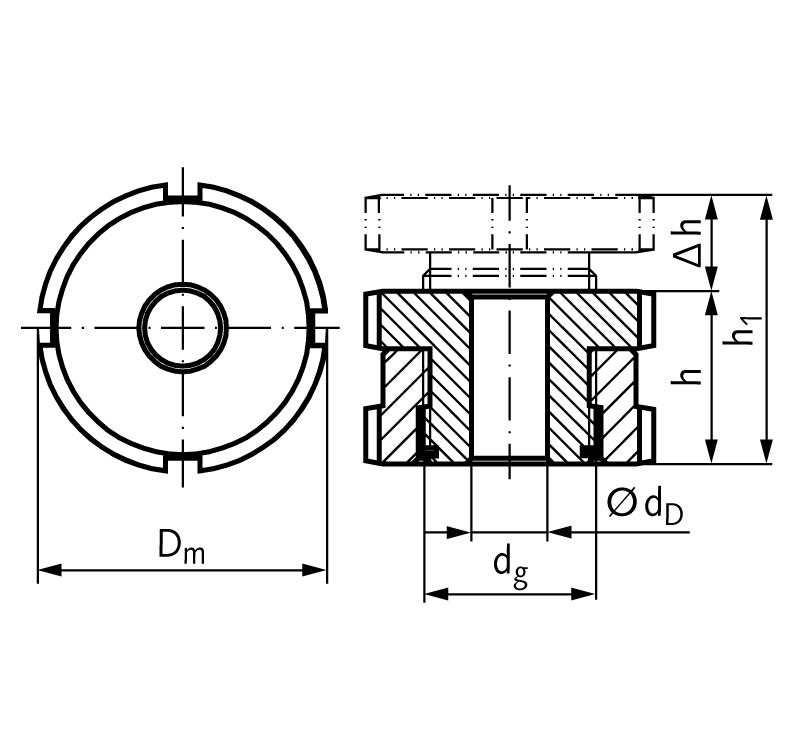

Specifications (automatically extracted)
Mechanical
| Weight | 40 g |
Other characteristics
| Adjustable range | 4 mm |
| Height screwed in | 15 mm |
| Inner diameter | 6.6 mm |
| Load excl preload | 30.7 kN |
| Max height | 19 mm |
| Max load incl preload | 40 kN |
| Outer diameter | 25 mm |
| Material | Steel (4140) |
| Optional screw | M 6 |
| Surface | Zinc-plated (blue) |
| Thread size | M 15×1 |
| Type | MN 686.3 15-6.6 |
Description
Material: 42CrMo4V, Nr. 1.7225, zinc plated and blue passivated. For parall surfaces. Lower overall height with short adjustment travel. Without lock nut. *the static net load Fadd can be calculated after subtracting the pre-load (steel bolt strength class 8.8, stainless steel bolt strenght 6.8) from the total load Ftot. Other sizes on request.
