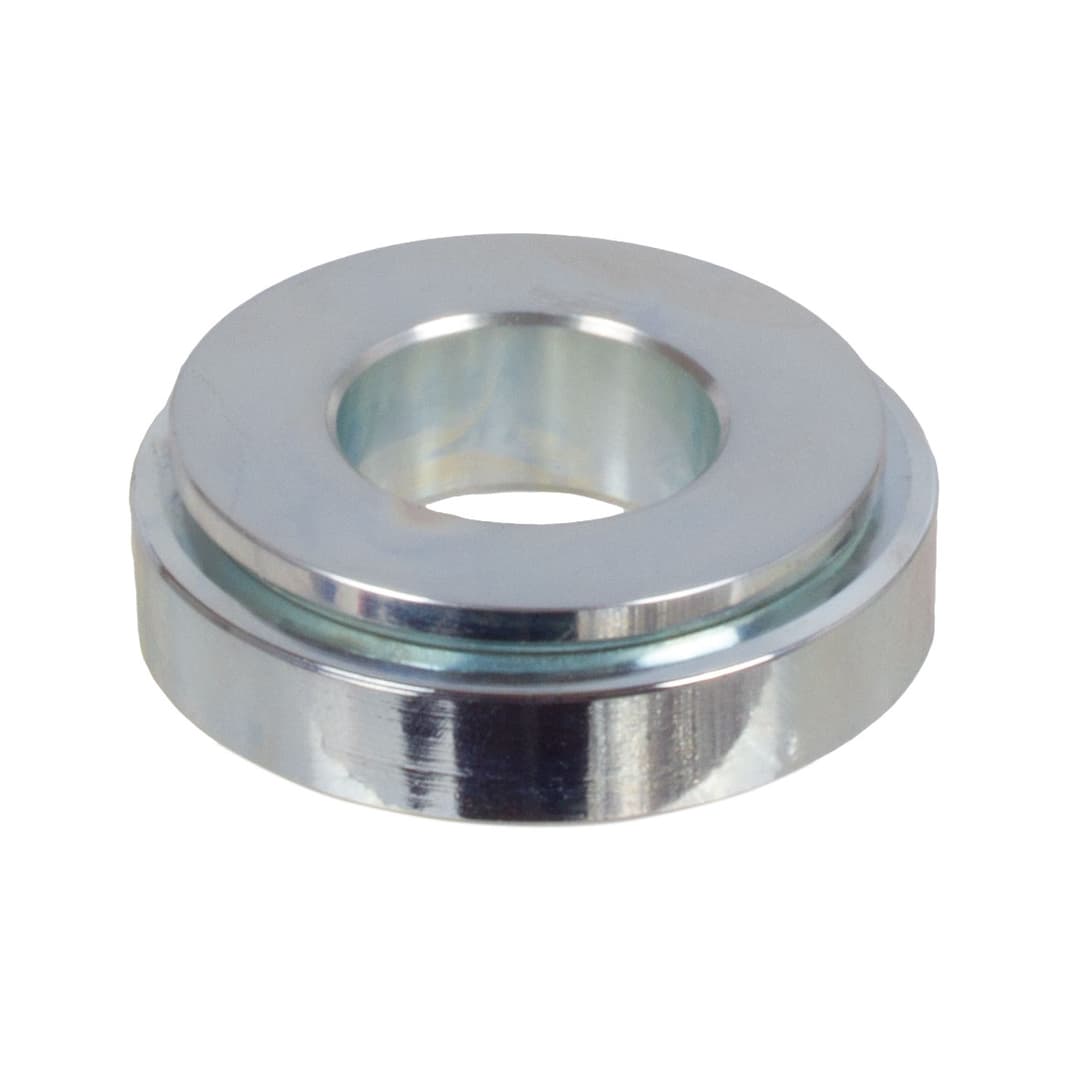

Ball shim MN 686.5 30
Manufacturer part no. 68651500
$23.12≈ 20.08 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €20.08 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.02 |
| Total delivered | €42.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 104 g |
Other characteristics
| Height | 12.5 mm |
| Inner diameter | 20 mm |
| Outer diameter | 45 mm |
| Material | Steel (4140) |
| Optional screw | M 16 |
| Surface | Zinc-plated (blue) |
| Type | MN 686.5 30 |
Description

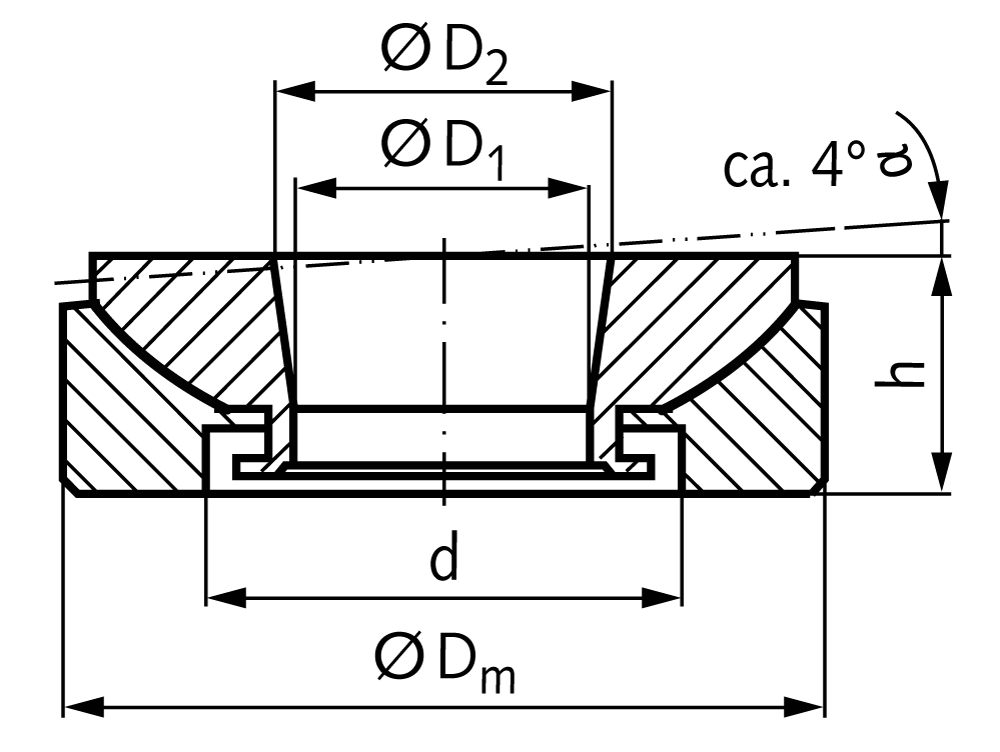

Material: 42CrMo4V, Nr. 1.7225, zinc plated and blue passivated. For an angle of inclination alpha; of up to 4°. If the angle of inclination alpha; exceeds > 1° out of parallel, the use of an additional ball shim MN 686.5 is recommended to assure a stable support of the bolt head. Other sizes on request.
