MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

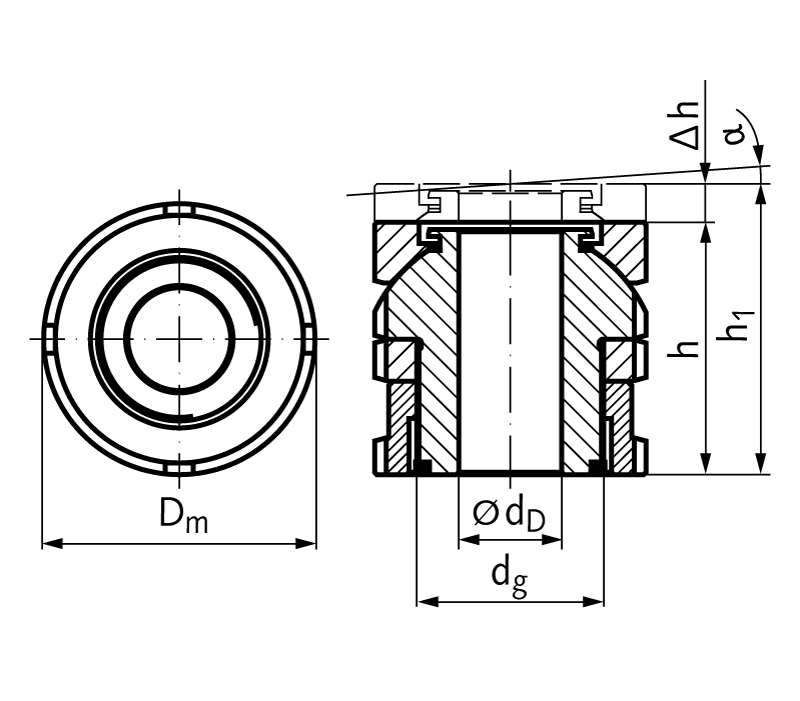

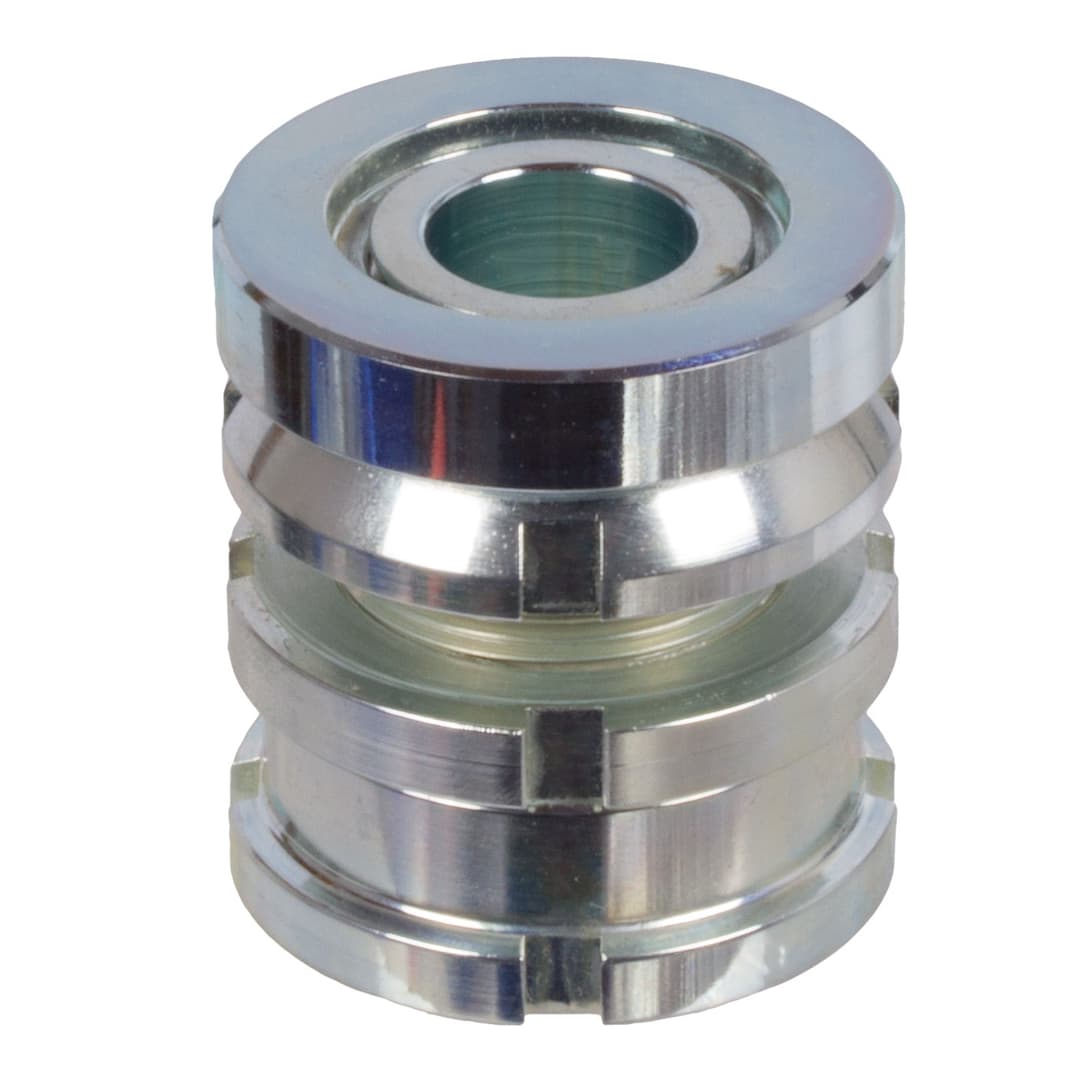

Ball head precision levelling adjuster with locknut MN 686.7 20-9.0
Manufacturer part no. 68671500
$70.24≈ 61.00 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €61.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.20 |
| Total delivered | €91.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 149 g |
Other characteristics
| Adjustable range | 5 mm |
| Height screwed in | 32 mm |
| Inner diameter | 9 mm |
| Load excl preload | 48 kN |
| Max height | 37 mm |
| Max load incl preload | 65 kN |
| Outer diameter | 32 mm |
| Tilt angel 945 ca | 4 ° |
| Material | Steel (4140) |
| Optional screw | M 8 |
| Surface | Zinc-plated (blue) |
| Thread size | M 20×1 |
| Type | MN 686.7 20-9.0 |
Description
Material: 42CrMo4V, Nr. 1.7225, zinc plated and blue passivated. For non-parall surfaces up to 4° slope. Lower overall height with short adjustment travel. With lock nut. *the static net load Fadd can be calculated after subtracting the pre-load (steel bolt strength class 8.8, stainless steel bolt strenght 6.8) from the total load Ftot. Other sizes on request.
