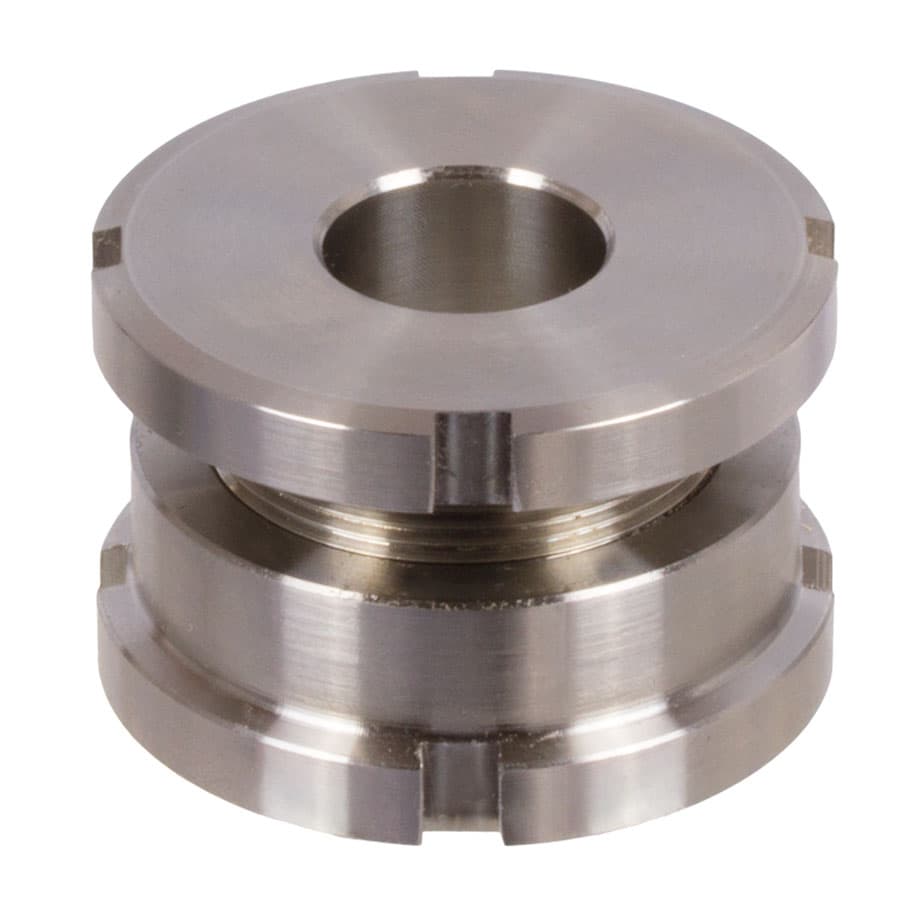

Precision levelling adjuster MN 686.3 40-17.5 stainless steel 1.4301 (AISI 304)
Manufacturer part no. 68699340
$84.65≈ 73.51 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €73.51 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.70 |
| Total delivered | €106.21 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 419 g |
Other characteristics
| Adjustable range | 9 mm |
| Height screwed in | 28 mm |
| Inner diameter | 17.5 mm |
| Load excl preload | 92.9 kN |
| Max height | 37 mm |
| Max load incl preload | 148 kN |
| Outer diameter | 58 mm |
| Material | Stainless steel (304) |
| Optional screw | M 16 |
| Surface | Blank |
| Thread size | M 40×1.5 |
| Type | MN 686.3 40-17.5 |
Description
Material: Stainless steel 1.4301 (AISI 304). For parall surfaces. Lower overall height with short adjustment travel. Without lock nut. *the static net load Fadd can be calculated after subtracting the pre-load (stainless steel bolt strenght 6.8) from the total load Ftot. Other sizes on request.
