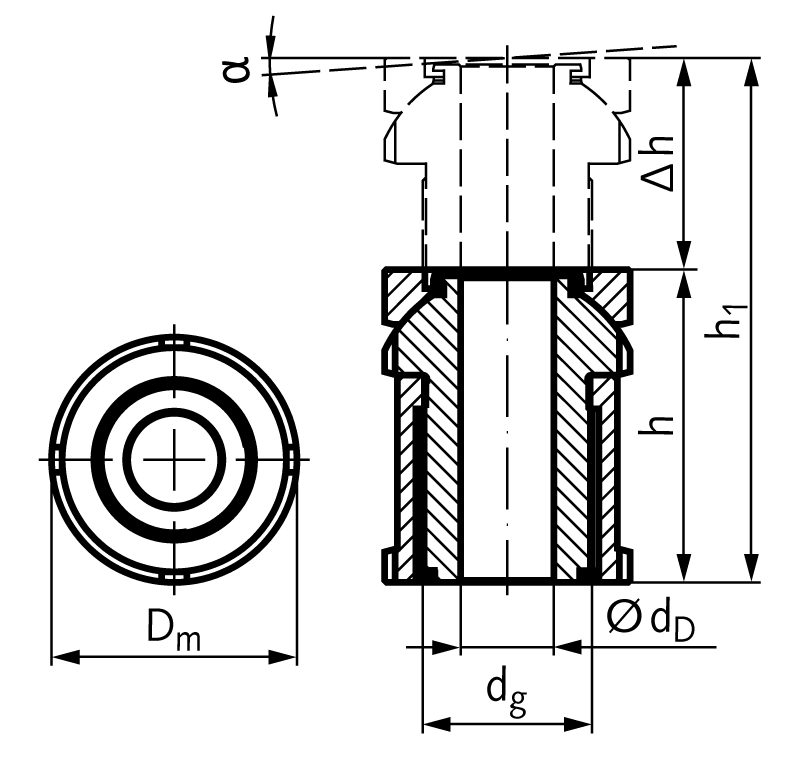

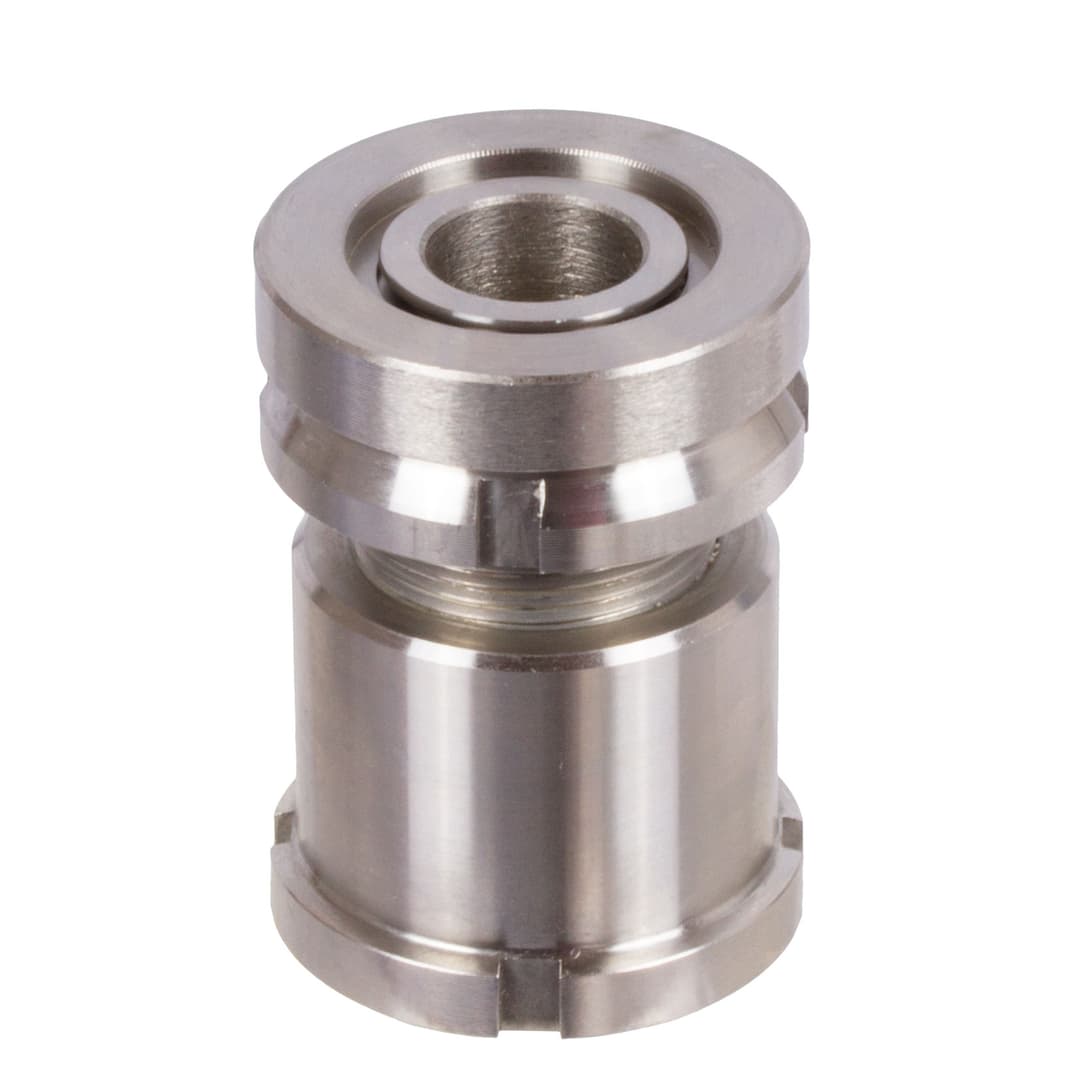

Ball head precision levelling adjuster MN 686.8 20-11.0 stainless steel 1.4301 (AISI 304)
Manufacturer part no. 68699820
$87.81≈ 76.26 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €76.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.25 |
| Total delivered | €109.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 175 g |
Other characteristics
| Adjustable range | 20 mm |
| Height screwed in | 43 mm |
| Inner diameter | 11 mm |
| Load excl preload | 23.41 kN |
| Max height | 63 mm |
| Max load incl preload | 43.4 kN |
| Outer diameter | 32 mm |
| Tilt angel 945 ca | 4 ° |
| Material | Stainless steel (304) |
| Optional screw | M 10 |
| Surface | Blank |
| Thread size | M 20×1 |
| Type | MN 686.8 20-11.0 |
Description
Material: Stainless steel 1.4301 (AISI 304). For non-parall surfaces up to 4° slope. Larger overall height with more adjustment travel. Without lock nut. *the static net load Fadd can be calculated after subtracting the pre-load (stainless steel bolt strenght 6.8) from the total load Ftot. Other sizes on request.
