MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

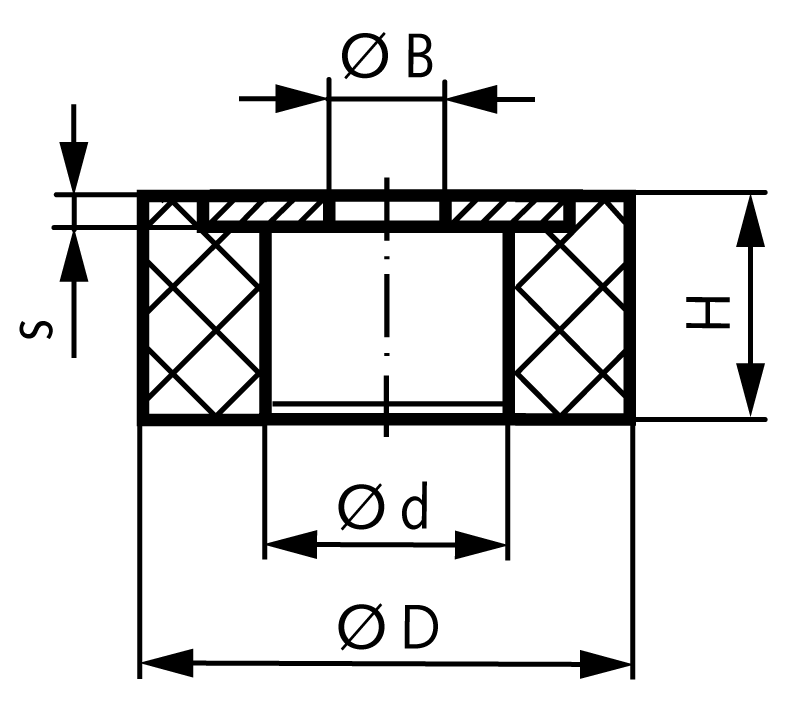

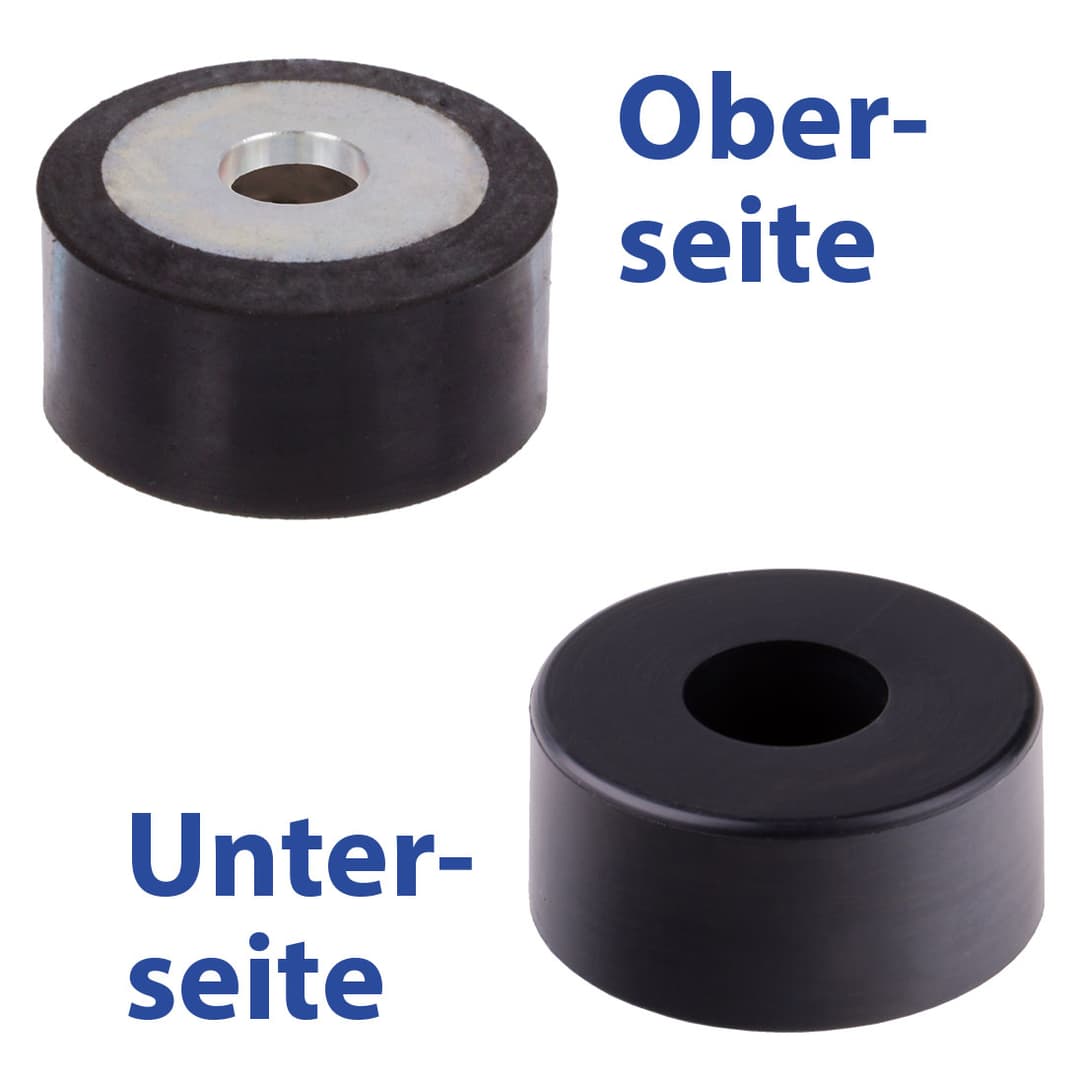

Rubber-metal buffer MGH stainless steel diameter 20mm height 20mm bore 5,3mm (for screw M5)
Manufacturer part no. 68921202
$1.52≈ 1.32 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.26 |
| Total delivered | €19.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7 g |
Other characteristics
| Bore metal part | 5.3 mm |
| Height | 20 mm |
| Inner diameter of rubber | 10 mm |
| Outer diameter | 20 mm |
| Pressure load | 190 N |
| Spring range 20 at fzul | 5 mm |
| Spring rate medium for pressure load | 40 N/mm |
| Thickness of metal part | 1.2 mm |
| Material | Natural rubber / Stainless steel |
| Surface | Blank |
Description
Material: Elastomer: Rubber NBR, black, hardness 55º Shore A. Metal part: Stainless steel 1.4301 (AISI 304). Hollow design. One side metal, with mounting bore for allen screw DIN 912. Due to the hollow design, these elements are particularly suitable as end stops. Also usable as elastic machine feet. The grade of rubber has perfect physical properties. Temperature resistant up to +100ºC (for short time +120°C). Other sizes, Shore hardnesses or elastomer types on request. * Permissible Pressure Load.
