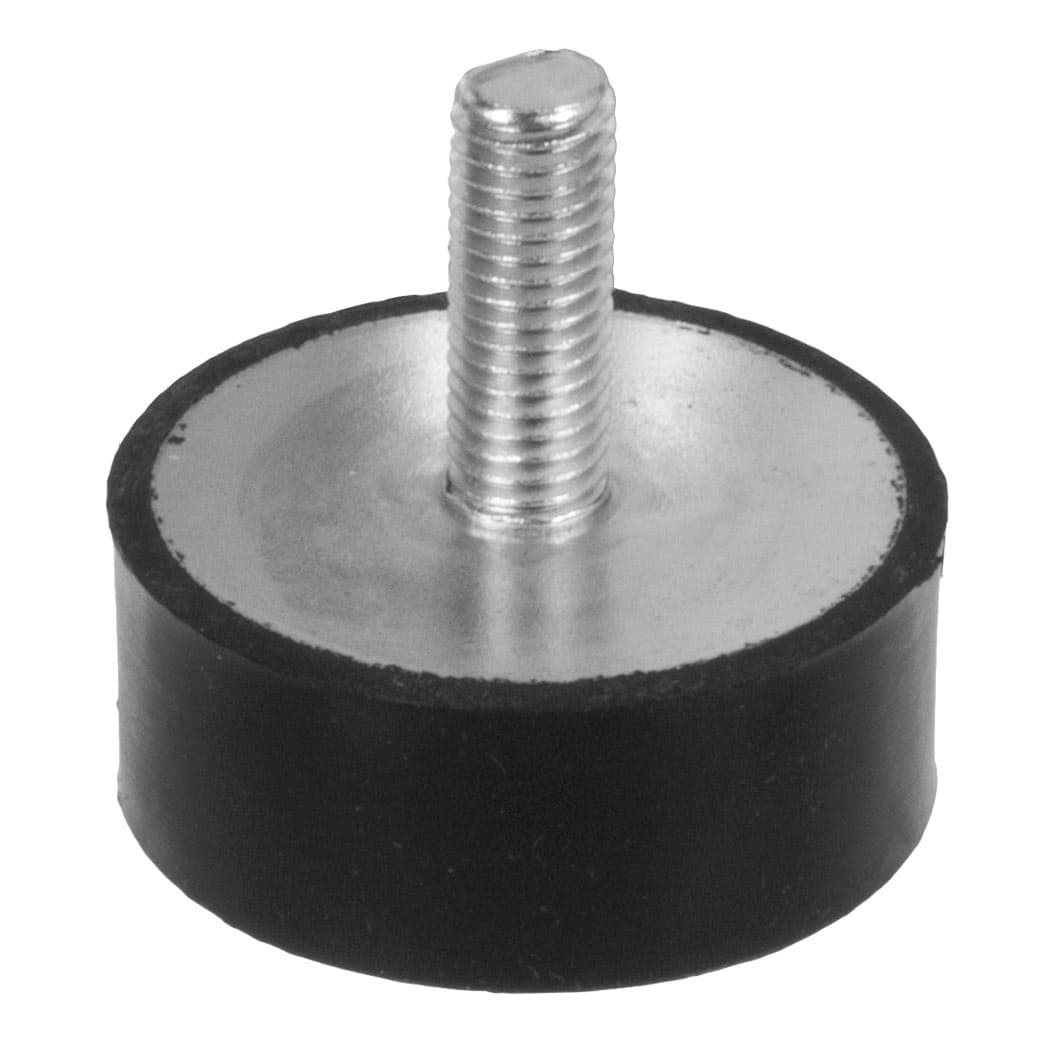

Rubber-metal buffer MGS diameter 15mm height 8mm thread M4 x 10mm stainless steel 1.4301
Manufacturer part no. 68978700
$3.45≈ 3.00 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €3.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.60 |
| Total delivered | €21.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

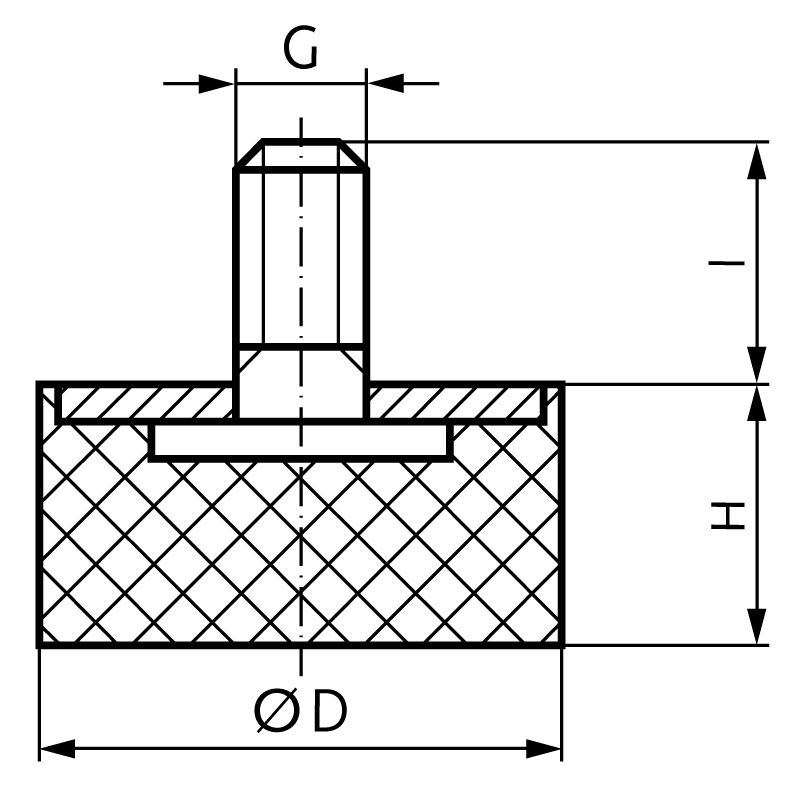

Specifications (automatically extracted)
Mechanical
| Weight | 3.6 g |
Other characteristics
| Height | 8 mm |
| Outer diameter | 15 mm |
| Pressure load | 95 N |
| Spring rate medium | 122 N/mm |
| Thread length | 10 mm |
| Material | Natural rubber / Stainless steel |
| Surface | Blank |
| Thread size | M 4 mm |
Description
Material: Metal parts: Stainless steel 1.4301 (AISI 304). Elastomer: Natural rubber, hardness 55° Shore. Metal on one side only. Metal bumpers can be used to limit bearing surfaces e.g. for elastically mounted power units, and as bump stop to limit the spring travel in vehicles. They can also be used for machines that cannot be fixed to the floor or are standing on floors with an easily damaged surface, e.g. office machines. Temperature resistant up to 80°C.
