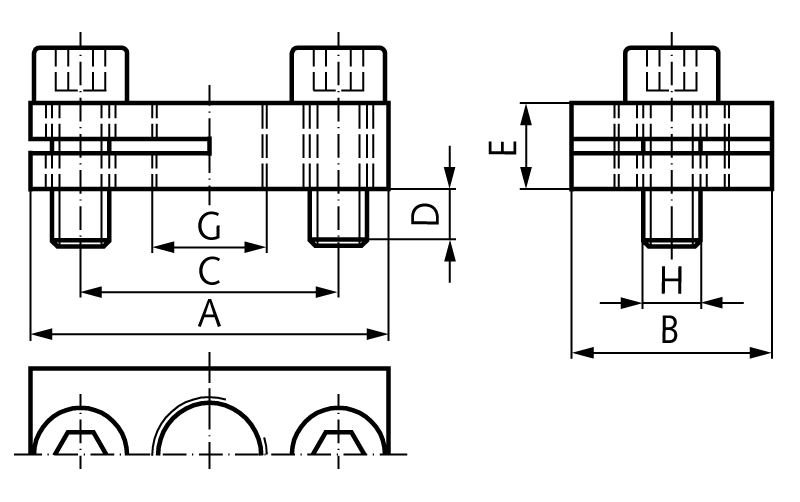

Rectangular flange for miniature shock absorber thread M8x1
Manufacturer part no. 69003003
$32.17≈ 27.94 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €27.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.59 |
| Total delivered | €51.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15 g |
Other characteristics
| Height | 14 mm |
| Length | 25 mm |
| Tightening torque | 4 Nm |
| Width | 6 mm |
| For antishock absorber part no | 690 030 00 |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 8×1 |
Description
Material: Steel, black oxide finish. The rectangular flange allows front-end mounting without using an additional lock nut. The low and compact design allows space-saving constructions. 2 socket-head screws DIN 912 are included with the flange.
