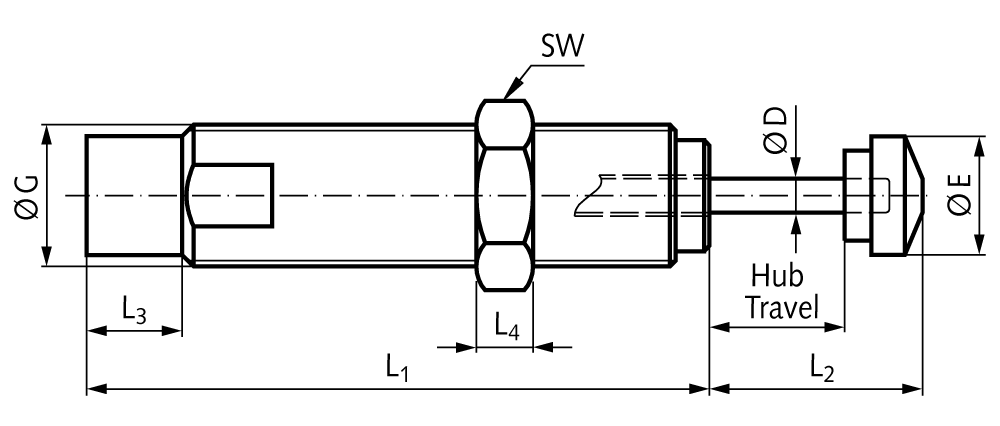

Miniature shock absorber 2,3-226 kg travel 19mm thread M20x1,5
Manufacturer part no. 69022500
$196.46≈ 170.61 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €170.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €37.12 |
| Total delivered | €222.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 130 g |
Other characteristics
| Bolt diameter | 4.8 mm |
| Effective weight max adjustable | 226 kg |
| Effective weight min adjustable | 2.3 kg |
| Head diameter | 17 mm |
| Length of shock absorber | 88 mm |
| Max energy absorption per hour | 45 000 Nm |
| Max energy absorption per stroke | 25 Nm |
| Nut width | 8 mm |
| Piston reset time | 0.1 s |
| Stroke | 19 mm |
| Stroke length with head | 30 mm |
| Wrench size | 23 mm |
| Head shape | C Nm |
Description
Material: Shock absorber and accessories: Steel, black oxide finish. Button: hardened. Piston rod: hardened, stainless steel. Miniature shock absorbers are maintenance-free, self-contained, hydraulic elements. The adjustable miniature shock absorbers can be perfectly set up for the respective application. They include an integrated mechanical stop. Due to the long stroke length, the unit offers smooth deceleration and low reaction forces. These shock absorbers are ideal for absorbing fast movements in small linear units, handling modules, robotics systems and other applications. Adjustment: by turning the adjustment screw. After installation, cycle the machine a few times, turning the adjustment screw until optimum deceleration is achieved. Impact velocity range: 0.3 up to 3.6 m/s. W4 capacity rating (max. energy per hour) is possible, if the unit is turned off from time to time or the shock absorber is cooled with cylinder exhaust air. Mounting: in any position. Permissible temperature range: 0ºC up to 66ºC.
