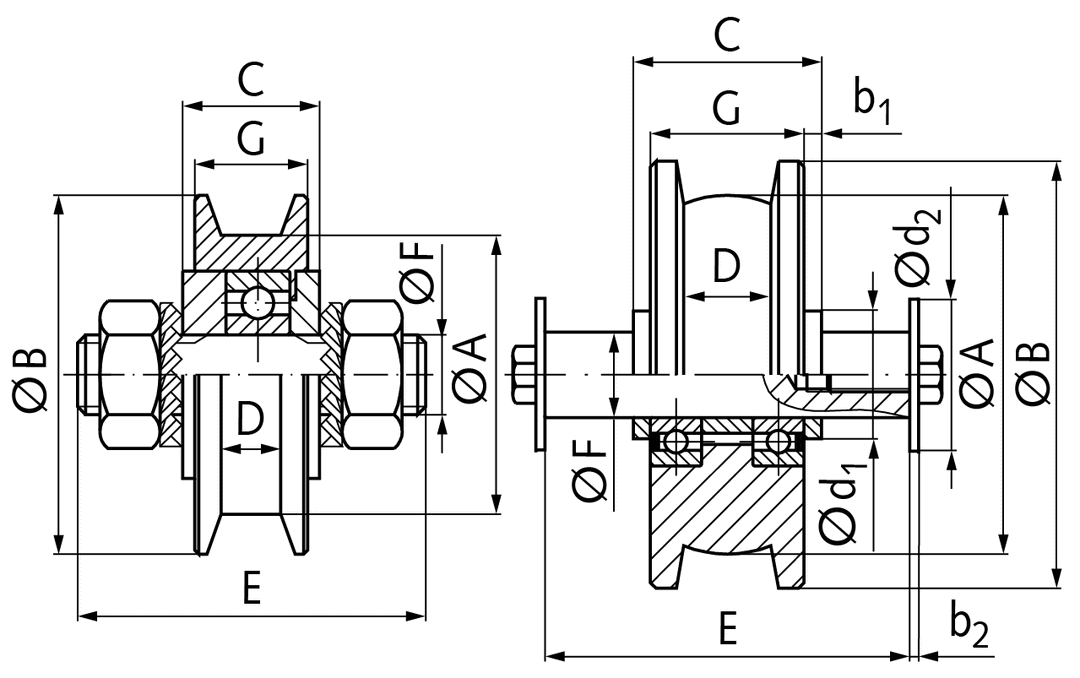

Crane wheel made of C 45 with axle shaft diameter 100mm
Manufacturer part no. 77601000
$199.44≈ 173.20 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €173.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €37.64 |
| Total delivered | €225.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.35 kg |
Other characteristics
| Bolt diameter | 25 mm |
| Diameter of runing surface | 100 mm |
| Diameter of washers | 37 mm |
| Outer diameter with flanges | 125 mm |
| Total length with bolt | 96 mm |
| Washer width | 3 mm |
| Wheel load max. | 960 kg |
| Width of runing area | 25 mm |
| Width with flanges | 40 mm |
| Width with hubs | 46 mm |
| Ball bearing | 2 x 6205 2Z |
| Material | Steel (1045) |
| Mounting elements | Hexagon-screw M12 x 16 mm |
Description
Especially suited for heavy-duty applications, e.g. electrically controlled gates. Precisely turned from solid material; with fully sealed precision bearings. Wheel body black oxide finish. Product No. 776 004 00 and 776 005 00 with square running surface and single bearing, Product No. 776 006 00 to 776 016 00 with convex running surface and double bearing. Delivery includes all mounting material needed; axle bolt at running surface Ø 35 and 45 mm with external thread, serrated washer and hexagon nuts, other sizes with internal thread, 6 hexagon screws and washers DIN ISO 7093-1. * The wheel loads stated are derived from the dimensions and temperatures listed in the roller bearing cataloques. For product No. 776 004 00 and 776 005 00 these values are valid at a maximum operating temperature of 90°C; for higher continuous temperatures, please inquire first. ** Rails are not part of our stock. Please inquire at your steel supplier.
