MÄDLERMÄDLER· Pneumatic Elements

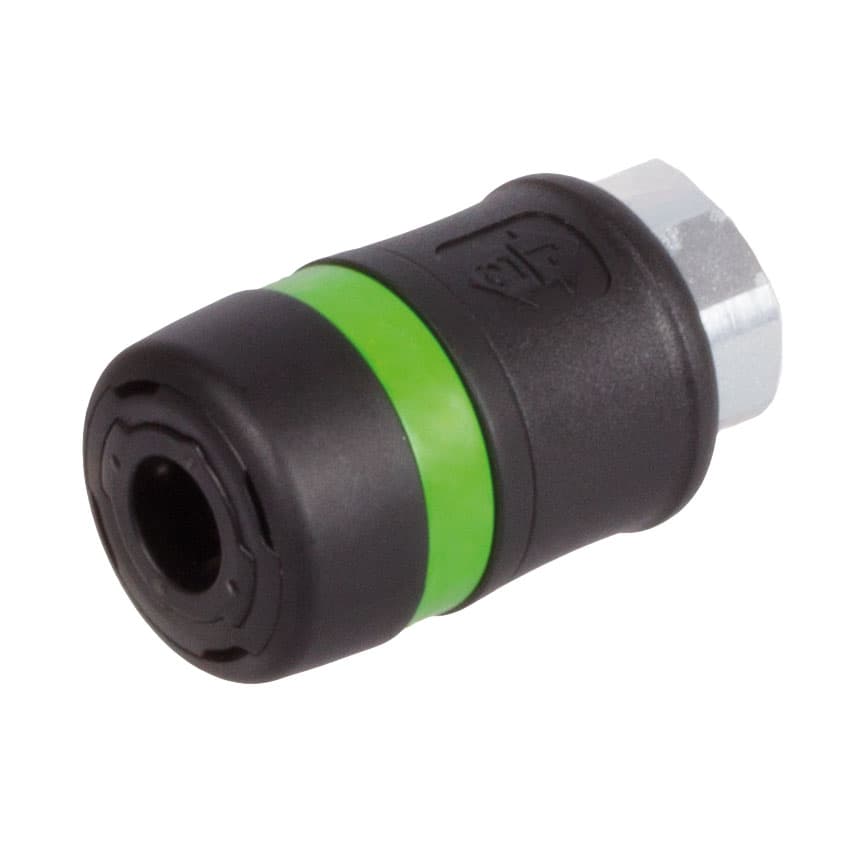

Safety connector G 3/8
Manufacturer part no. 87040138
$47.21≈ 41.00 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €41.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.20 |
| Total delivered | €67.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
Other characteristics
| Length of handle | 49 mm |
| Outer diameter | 32 mm |
| Total length | 60 mm |
| Connection | G 3/8″ |
| Material | Composite |
| Surface | Blank |
Description
Safety quick-release couplings ISO 4414, DIN-Standard EN 983. Adaptor profile 7.2 German standard. The safety locking system of the safety coupling stops the dangerous „whip effect“. The novel locking system of the coupling offers optimum tightness at low coupling forces. Innovative, patented technology. Perfect performance and safety. Material: Composite material. Air-flow-Ø: 7.2/7.4 mm. Air flow: 1470 l/min ΔP: 0.6 bar. 1920 l/min ΔP: 1 bar. Adaptor profile: NW 7.2 and NW 7.4. Operating pressure: 2 to 12 bar. Max. operating pressure: 16 bar. Temperature range: -15ºC to +70ºC.
