MÄDLERMÄDLER· Freewheels, Backstops, Overrunning Clutches
Internal freewheels TSS-15 inner diameter 15mm outer diameter 35mm width 11mm with keyway at inner ring
Manufacturer part no. TSS15
$135.41≈ 117.59 €
On backorderlead time 14 d
Estimated landed cost
| Item | €117.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.52 |
| Total delivered | €159.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 224.334 kg·cm |
| Weight | 39 g |
Other characteristics

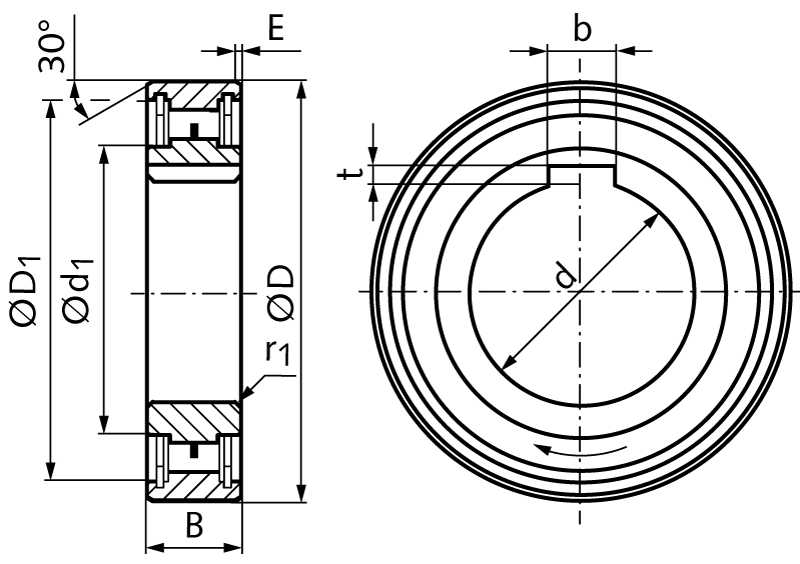

| B | 11 mm |
| D | 35 mm |
| D h7 | 15 mm |
| D1 | 20.6 mm |
| Drag torque | 0.01 Nm |
| E | 0.6 mm |
| Max overrunning inner race | 3 500 |
| Max overrunning outer race | 1 800 |
| R1 | 0.6 mm |
| T | 1.2 mm |
Description
These sprag freewheels without own bearing support in premium quality can be used as indexing freewheels, backstops or overrunning clutches. They allow a compact design and are installed in housings provided by the customer. The user must ensure proper bearings, lubrication and sealing during installation. Radial forces are not permitted. The nominal dimensions d x D x B correspond to the dimensions of ball bearing series 62. With keyway on the inner ring. Keyway: The keyway is up to diameter d=12mm according to DIN 6885-1. Above that according to DIN 6885-3. Mounting: For the bearing and the freewheel, the same installation tolerances must be provided. Recommended housing tolerance H7. For the shaft h7. During installation, care must be taken to ensure the correct direction of rotation. The direction of rotation is indicated by a marking arrow on the freewheel. Lubrication: Oil lubrication, see Additional Documents. Oils or other lubricants containing EP additives must not be used. Temperature range: approx. -10°C to + 50°C. Other versions on request.
