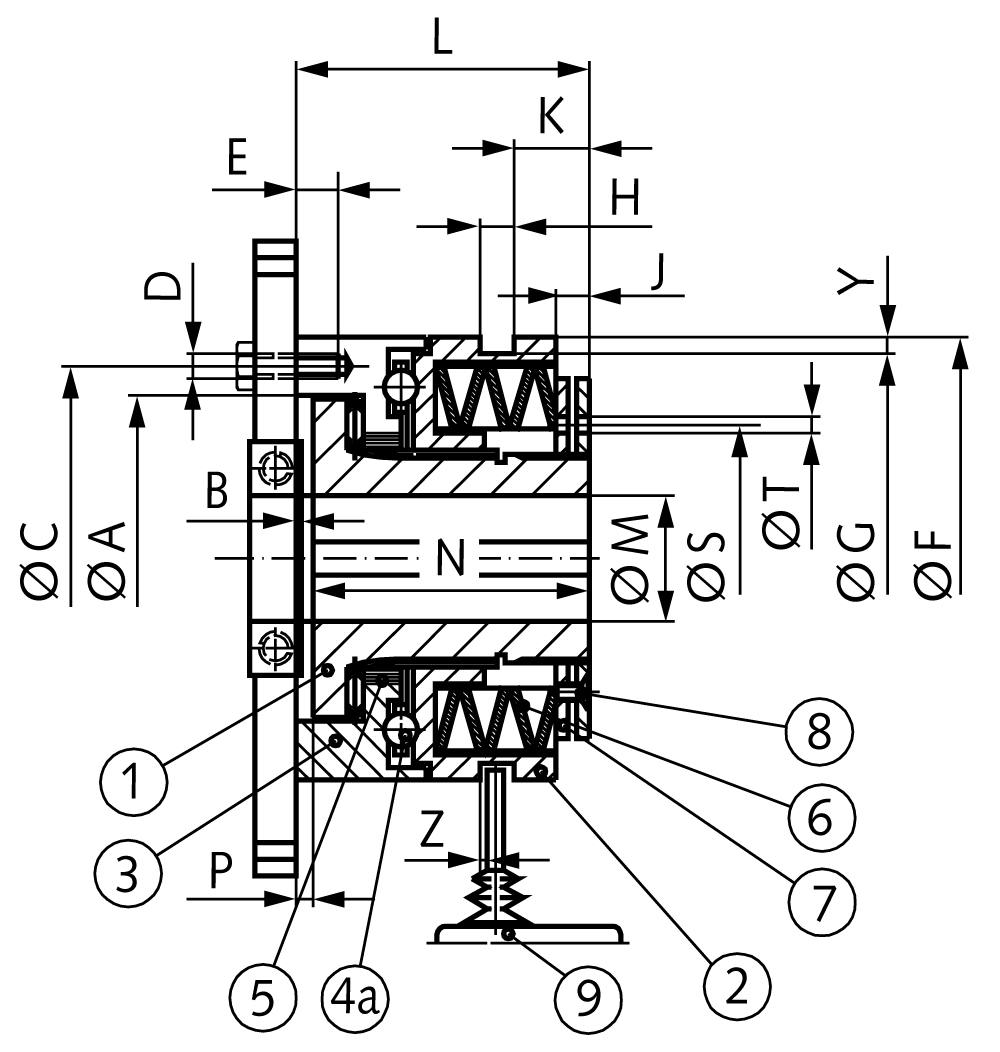

Name: Safety clutch CM Gr. 25
Brand: MÄDLER
Price: 682.18 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

1.5 kg

Other characteristics

Length	52 mm
Max bore diameter	25 mm
Min bore diameter	10 mm
Outer diameter	82 mm
Pitch circle diameter for mounting bolts	70 mm
Size	25
Spring set l partno	61 262 503
Spring set ll partno	61 262 504
Spring set m partno	61 262 502
Spring set s partno	61 262 501
Material	Steel
Max speed with spring set l or ll	1450 min-1
Max speed with spring set s or m	2890 min-1

Description

Material: Steel. Overload system operating on the positive principle, available in 5 sizes. For each size there are 4 different disk-plate sets for different torque ranges. The required disk-plate set S, M, L or LL has to be ordered separately and is supplied unassembled. When mounting simple driving elements, as sprockets, pulleys, etc., always make sure the shaft is supported. Optimal protection against overloads. Trigger torque can be adjusted. High reproducibility of the triggering and re-engaging process. Robust design, long service life, absolutely maintenance free. Immediate free-wheeling of the drive. Automatic emergency stop of the driving unit through switch (to be ordered seperately). Not negatively affected by frequent triggering sequences. The optional limit switch (emergency-stop switch) for all sizes Product No. 612 605 00 has to be ordered seperately. On request with works adjustment of torque limit. Customized bores and feather-key grooves available at surcharge. Other types on request: Beside the standard type (dis-engaging / re-engaging), there are synchron types, lock types and releasing types available.
