MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings
Disc spring set S for safety clutch CM size 25 Nr.61262500 consisting of 6 springs strength S
Manufacturer part no. 61262501
$89.38≈ 77.62 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €77.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.52 |
| Total delivered | €111.14 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 46.5 mm |
| Number of springs | 6 |
| Outer diameter | 66.5 mm |
| Thickness | 1 mm |
| Weight per set | 0.077 kg |
| Disc spring set type | S |
| Mounting arrangement | 6 x 1 |
| Torque | 6 – 12 Nm |
Description

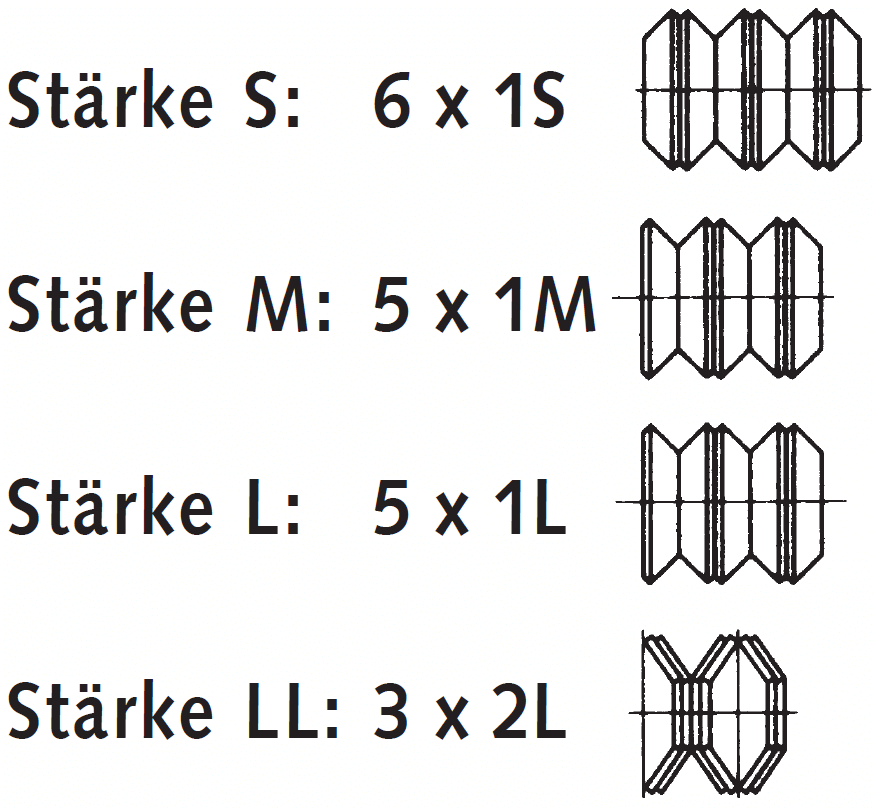

Material: Special spring-steel. Fitting to coupling product no. 61262500. Delivery: Complete set. The disks have to be mounted like scetch above / PDF-catalog page.
