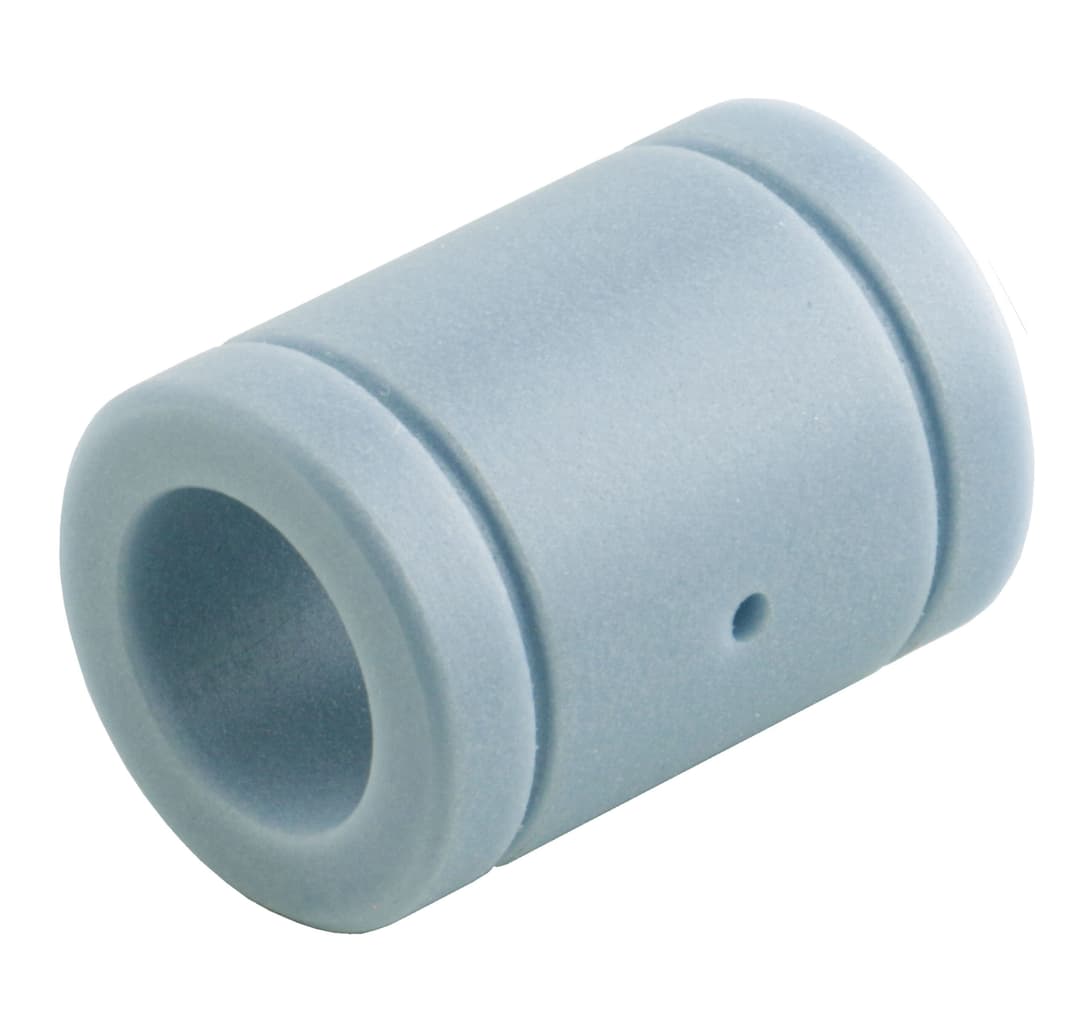

Linear slide bearing PO-3 ISO series 3 premium for shaft diameter 40mm
Manufacturer part no. 64624000
$141.62≈ 122.99 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €122.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.60 |
| Total delivered | €165.59 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| For shaft diameter | 40 mm |
| Length | 80 mm |
| Load rating dynamic at 0 1m s | 8 000 N |
| Load rating dynamic at 4m s | 200 N |
| Outer diameter | 62 mm |
| Static load rating | 28 000 N |
| Material | Plastic |
| Suitable snap ring din471 | 617 462 00 |
| Surface | Blank |
Description
Material: Polyacetal with a specific polyethylene. Linear slide bearings have the same external dimensions as the linear bearings of the ISO Series 3. The linear slide bearings should be specifically chosen if, due to unusual operating conditions, linear bearings cannot be used. Linear slide bearings feature the same mounting and securing options as the linear bearings of the ISO Series 3 and can be fitted in the same housings. Temperature range: -40°C to +80°C.
