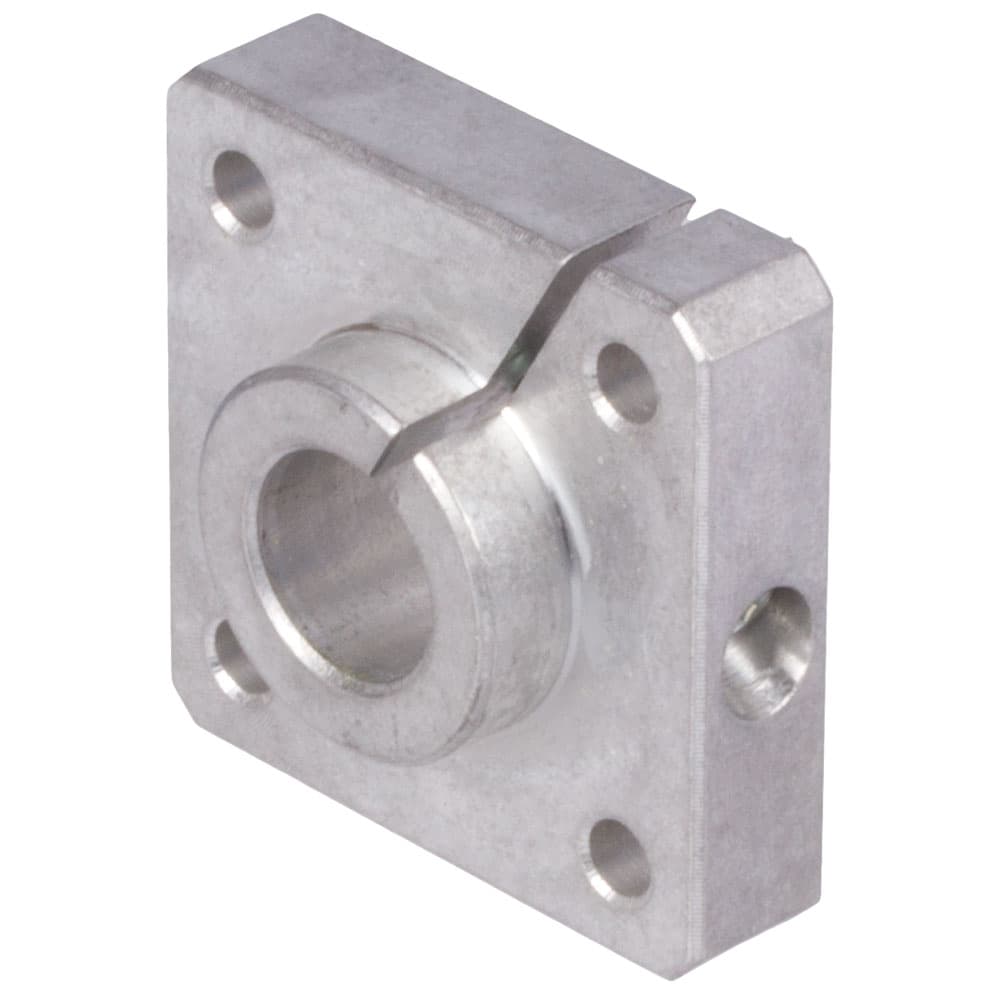

Flange shaft block GWF for shaft diameter 16m

MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

Flange shaft block GWF for shaft diameter 16m

Name: Flange shaft block GWF for shaft diameter 16m
Brand: MÄDLER
Price: 52.96 USD
Availability: InStock

Manufacturer part no. 64640116

$52.96≈ 45.99 €

In stock — 5 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€45.99
Shipping	€15.00
VAT (20%)	€12.20
Total delivered	€73.19

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

80 g

Other characteristics

For shaft diameter	16 mm
Height	20 mm
Width	50 mm
Clamp screw size	M 4
Material	Aluminum
Surface	Blank

Description

Material: Extruded aluminium. Clamp screw DIN 912, steel, strength 8.8, zinc-plated. Universal use shaft blocks, e.g. for flange connection of guide shafts.
