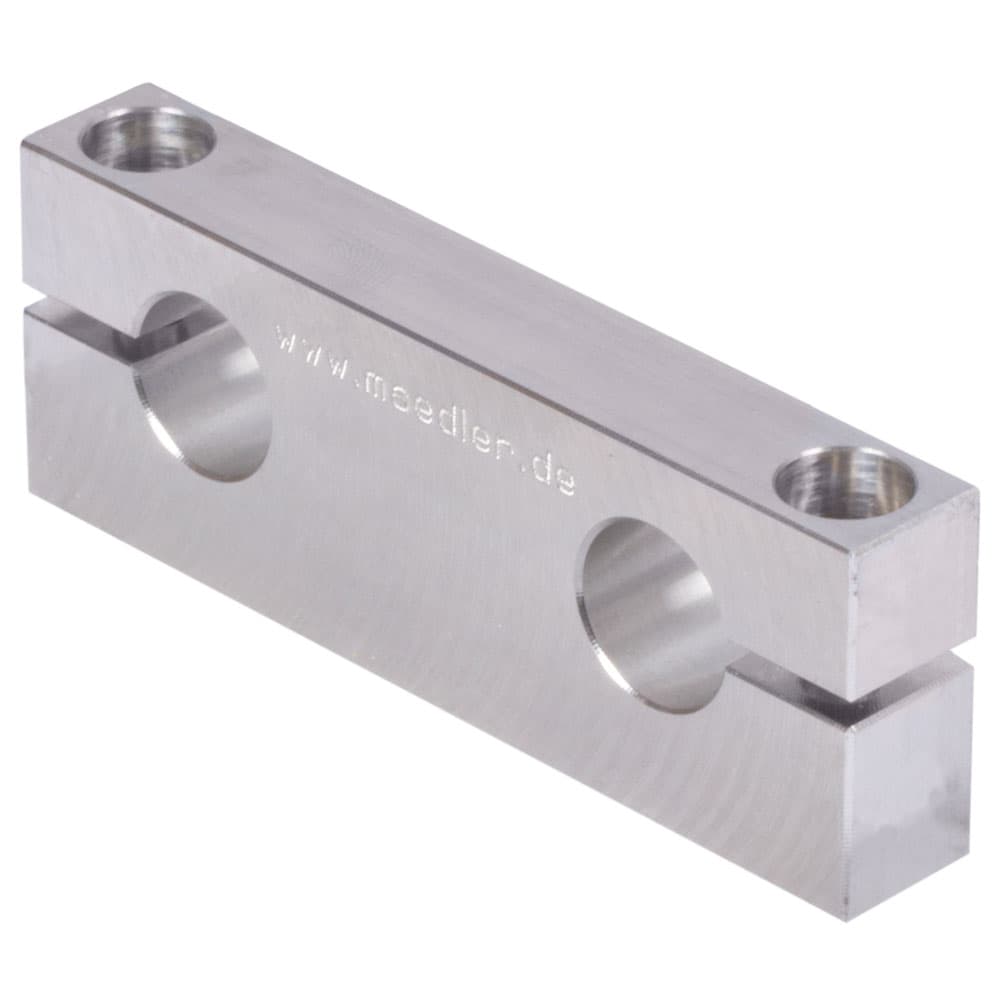

Double shaft block GWD-1 ISO series 1 for shaft diameter 30mm
Manufacturer part no. 64640230
$85.70≈ 74.42 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €74.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.88 |
| Total delivered | €107.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 320 g |
Other characteristics

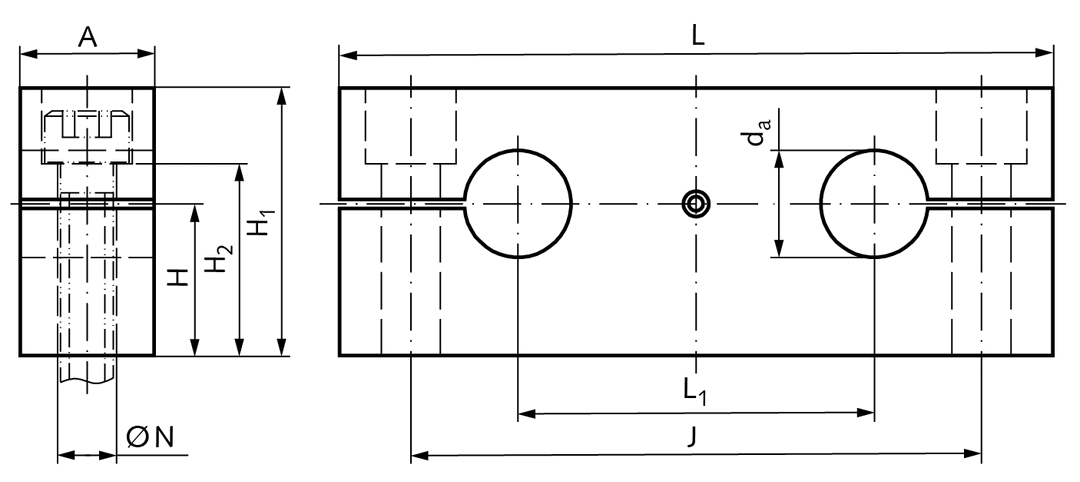

| For shaft diameter | 30 mm |
| Height | 56 mm |
| Length | 146 mm |
| Width | 20 mm |
| Material | Aluminum |
| Surface | Blank |
Description
Material: Extruded aluminium. Matching quadro linear-bearing units KGQ-1 of the ISO Series 1. These tandem shaft blocks are practical and robust machine elements, that provide a simple way of attaching the guiding shaft of the linear bearings on the respective machine parts. They allow true to size and, most important, cost efficient constructions. *For cylindrical screws with Allen screw according to DIN 912 or ISO 4762. * For cylindrical screws with Allen screw according to DIN 912 or ISO 4762.
