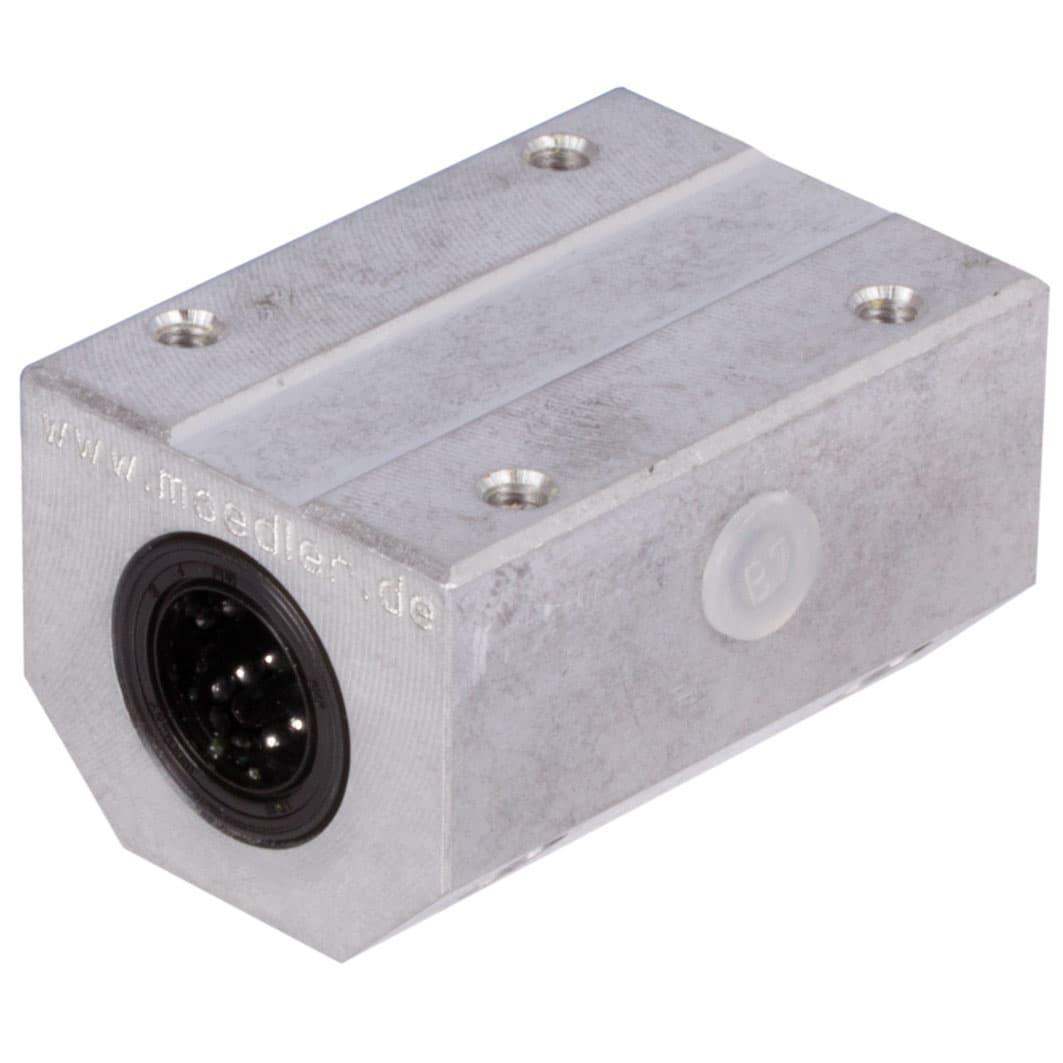

Tandem linear-bearing unit KGT-1 ISO series 1 premium with double rubber seal for shaft diameter 25mm
Manufacturer part no. 64640325
$192.53≈ 167.20 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €167.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €36.44 |
| Total delivered | €218.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

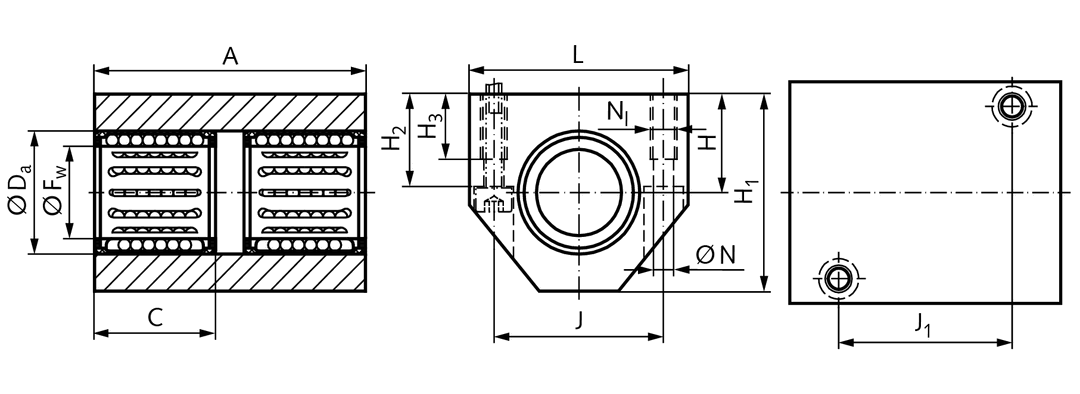

Specifications (automatically extracted)
Mechanical
| Weight | 540 g |
Other characteristics
| For shaft diameter | 25 mm |
| Height | 54 mm |
| Length | 85 mm |
| Load rating | 3 450 kN |
| Width | 62 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with two compact linear bearings of the ISO Series 1 from premium brand in top quality, with integral double-lip seals. Lubricated ready-to-install.Recommended shaft tolerance h6. * when mounting from the bottom side choose the next smaller screw size.
