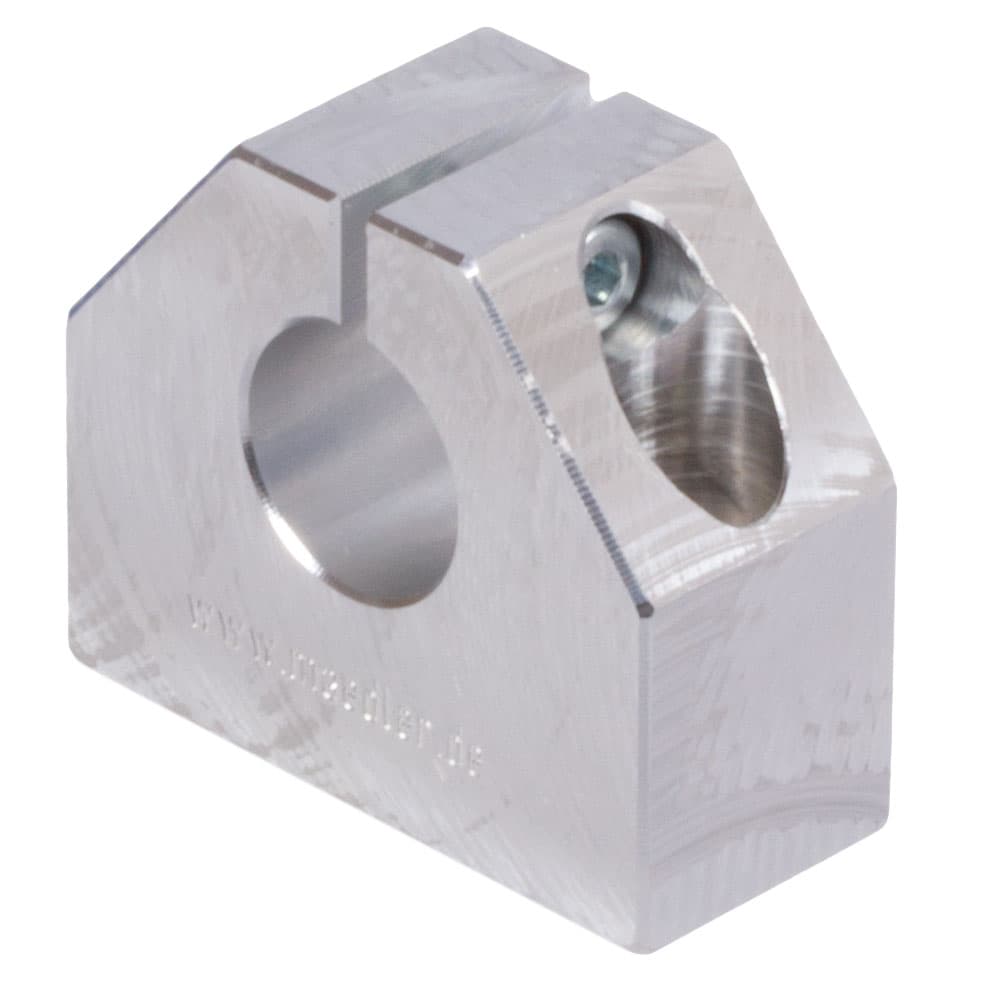

Precision shaft block GW-1 ISO series 1 for shaft diameter 6mm
Manufacturer part no. 64640606
$20.21≈ 17.55 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €17.55 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.51 |
| Total delivered | €39.06 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 30 g |
Other characteristics
| For shaft diameter | 6 mm |
| Height | 27 mm |
| Length | 32 mm |
| Width | 16 mm |
| Material | Aluminum |
| Surface | Blank |
Description
Material: Extruded aluminium. Matching linear-bearing units of ISO Series 1. Shaft blocks are practical and robust machine elements, that provide a simple way of attaching the guiding shaft of the linear bearings on the respective machine parts. They allow true to size and, most important, cost efficient constructions. * when mounting from above choose the next smaller screw size.
