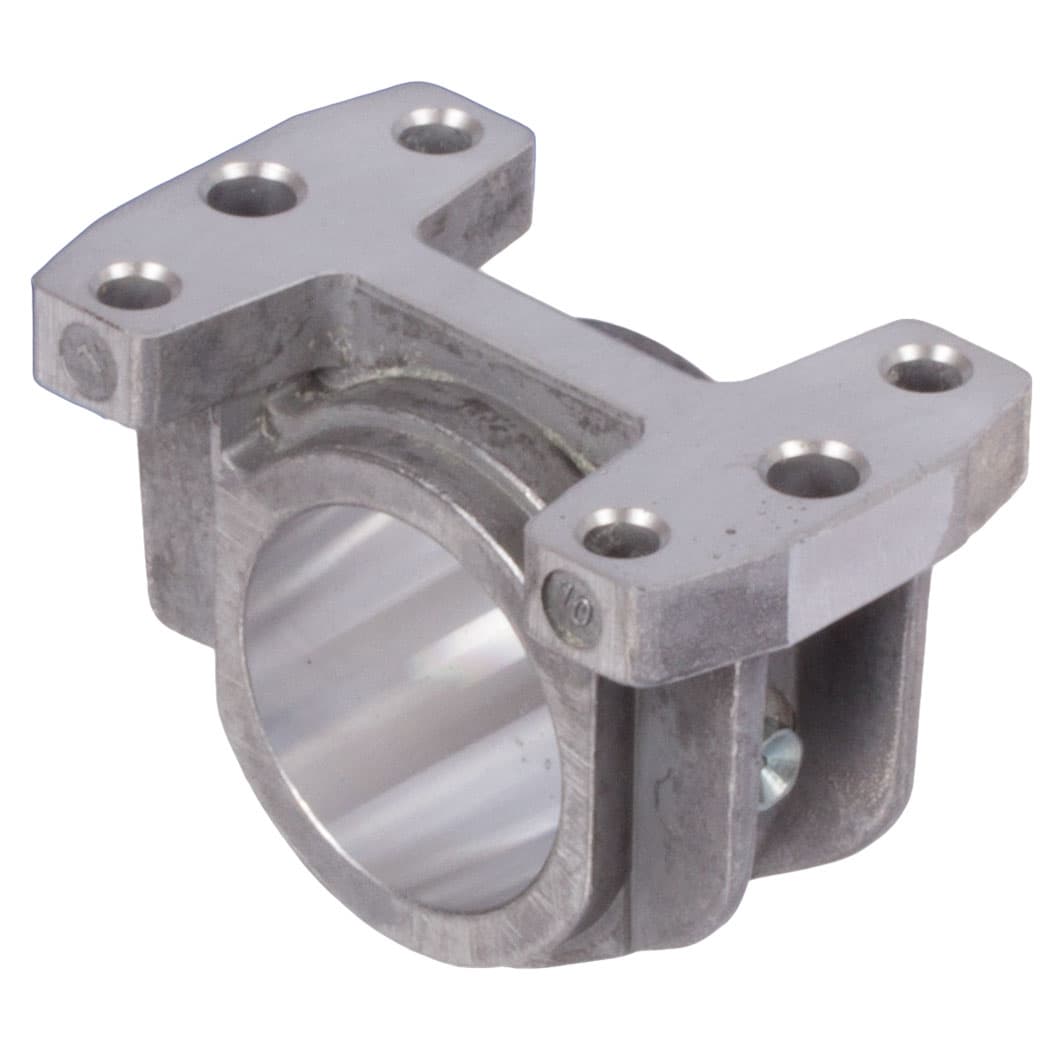

Precision housing KG ISO series 3 bore 47mm closed for linear bearing for shaft Ø 30mm
Manufacturer part no. 64653000
$99.65≈ 86.54 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €86.54 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.31 |
| Total delivered | €121.85 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |
Other characteristics

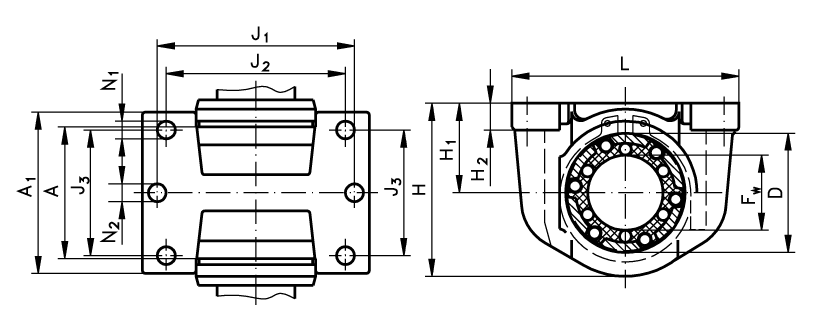

| For shaft diameter | 30 mm |
| Height | 67 mm |
| Length | 88 mm |
| Width | 59 mm |
| Material | Aluminum die-cast |
| Optional ball bearing with double lip | 646 130 00 |
| Optional ball bearing with shields | 646 030 00 |
| Suitable slide bearing | 646 230 00 |
| Suitable snap ring din471 | 617 447 00 |
| Surface | Blank |
Description
Material: Aluminium die-cast. Light housing for linear bearings of closed design, ISO Series 3 (linear bearing has to be ordered separately). The housings can be mounted standing, upside-down or horizontally. The bearing is secured in the housing against axial and radial movement with a grease nipple.
