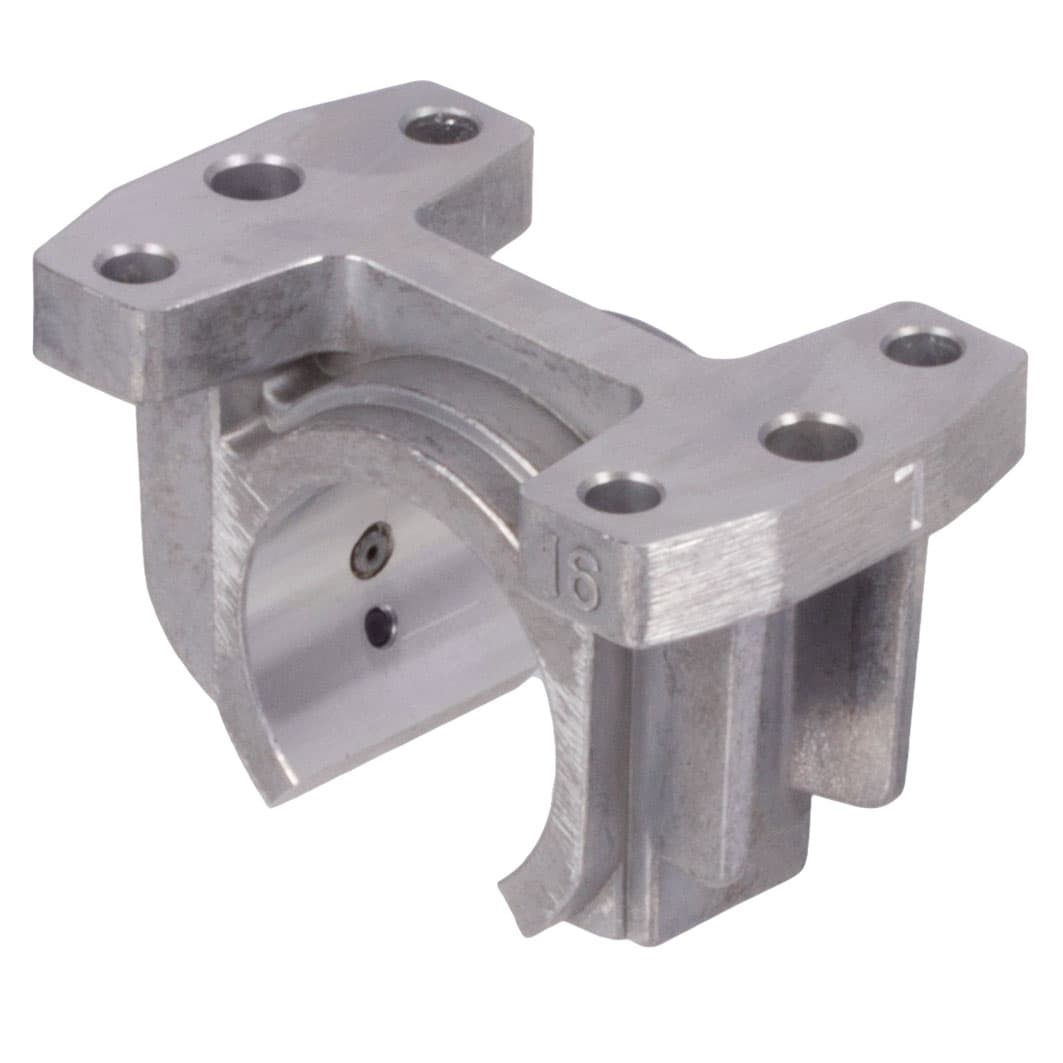

Open precision housing KG-O ISO series 3 bore 47mm for open linear bearing for shaft Ø 30mm
Manufacturer part no. 64653001
$192.11≈ 166.83 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €166.83 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €36.37 |
| Total delivered | €218.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

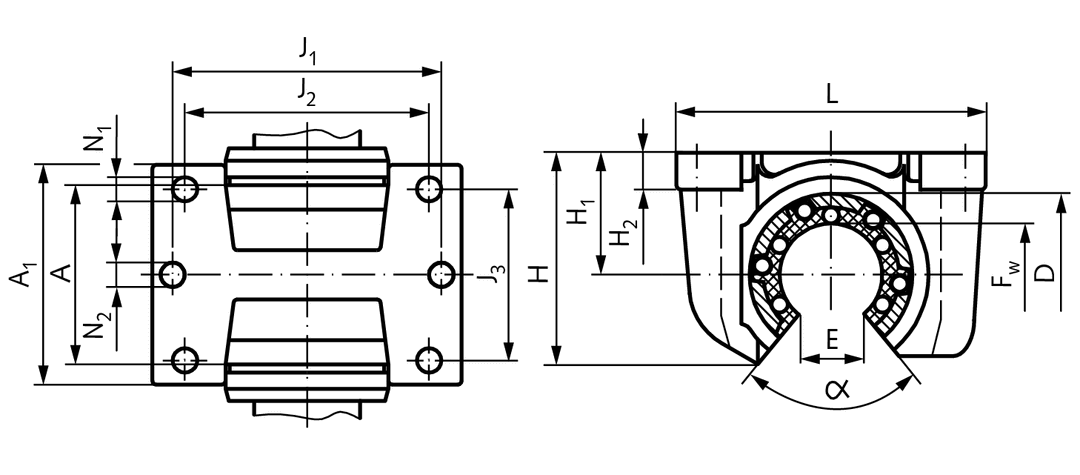

Specifications (automatically extracted)
Mechanical
| Weight | 260 g |
Other characteristics
| Angle | 50 ° |
| For shaft diameter | 30 mm |
| Height | 60 mm |
| Length | 88 mm |
| Width | 59 mm |
| Material | Aluminum die-cast |
| Optional ball bearing with double lip | 646 130 01 |
| Optional ball bearing with shields | 646 030 01 |
| Suitable slide bearing | 646 230 01 |
| Surface | Blank |
Description
Material: Aluminium die-cast. Light housing for linear bearings of open design, ISO Series 3 (linear bearing has to be ordered separately). The housings can be mounted standing, upside-down or horizontally. The bearing is secured in the housing against axial and radial movement with a grease nipple.
