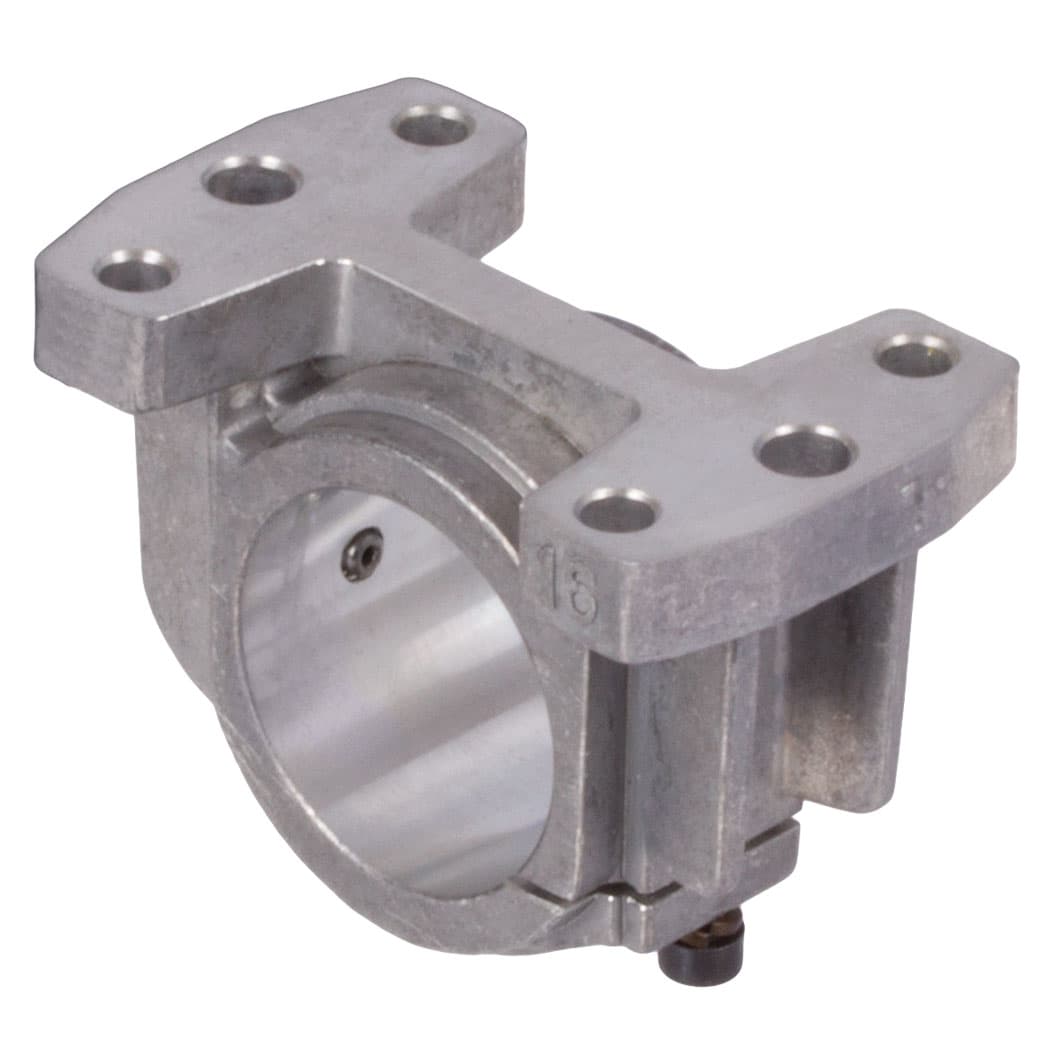

Precision housing KG ISO series 3 bore 26mm slotted for linear bearing for shaft diameter 16mm
Manufacturer part no. 64661600
$70.02≈ 60.81 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €60.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.16 |
| Total delivered | €90.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 54 g |
Other characteristics

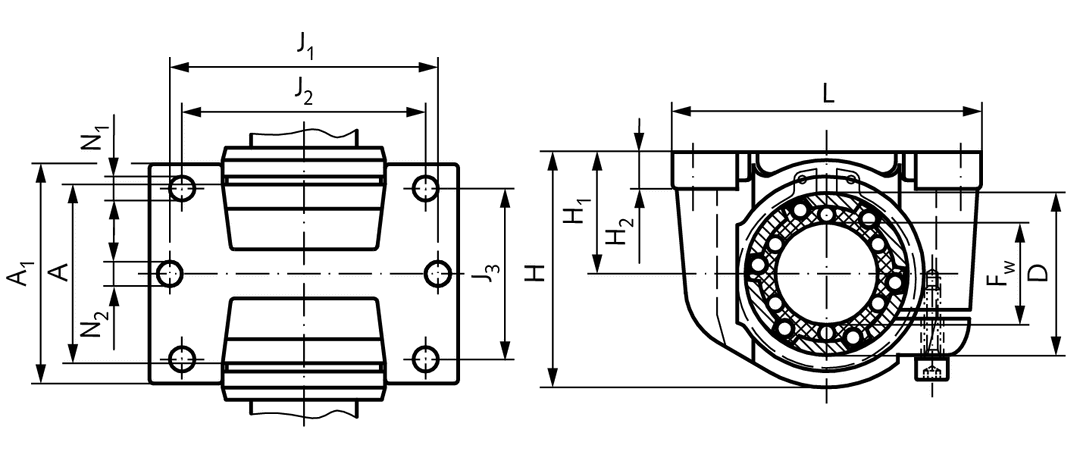

| For shaft diameter | 16 mm |
| Height | 40.5 mm |
| Length | 56 mm |
| Width | 34.5 mm |
| Material | Aluminum die-cast |
| Optional ball bearing with double lip | 646 116 00 |
| Optional ball bearing with shields | 646 016 00 |
| Suitable slide bearing | 646 216 00 |
| Suitable snap ring din471 | 617 426 00 |
| Surface | Blank |
Description
Material: Aluminium die-cast. Light housing for linear bearings of closed design, ISO Series 3 (linear bearing has to be ordered separately). The housings can be mounted standing, upside-down or horizontally. The bearing is secured in the housing against axial and radial movement with a grease nipple. The desired radial clearance can be set with an adjusting screw during the mounting.
