MÄDLERMÄDLER
Manufacturer part no. 64672000
| Item | €158.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €34.75 |
| Total delivered | €208.49 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 225 g |
| For shaft diameter | 20 mm |
| Height | 50 mm |
| Length | 45 mm |
| Load rating dynamic | 2 000 N |
| Static load rating | 1 370 N |
| Width | 60 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |

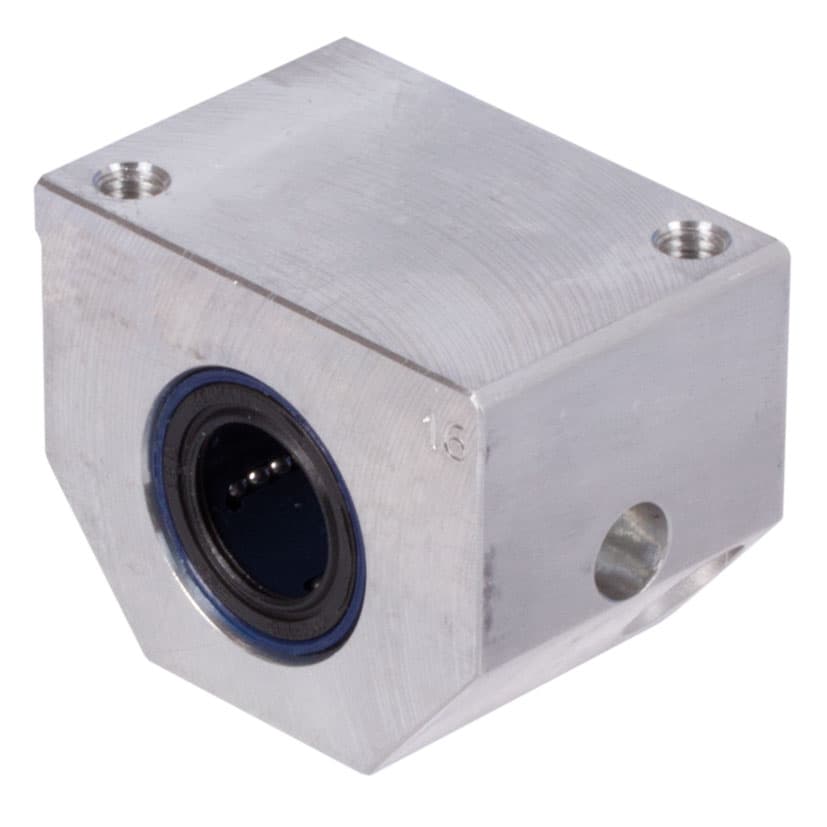

Material: Housing made from extruded aluminium with a closed linear bearing of the ISO Series 3 from premium brand in top quality, with self-aligning capability that accommodates tilting. Lubricated ready-to-install.Recommended shaft tolerance h6. Spare linear bearing (that accommodates tilting) on request. * when mounting from the bottom side choose the next smaller screw size.
