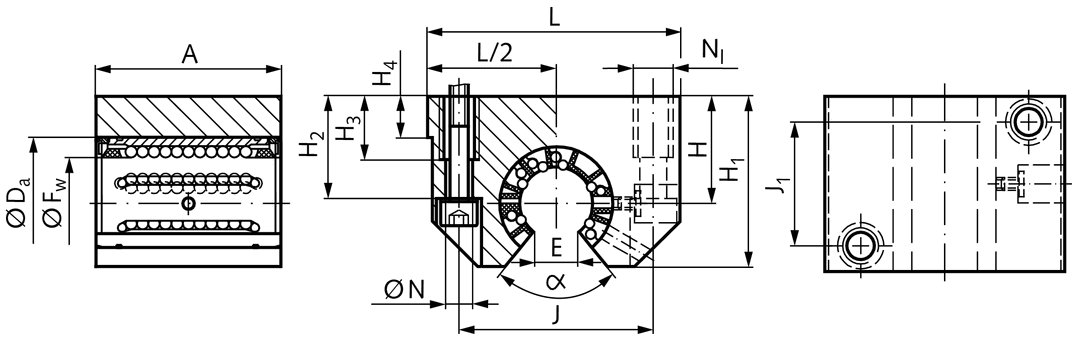

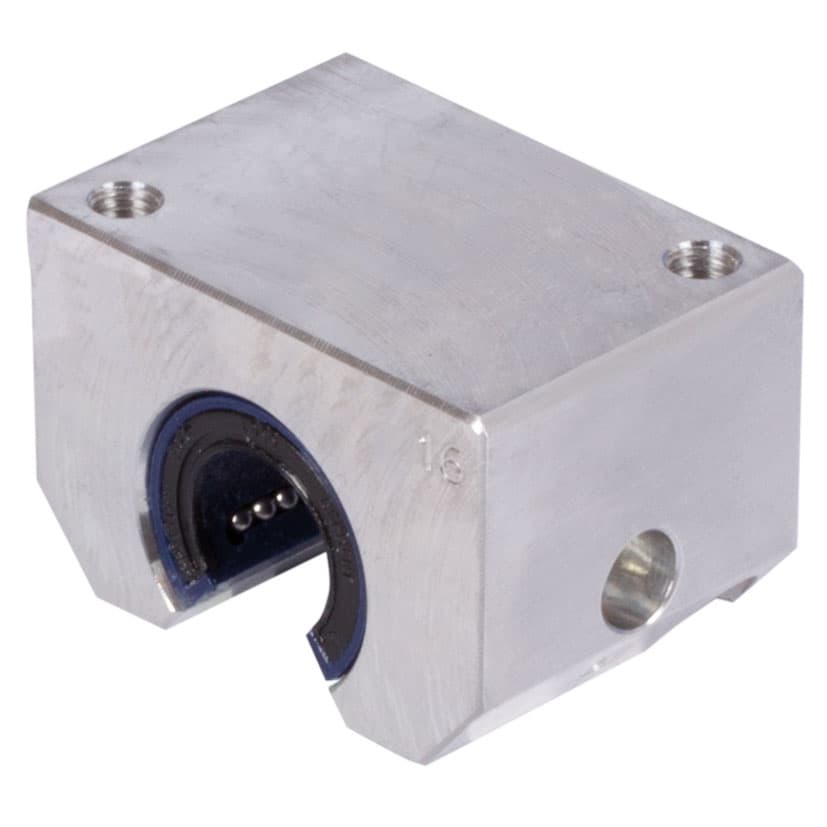

Open linear bearing unit KG-3-O ISO series 3 premium with open linear ball bearing with angular compensation with double rubber seal for shaft Ø 20mm
Manufacturer part no. 64672001
$219.34≈ 190.48 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €190.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €41.10 |
| Total delivered | €246.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 215 g |
Other characteristics
| For shaft diameter | 20 mm |
| Height | 42 mm |
| Length | 45 mm |
| Load rating dynamic | 2 000 N |
| Static load rating | 1 370 N |
| Width | 60 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3 from premium brand in top quality, with self-aligning capability that accommodates tilting, adjustable clearance and double-lip seals . Lubricated ready-to-install.Recommended shaft tolerance h6. Spare linear bearing (that accommodates tilting) on request. * when mounting from the bottom side choose the next smaller screw size.
