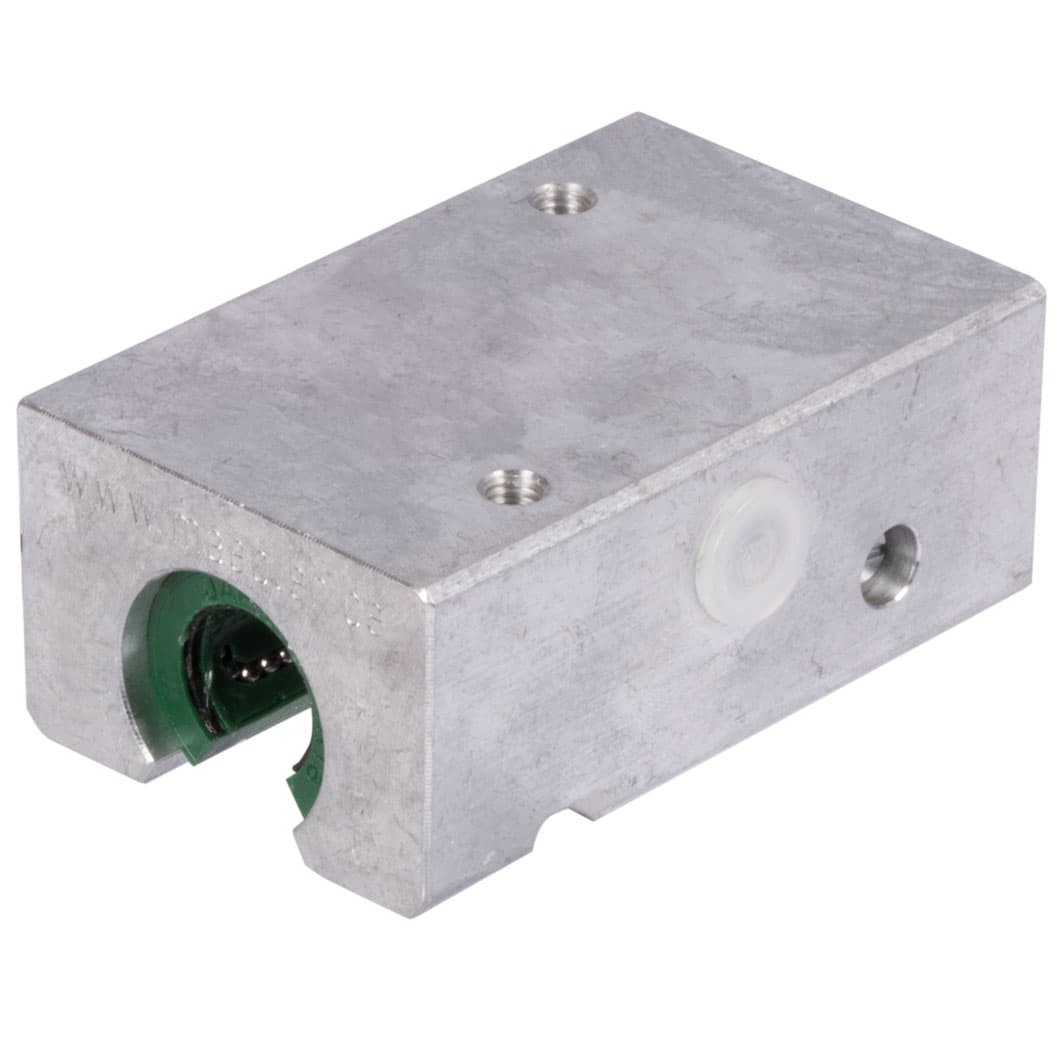

Tandem linear bearing unit KGT-3-O ISO series 3 Easy-Line with linear ball bearings with angular compensation with seals for shaft Ø 12mm open design
Manufacturer part no. 64681203
$228.67≈ 198.58 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €198.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €42.72 |
| Total delivered | €256.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

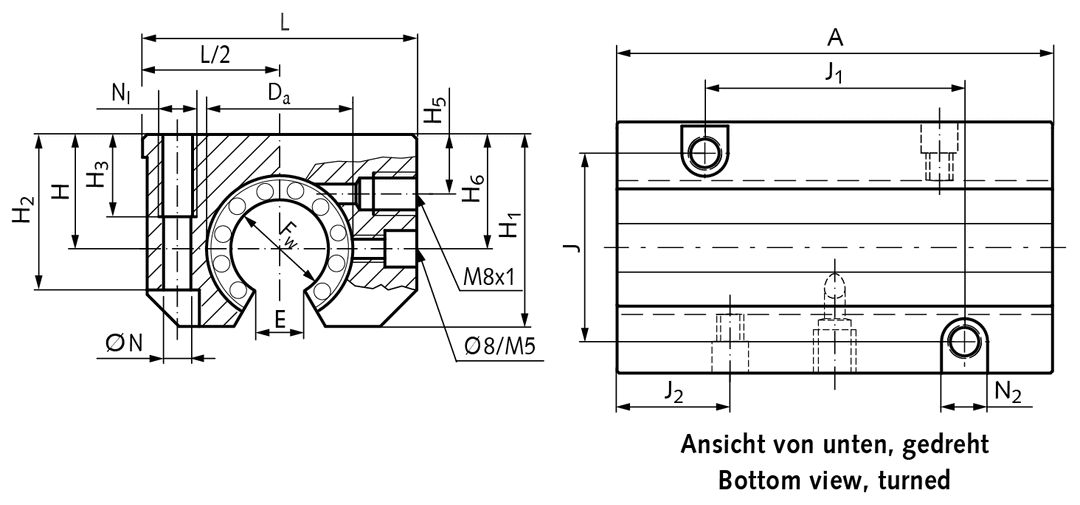

Specifications (automatically extracted)
Mechanical
| Weight | 210 g |
Other characteristics
| For shaft diameter | 12 mm |
| Height | 30 mm |
| Length | 76 mm |
| Load rating dynamic | 1 660 N |
| Static load rating | 2 580 N |
| Width | 43 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Material: Housing made from extruded aluminium with two open linear bearings of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
