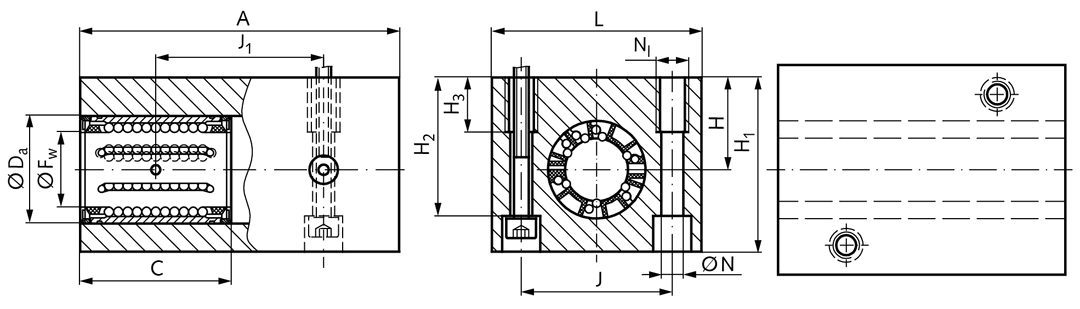

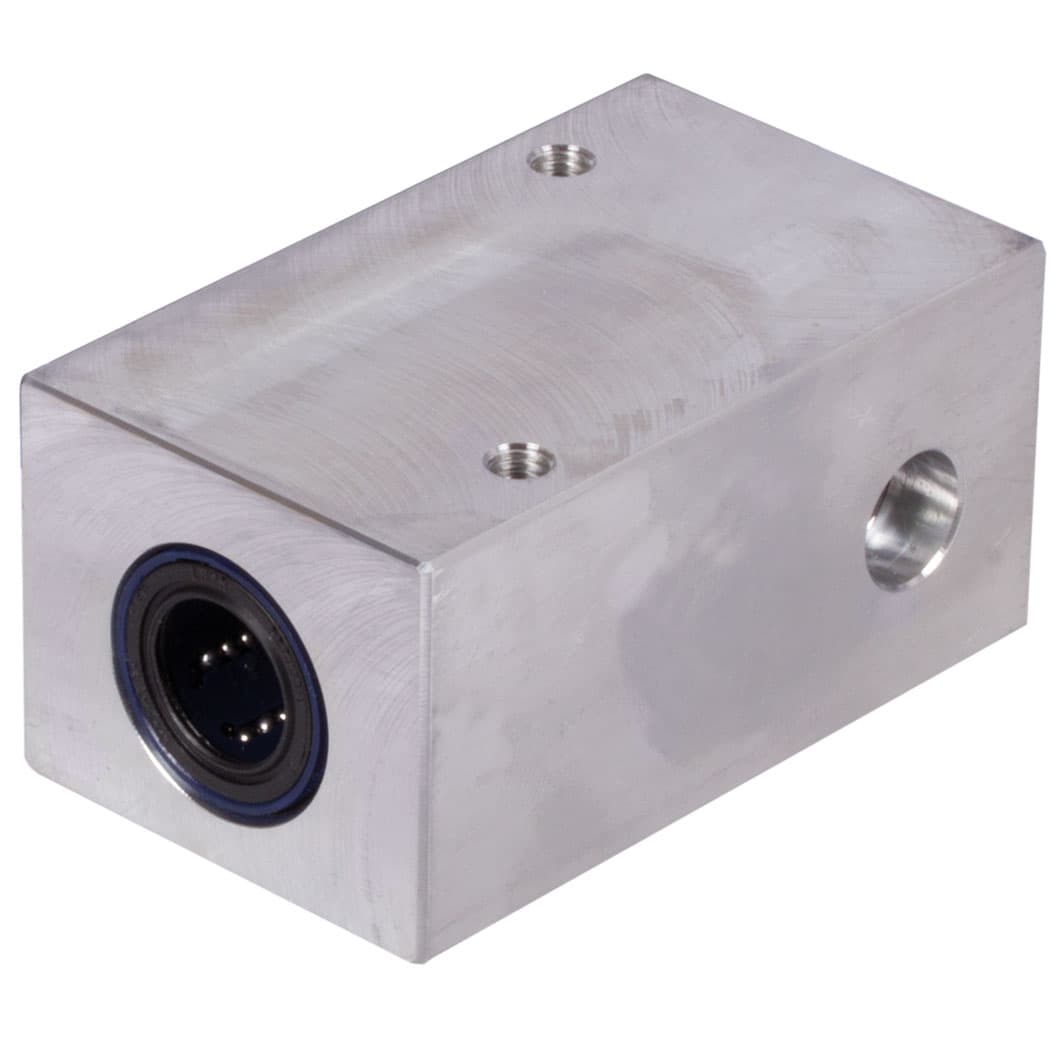

Tandem linear-bearing unit KGT-3 ISO series 3 premium with linear ball bearings with angular compensation with double rubber seal for shaft Ø 16mm
Manufacturer part no. 64681600
$314.83≈ 273.41 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €273.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €57.68 |
| Total delivered | €346.09 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 372 g |
Other characteristics
| For shaft diameter | 16 mm |
| Height | 41.5 mm |
| Length | 84 mm |
| Load rating dynamic | 2 160 N |
| Static load rating | 1 730 N |
| Width | 50 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with two closed linear bearings of the ISO Series 3 from premium brand in top quality, with self-aligning capability that accommodates tilting and double-lip seals. Lubricated ready-to-install. Recommended shaft tolerance h6. Spare linear bearing (that accommodates tilting) on request. * when mounting from the bottom side choose the next smaller screw size.
