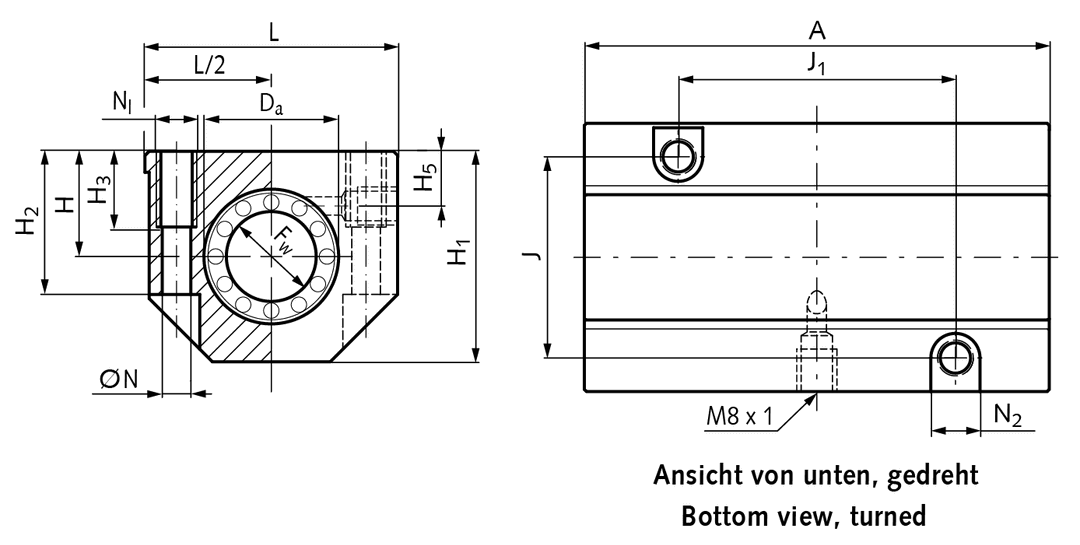

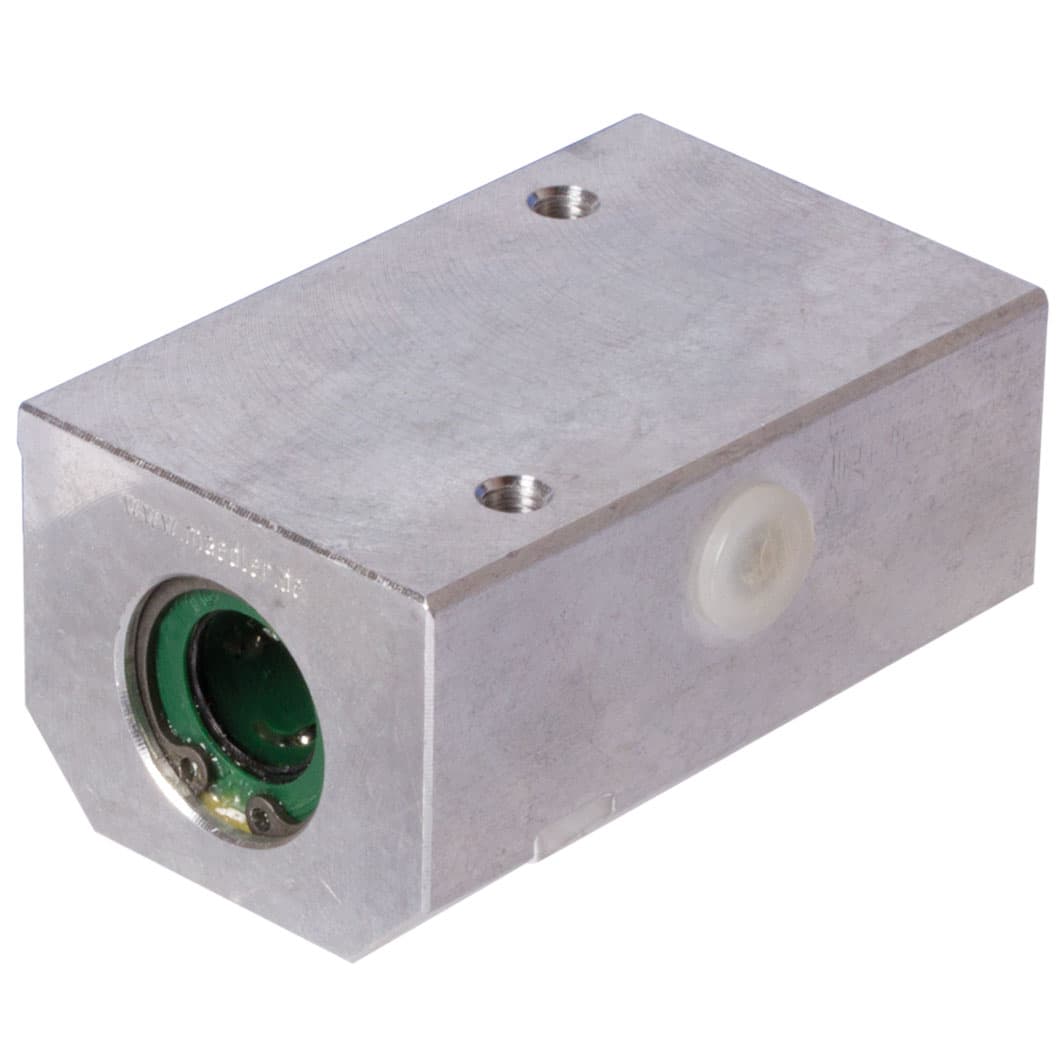

Tandem linear bearing unit KGT-3 ISO series 3 Easy-Line with linear ball bearings with angular compensation with seals for shaft Ø 30mm
Manufacturer part no. 64683002
$427.94≈ 371.64 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €371.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €77.33 |
| Total delivered | €463.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.97 kg |
Other characteristics
| For shaft diameter | 30 mm |
| Height | 70 mm |
| Length | 152 mm |
| Load rating dynamic | 7 263 N |
| Static load rating | 9 302 N |
| Width | 87 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Material: Housing made from extruded aluminium with two closed linear bearings of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
