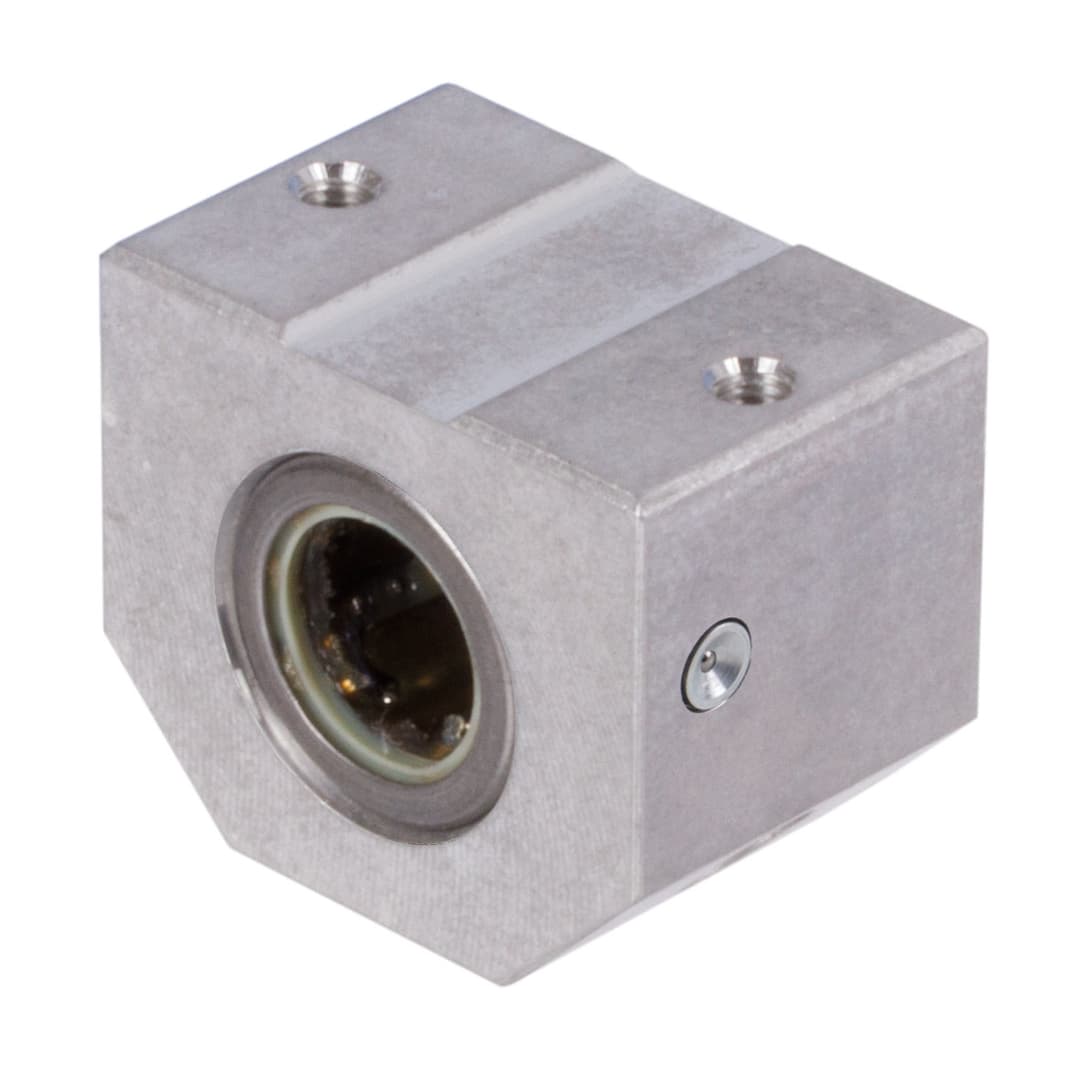

Linear bearing unit KG-1-ST ISO series 1 with linear ball bearing KB-1-ST with with seals for shaft Ø 50mm
Manufacturer part no. 64685050
$150.13≈ 130.38 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €130.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.08 |
| Total delivered | €174.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.29 kg |
Other characteristics
| For shaft diameter | 50 mm |
| Height | 92 mm |
| Length | 70 mm |
| Load rating dynamic | 5 500 N |
| Static load rating | 6 300 N |
| Width | 103 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with a compact linear bearing of the ISO Series 1 with steel jacket, in high quality. With integral double-lip seal. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
