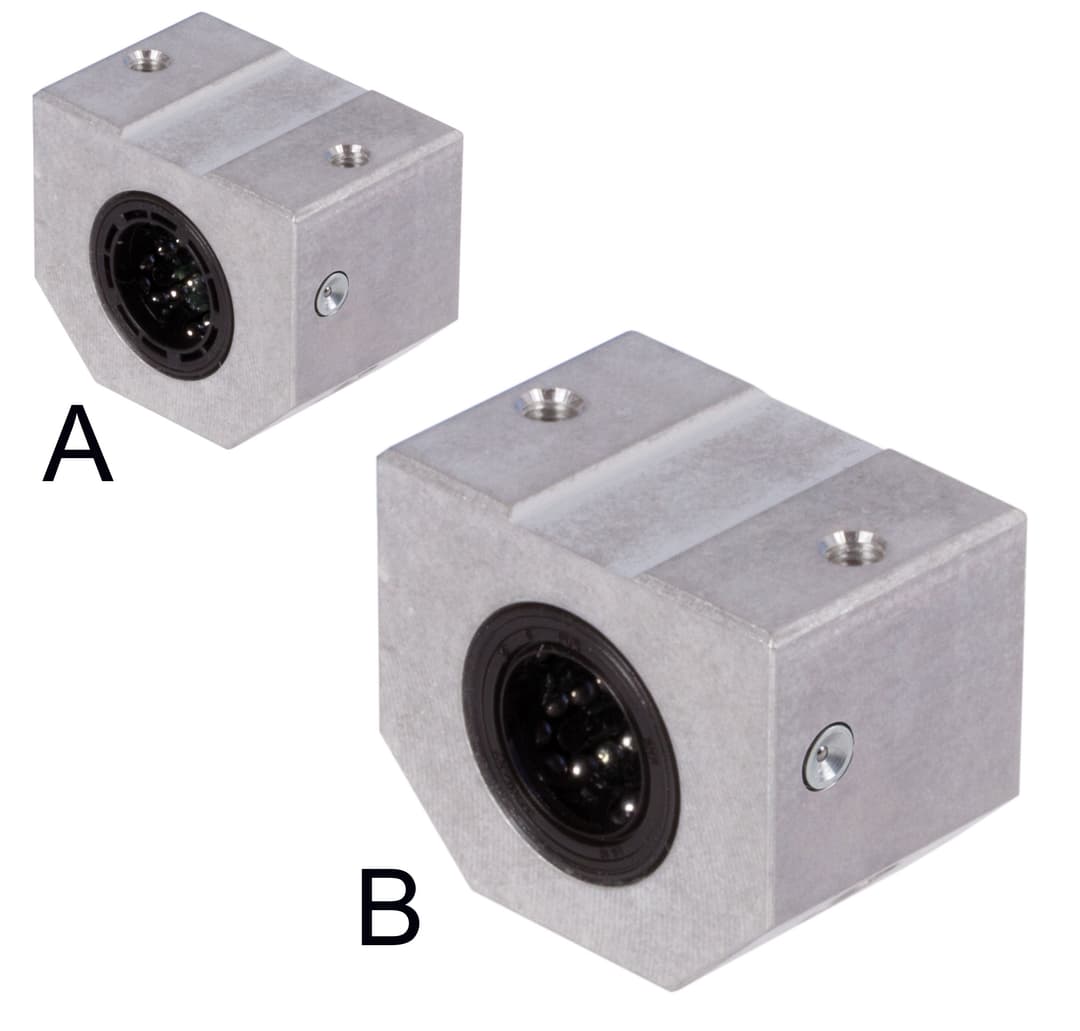

Linear ball bearing unit KG-1 ISO series 1 premium with double rubber seals for shaft diameter 50mm stainless
Manufacturer part no. 64699650
$295.56≈ 256.67 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €256.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €54.33 |
| Total delivered | €326.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.19 kg |
Other characteristics

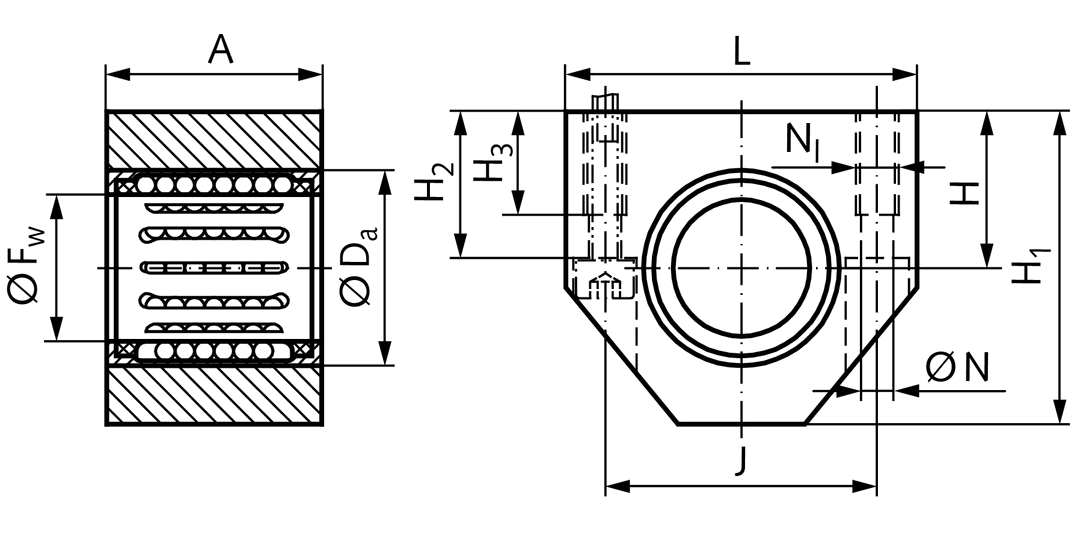

| Bushing diameter | 62 mm |
| Center distance from holes | 82 mm |
| Center distance from middle axis to support surf | 47 mm |
| For shaft diameter | 50 mm |
| Height | 92 mm |
| Length | 103 mm |
| Load rating dynamic | 5 699 N |
| Static load rating | 5 796 N |
| Width | 70 mm |
| Material | Aluminum |
| Surface | Blank |
| Version | B |
Description
Material: Housing made of extruded aluminium with a stainless steel linear bearing of the ISO Series 1 from premium brand in top quality. Either with integral double-lip seal or with shields. Lubricated ready-to-install. Recommended shaft tolerance h6. * when mounting from the bottom side choose the next smaller screw size. A = with shields. B = with seals.
