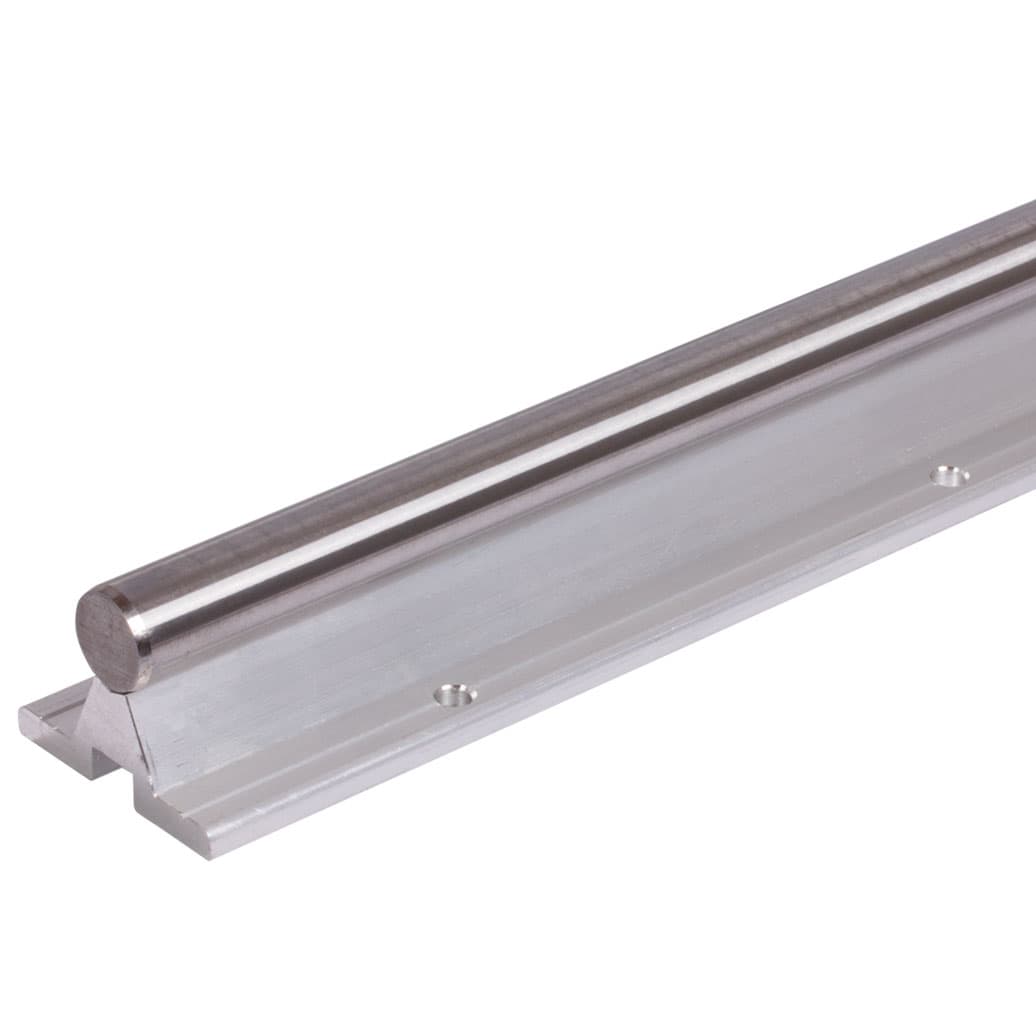

Precision shaft steel with shaft support Ø 30h6 x 600mm long
Manufacturer part no. 64743003
$156.85≈ 136.21 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €136.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €30.24 |
| Total delivered | €181.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.84 kg |
Other characteristics
| Length | 600 mm |
| Shaft diameter | 30 mm |
| Width | 69 mm |
| Bolts din 912 | M 10 x 30 |
| Material | Steel (1055) |
| Surface | Ground finish |
Description

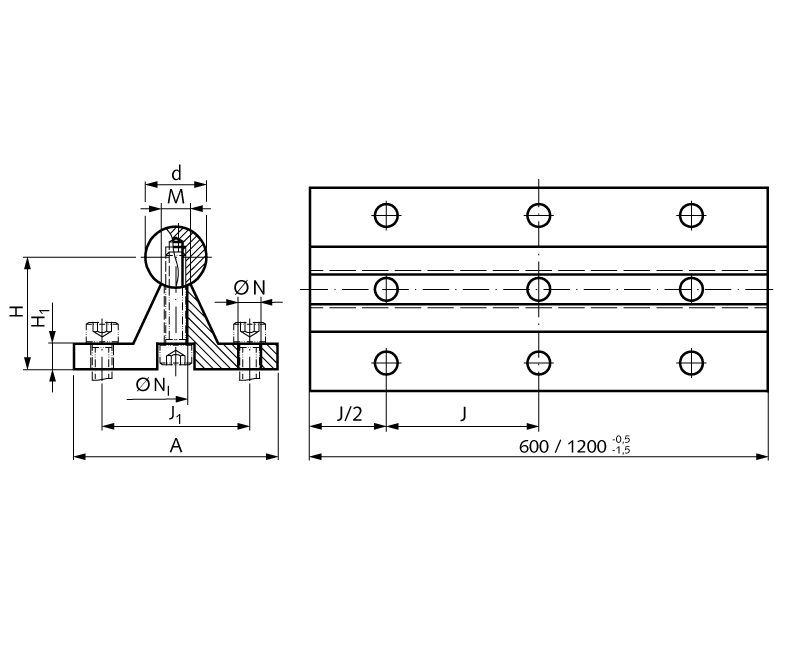

Material: Steel 1.1213 (Cf53), hardened and ground, hardness 62±2 HRC, diameter tolerance ISO h6. Material support: Extruded aluminium. Length: Either 600 mm or 1200 mm. Ready-to-use, mounted, supported linear shafts to be used with open linear bearings or open linear bearing units. The shafts are supported over their entire length. The shaft supports have mounting holes for mounting them on a base plate. Unit can be shortened by the customer using an angle grinder. Longer versions on request.
