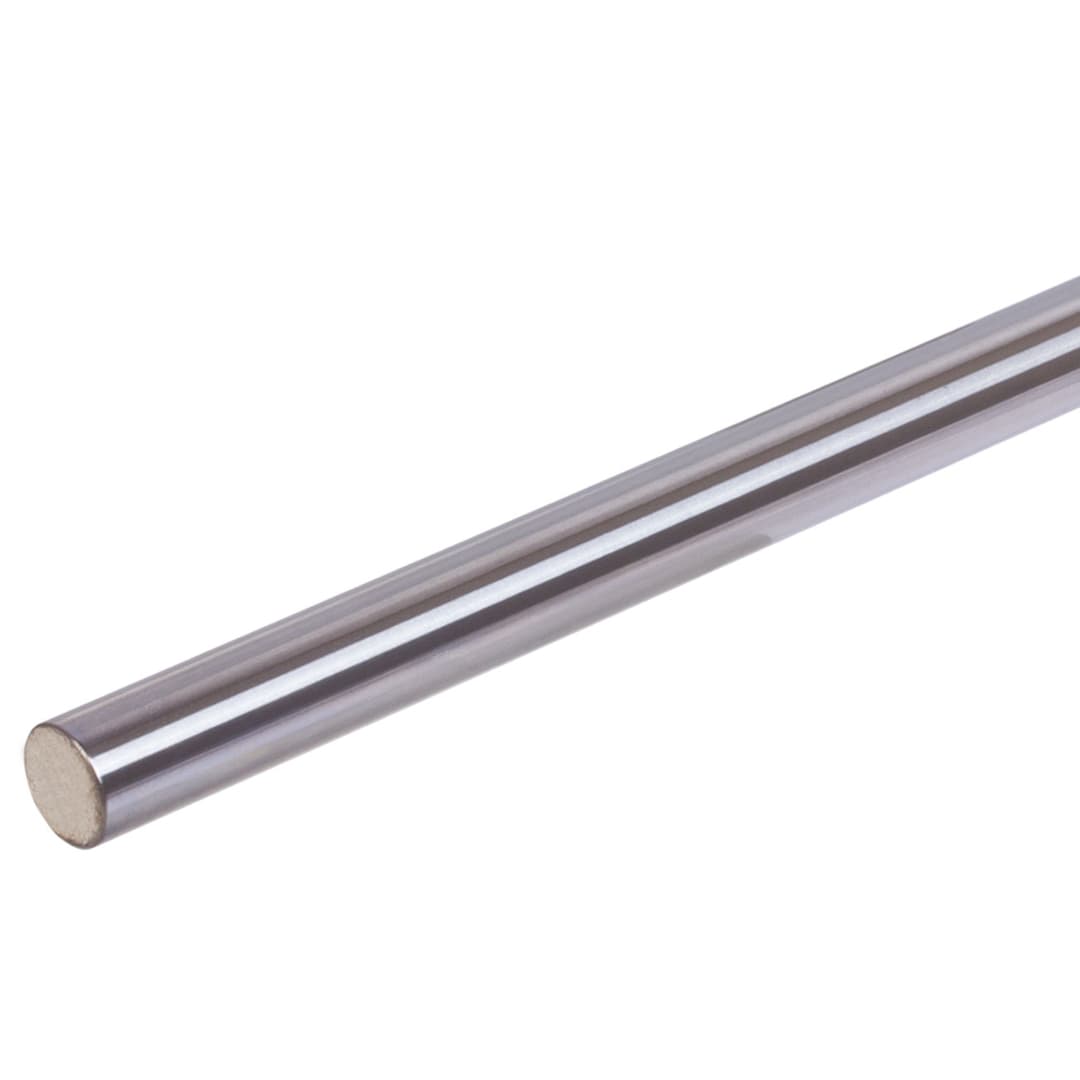

Precision steel shafts CF53 Cr hardened min. 59 HRC and ground diameter 40h7 x 1000mm long chromated cutting surface marked with white paint
Manufacturer part no. 64764000
$233.76≈ 203.00 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €203.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €43.60 |
| Total delivered | €261.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 9.864 kg |
Other characteristics
| Depth of hardness min. | 1.5 mm |
| Length | 1 000 mm |
| Shaft diameter | 40 mm |
| Material | Steel (1055) |
| Surface | Chromated, ground finish |
Description
Material: Steel 1.1213 (CF53), hardness min. 59 HRC, chrome plated 10 µm. Chrome-hardness min. 800 HV, without CR(VI), suitable for food and medical industry. Diameter tolerance: ISO h7.Dimension-stable up to +120°C.In lengths of 1 m and 2 m available ex stock. Fixed lengths can be delivered on request.
