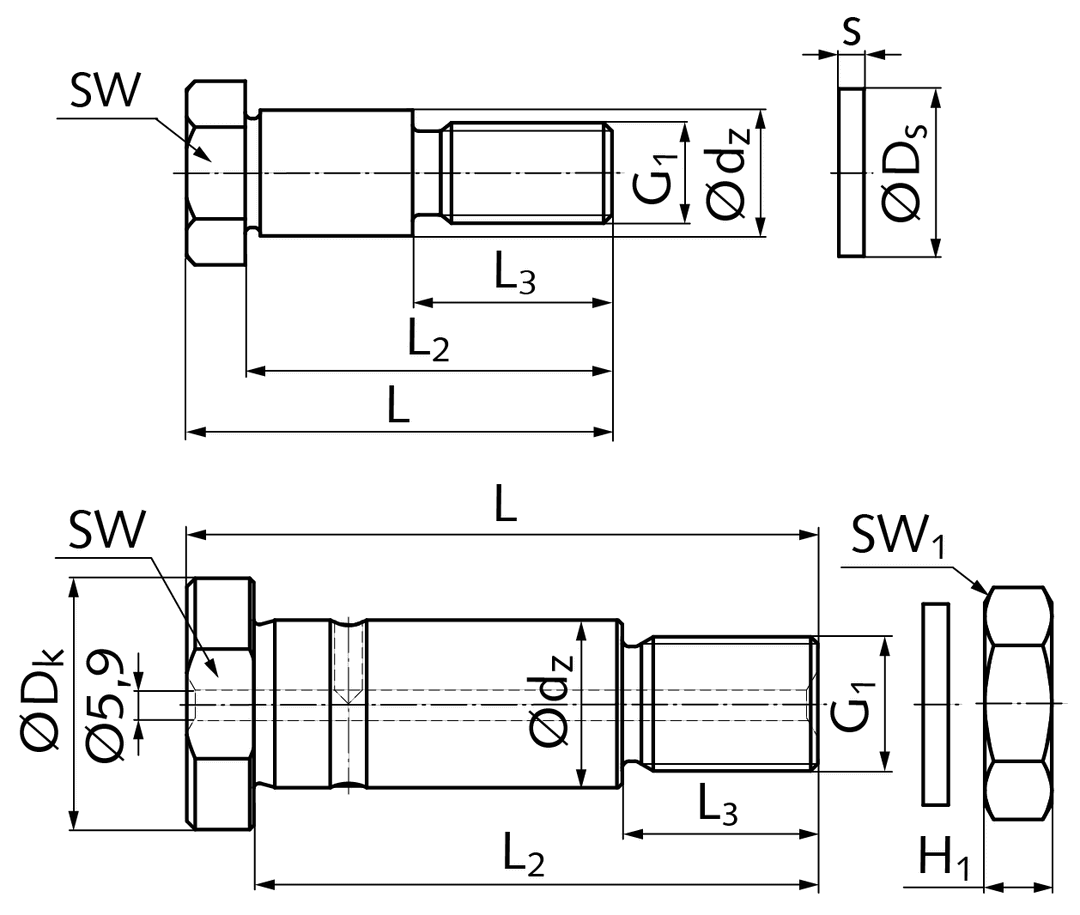

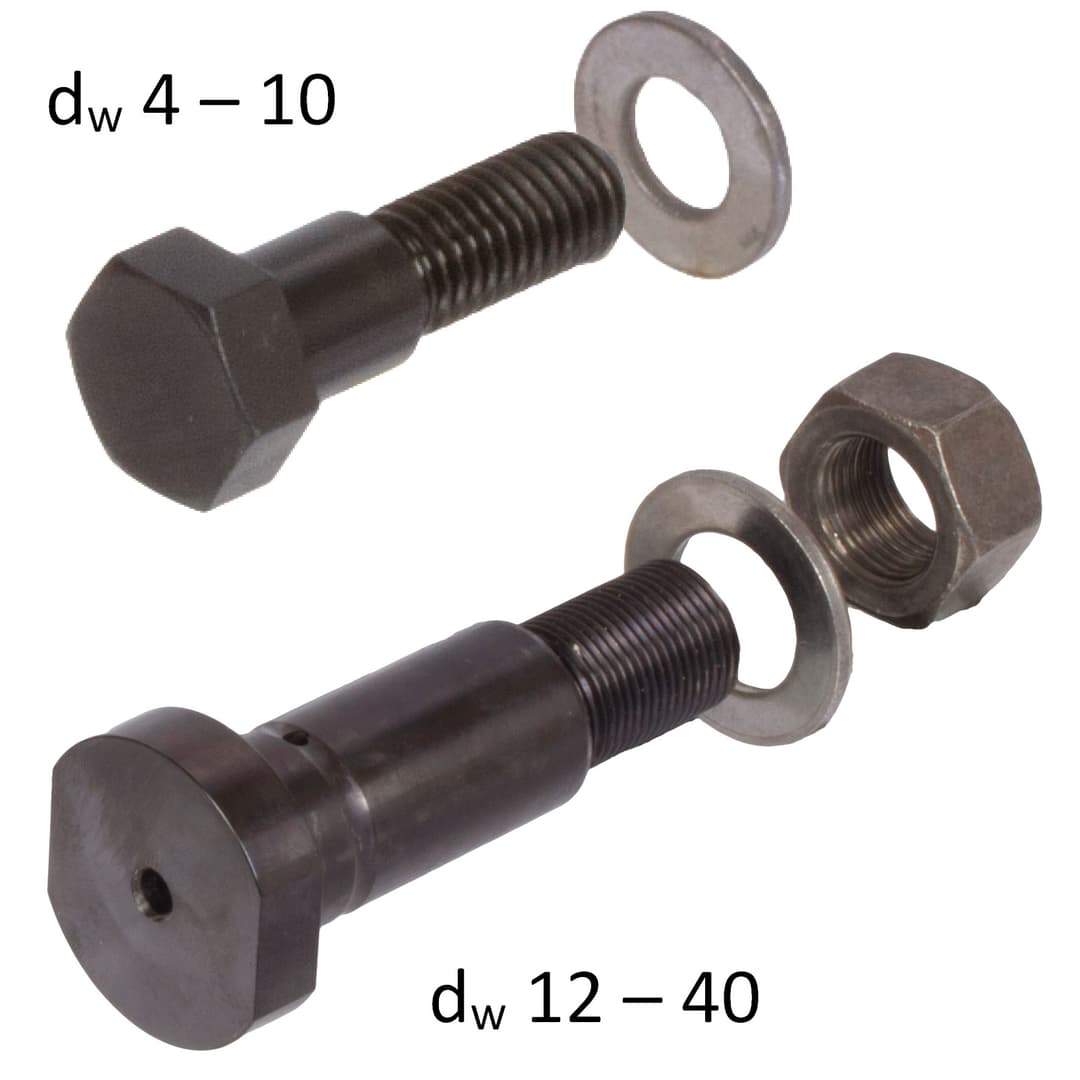

Centric bolt LFZ12/M12 dw 10mm bolt diameter 12mm length 50.8mm
Manufacturer part no. 64780305
$13.01≈ 11.30 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €11.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.26 |
| Total delivered | €31.56 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 50 g |
Other characteristics
| Material | Tempered steel |
| Surface | Black oxide finish |
| Type | LFZ12/M12 |
Description
Material: Heat-treated steel, black oxide finish. • Centric bolt for mounting profil track rollers on fixed position. • Normally, a carriage has four rollers: On one side two rollers with centric bolts on fixed position. On the other side two rollers on eccentric bolts, so that they can get adjusted clearance-free. • The assignment of the bolt to the profil track roller is made by the linear shaft diameter dw and the bolt diameter dz. • Included in scope of delivery, there is a distance washer for release mount of the track roller, for turn without binding (from LFZ8).
